Bolts 1/4 x 6 Hx Lag Blt SS (Box 50)
Additional Notes
- Other sizes and quantities available by request
Features

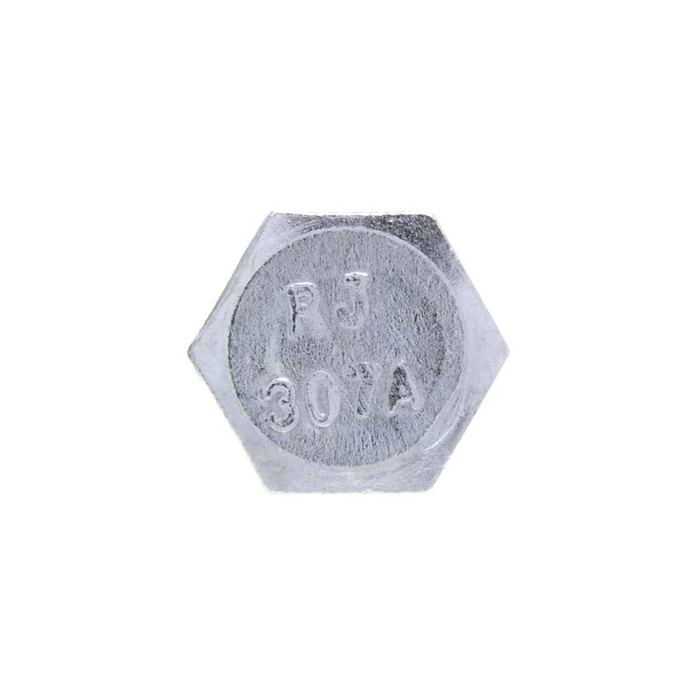

- A full-bodied boltwith hex head, spaced threads and a gimlet point
- Has superior corrossion resistance to galvanized steel bolts
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- 15/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 6
- Fastener Width:
- 0.484 - 0.505
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Grade:
- 2
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.237 - 0.260 IN
- Pack Type:
- Box
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 3.45 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 125000 psi (Approximate) minimum
- Thread Per Inch:
- 10
- Washer Od:
- 0.094 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Lag Bolt
- Type2:
- Hexagonal Lag Bolt
- Series:
- BLS and JBLS
- Product Details:
- Hexagonal Lag Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics BLS10SS – Frequently Asked Questions
1) What size and material is the Metallics BLS10SS lag bolt?
It's a 1/4 inch diameter by 6 inch long hex head lag bolt in 18-8 stainless steel, sold 50 to a box. Thread count is 10 threads per inch, and the measured shank diameter runs 0.237 to 0.260 inch.
2) Will the BLS10SS lag bolt meet a Buy American or ARRA requirement on a public job?
Metallics lists the BLS10SS as both ARRA compliant and Buy American compliant. Country of origin is recorded as multiple, so if your specification demands a single named origin, confirm the origin on the lot you receive.
3) What wrench or socket size do I need to drive a 1/4 x 6 stainless lag bolt?
The hex head measures 0.425 to 0.438 inch across the flats, so a 7/16 inch socket or wrench is the fit. Head height is 15/64 inch, which matters if you're driving into a recess or behind a strut flange.
4) Does this stainless lag bolt need a pilot hole, and how much does it hold?
It's a full-bodied bolt with spaced threads and a gimlet point, so it draws itself into wood once started, though a pilot hole is standard practice in dense lumber at 1/4 inch diameter. Tensile strength is roughly 100,000 to 125,000 psi minimum with hardness at Rockwell B95-C32, and it's a Grade 2 fastener.
5) Does the 1/4 x 6 Metallics lag bolt conform to a dimensional standard for spec submittals?
Head and thread dimensions follow ASME B18.2.1-1996, and the steel standard referenced is AISI 1006 to 1022. Those are the two lines a submittal reviewer usually wants on a fastener schedule.
6) How are these lag bolts packaged and what is the minimum I can order?
They ship in a box of 50 pieces, and 50 each is the order minimum. Box weight is listed at 3.45 lbs.
7) I need a different length or diameter stainless lag bolt than 1/4 x 6. What are my options?
The BLS and JBLS series covers other sizes and quantities by request, so a shorter or heavier stainless lag in the same family can be sourced rather than substituting a galvanized bolt and giving up the corrosion resistance.
