Metallics JBHC56 Bolts 3/4-10 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$54.60
$5.79

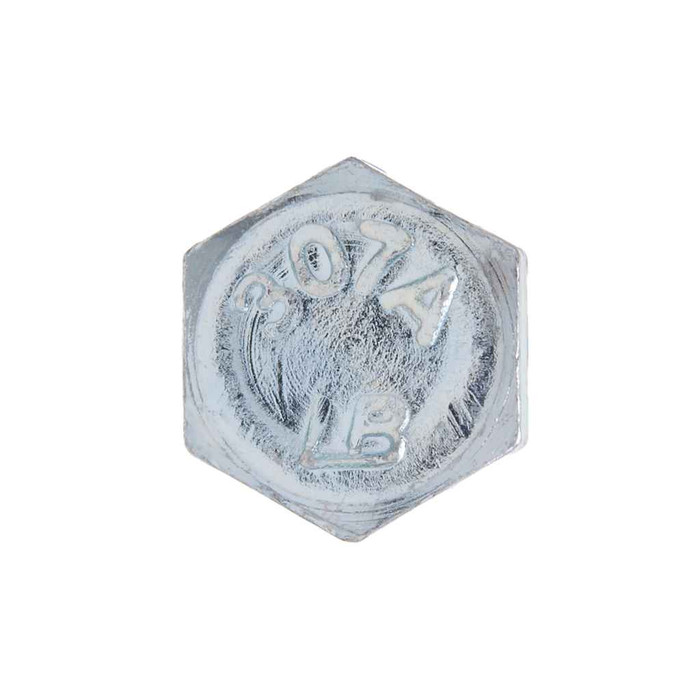

Metallics JBHC56 Bolts 3/4-10 X 1-3/4 Hxbt St-zn (Jar 25)

Metallics JBHC56 Bolts 3/4-10 X 1-3/4 Hxbt St-zn (Jar 25)

(No reviews yet) Write a Review

Model: JBHC56
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$54.60
$5.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 3/4-10 X 1-3/4 Hxbt St-zn (Jar 25)

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Fastener Head Height:
2-Jan in.
Fastener Head Type:
Hex
Fastener Head Width:
1.088 - 1.125 in.
Fastener Height:
0.455 - 0.524
Fastener Length:
1/3/04
Fastener Width:
1.240 - 1.299
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_St-Zn_Galv.pdf
Order Minimum Imperial:
25
Order Minimum Uom Imperial:
EA
Outside Diameter:
0.729 - 0.768 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
8.15 lbs
Product Width:
4.5 in
Sub Division:
Electrical-E H2
Thread Per Inch:
10
Thread Standard:
ASME B18.2.1-1996
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
BHC and JBHC
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JBHC56 – Frequently Asked Questions

1) What thread does the Metallics JBHC56 hex bolt take, and will a standard 3/4 inch nut fit it?
The JBHC56 is a 3/4-10 hex bolt, so 10 threads per inch, which is the standard UNC coarse pitch for 3/4 inch diameter. Any 3/4-10 coarse nut or tapped hole mates with it. Threads are made to ASME B18.2.1-1996, so dimensions interchange with other bolts built to that standard.
2) How many bolts come in the Metallics JBHC56 pack and can I buy fewer?
They ship in a jar of 25, and 25 each is the order minimum, so a single jar is the smallest buy. The whole jar weighs 8.15 lbs. If you need a different count, other quantities in the BHC and JBHC series are available by request.
3) Do these bolts qualify for a federally funded job with Buy American requirements?
The JBHC56 hex bolt is flagged compliant for both Buy American and ARRA. Country of origin is listed as multiple, so if your specification requires a single documented source country, request the mill paperwork for the lot you are buying.
4) Are these Metallics hex bolts corrosion protected enough for outdoor or damp use?
They are steel with a zinc finish. Zinc plating handles general indoor and sheltered exterior service, light moisture, and normal MRO work. For constant wet exposure, coastal salt air, or direct ground contact, step up to a hot dip galvanized or stainless bolt instead.
5) Are these electrical hex bolts different from structural bolts for steel connections?
The JBHC56 is a general purpose zinc plated steel hex bolt built to the ASME B18.2.1 dimensional standard, the kind used for strut, enclosures, equipment mounting, and general MRO anchoring. It is not sold against a structural bolting specification, so for a slip critical or bolted moment connection on a drawing use a bolt ordered to that structural spec instead.
6) Do nuts and washers come with the Metallics JBHC56 bolts?
No. The jar of 25 contains the 3/4-10 x 1-3/4 hex bolts only. Order 3/4-10 coarse hex nuts and 3/4 inch washers separately, in a matching zinc finish so you are not mixing coatings in the same joint.
