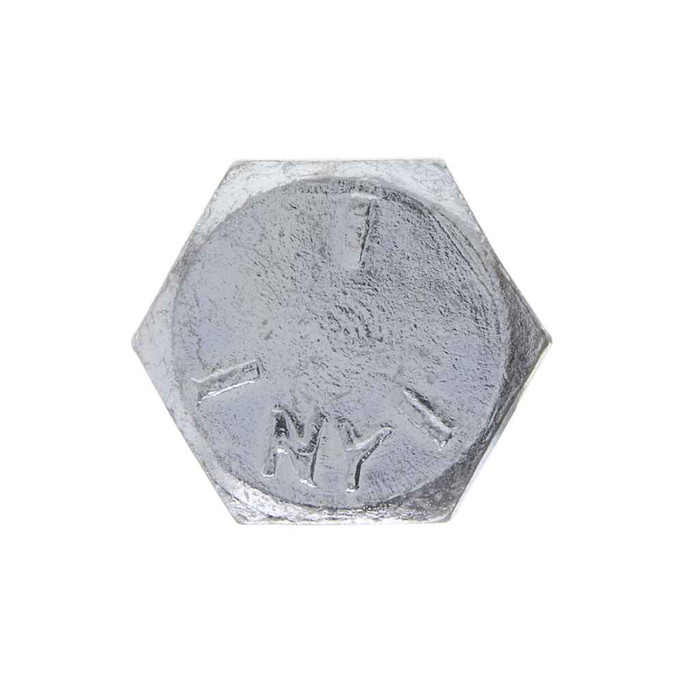

Bolts 3/4-10 X 1 G5 Hxbt St-zn (Box 100)
Features
- Used to mount motor to machinery. Also popular in automotive and truck repair
- A cap screw made from medium carbon steel and heat-treated
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- United States
- Division:
- Electrical H1
- Fastener Head Height:
- 15/32 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 1.100 - 1.125 in.
- Fastener Height:
- 0.455 - 0.483
- Fastener Length:
- 1
- Fastener Width:
- 1.254 - 1.299
- Grade:
- 5
- Hardness:
- Rockwell C25-34
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.7410 - 0.7500 IN
- Pack Type:
- Box
- Product Group:
- Fasteners
- Remarks:
- The catalog UPC differ from the tarnsaction daat spreadsheet UPC
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 120000 psi minimum
- Thread Per Inch:
- 10
- Thread Standard:
- ASME B18.2.1-2012
- Wrenching Height:
- 0.324
- Yield Strength:
- 92000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HC and JG5HC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics G5HC77D – Frequently Asked Questions
1) What thread and size is the Metallics G5HC77D hex bolt, and what nut does it take?
It's a 3/4-10 bolt: 3/4 inch nominal diameter with 10 threads per inch, which is standard UNC coarse thread for that diameter. Measured shank diameter runs 0.7410 to 0.7500 inch. Any 3/4-10 UNC nut or tapped hole will mate with it. Threads are made to ASME B18.2.1-2012.
2) How thick a part can a 3/4-10 x 1 inch Grade 5 hex bolt actually clamp?
The bolt is only 1 inch long under the head, so total grip (material plus washers plus nut engagement) has to stay inside that. On a 3/4-10 bolt a short length like this is typically threaded full length, so it is best suited to tapped holes or thin flange-to-flange joints. If you are stacking a bracket plus washers plus a nut, step up to a longer length.
3) Is a Grade 5 bolt strong enough for mounting a motor to a machine base?
Grade 5 is the common medium-carbon, heat-treated structural fastener grade and it is what this bolt is made for, including motor-to-machinery mounting and automotive or truck repair work. It carries 120,000 psi minimum tensile and 92,000 psi minimum yield, with hardness at Rockwell C25-34. For higher-stress or fatigue-critical joints, specify Grade 8 instead.
4) Do these Metallics hex bolts qualify for a Buy American or ARRA funded project?
No. The G5HC77D is flagged not Buy American compliant and not ARRA compliant, even though country of origin is listed as the United States. If your contract carries a domestic-preference clause, get a fastener specifically certified to it rather than relying on this one.
5) What wrench or socket size fits the head on the Metallics G5HC hex bolt?
Across-flats head width measures 1.100 to 1.125 inch, so a 1-1/8 inch wrench or socket is the size to grab. Head height is 15/32 inch, with 0.324 inch of wrenching height, so a standard hex socket gets full purchase without bottoming on the flange.
6) Can these zinc plated steel bolts be used outdoors or in a wet area?
Finish is zinc plating over steel, which handles indoor industrial and sheltered conditions and gives moderate corrosion resistance. Zinc plating is sacrificial and will eventually rust in standing water, salt spray or washdown service, so for exterior or corrosive duty use hot dip galvanized or stainless fasteners instead.
7) How many bolts come in a box of Metallics G5HC77D, and is there an order minimum?
They ship as a box of 100, and 100 count is the order minimum, so the box is the smallest buying unit. Metallics notes other sizes and quantities are available by request if 3/4-10 x 1 is not the length you need.
8) What steel is used in the Metallics G5HC Grade 5 hex bolt?
Material is carbon steel to AISI 1008-1026, heat treated as a cap screw. That is what puts it in the Grade 5 strength class at Rockwell C25-34. It is not a stainless or alloy bolt, so do not substitute it where a corrosion-resistant or Grade 8 alloy fastener is specified.
How fast can I get the Metallics G5HC77D delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics G5HC77D come with a warranty?
Absolutely. The Metallics G5HC77D is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Metallics G5HC77D?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
