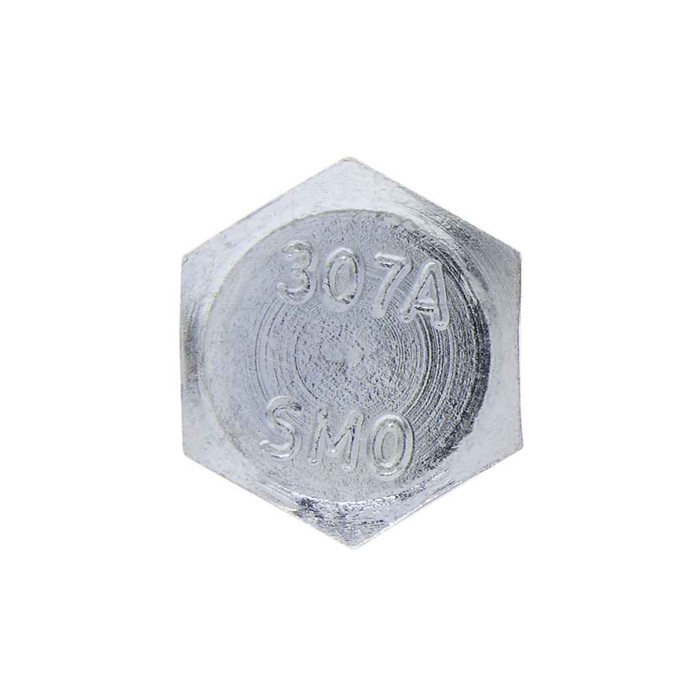

Bolts 3/4-10 x 3 HXBT Pln-St (Box 50)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 2-Jan in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 1.088 - 1.125 in.
- Fastener Height:
- 0.455 - 0.524
- Fastener Length:
- 3
- Fastener Width:
- 1.240 - 1.299
- Language Code:
- EN
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.729 - 0.768 IN
- Pack Type:
- Box
- Product Group:
- Fasteners
- Product Height:
- 6 in
- Product Length:
- 7.25 in
- Product Weight:
- 23.6 lbs
- Product Width:
- 6.25 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 10
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Plain
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics BHC81PL – Frequently Asked Questions
1) What thread size and length are the Metallics BHC81PL hex bolts?
They're 3/4-10 hex bolts, 3 inches long. The thread is 10 threads per inch (3/4 inch UNC coarse), and the shank outside diameter measures 0.729 to 0.768 inch. Thread form follows ASME B18.2.1-1996, so they mate with any standard 3/4-10 nut or tapped hole.
2) Are the Metallics BHC81PL bolts coated or galvanized for outdoor use?
No. These are plain steel, meaning no plating or galvanizing, so they'll rust in wet or exposed conditions. Use them dry and indoors, or on anything exposed go with a hot-dip galvanized or stainless 3/4-10 bolt instead.
3) Can I buy the BHC81PL 3/4-10 bolts individually or do I have to take the whole box?
They ship as a box of 50 with a 50-count order minimum, so the box is the smallest purchase. Other sizes and quantities can be arranged by request.
4) How heavy is a box of 50 of the Metallics BHC81PL bolts?
A full box runs 23.6 lbs, so it's a one-hand carry but worth noting if you're staging several boxes on a lift or shipping to a jobsite by the pallet.
5) Are these hex bolts suitable for electrical equipment and strut mounting work?
Yes, the BHC81PL is a plain steel hex bolt sold as electrical supply hardware, the kind used for bolting equipment frames, transformer pads, busbar supports and heavy strut connections. At 3/4-10 it's for the heavy end of that work, not for small device boxes.
