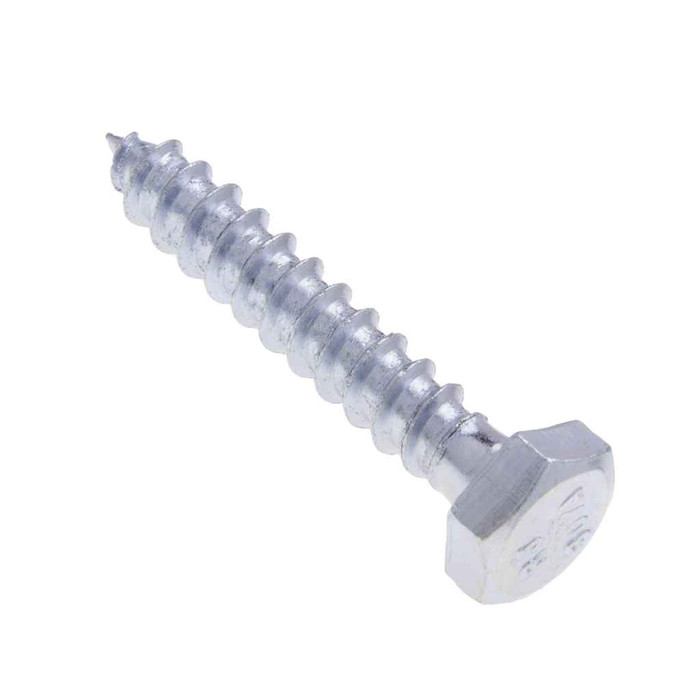

Bolts 3/4 x 5 Hx Lag Blt St-zn (Jar 10)
Additional Notes
- Other sizes and quantities available by request
Features
- For use in wood in non-corrosive enviroments
- A full-bodied boltwith hex head, spaced threads and a gimlet point
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- 2-Jan in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 1.088 - 1.125 in.
- Fastener Height:
- 0.455 - 0.524
- Fastener Length:
- 5
- Fastener Width:
- 1.240 - 1.299
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 25
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.729 - 0.768 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 13.01 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Washer Od:
- 0.375 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBLS17 – Frequently Asked Questions
1) Can the Metallics JBLS17 3/4 x 5 hex lag bolt be used outdoors or in a corrosive environment?
No. The JBLS17 is a zinc plated steel lag bolt intended for use in wood in non-corrosive environments. Zinc plating handles dry, sheltered interior work and incidental moisture, but for salt air, treated lumber in wet service, or chemical exposure you want hot dip galvanized or stainless instead.
2) What size pilot hole and wrench do I need for a 3/4 inch Metallics lag bolt?
The JBLS17 shank measures 0.729 to 0.768 inch outside diameter, so it is a nominal 3/4 inch lag with a gimlet point, 5 inches long. The hex head measures 1.088 to 1.125 inch across the flats, which is a 1-1/8 inch wrench or socket. Pilot drilling is required at this diameter in solid wood.
3) Is the Metallics JBLS17 lag bolt a machine bolt I can run a nut onto?
No, it is not. The JBLS17 is a full-bodied hex lag bolt with spaced wood threads and a gimlet point, so it threads directly into wood and takes no nut. If you need a through-bolted connection with a nut and washer, use a hex machine bolt or carriage bolt instead.
4) What are the strength and hardness specs on the Metallics 3/4 x 5 zinc lag bolt?
Minimum tensile strength is 60,000 psi and hardness runs Rockwell B70 to B100. The steel is AISI 1006 through 1022 and the bolt is made to the ASME B18.2.1-1996 dimensional standard, which is what a spec reviewer will want to see for a standard low carbon lag screw.
5) Does the Metallics JBLS17 lag bolt qualify for a Buy American or ARRA funded job?
Metallics lists the JBLS17 as both Buy American compliant and ARRA compliant. Country of origin is multiple, so if your contract requires a single documented origin, request the mill paperwork for the lot you are shipped.
6) How are these 3/4 x 5 Metallics lag bolts packaged, and is there a minimum order?
They come in a jar of 10. The order minimum is 25 each, so plan on quantities in multiples that reach that threshold. Metallics also offers other sizes and quantities of the BLS and JBLS lag bolts by request.
