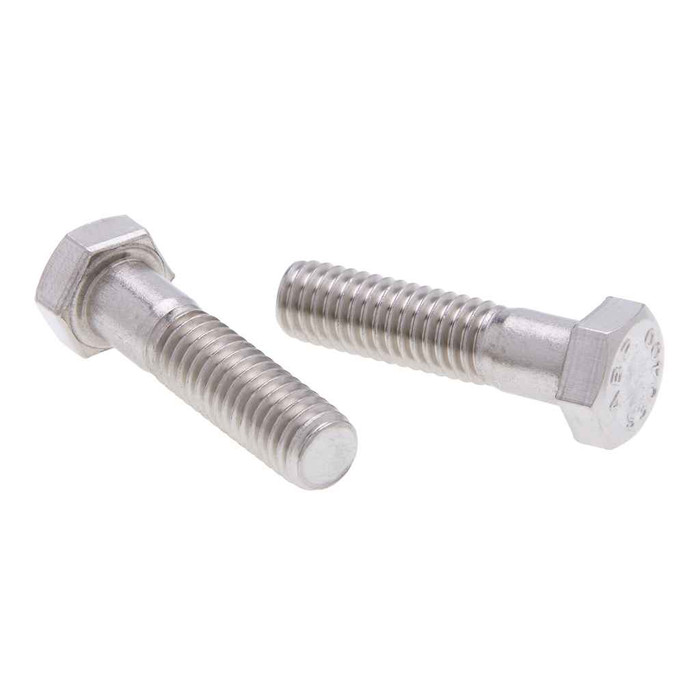

Bolts 3/8-16 X 1 Hxbt SS (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Features
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- 15/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.551 - 0.562 in.
- Fastener Height:
- 0.226 - 0.243
- Fastener Length:
- 1
- Fastener Width:
- 0.628 - 0.650
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Dom_18-8_SS_316_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Outside Diameter:
- 0.3690 - 0.3750 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 4.57 in
- Product Length:
- 3 in
- Product Weight:
- 1901 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 150000 psi minimum
- Thread Per Inch:
- 16
- Yield Strength:
- 65000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JSBH45 – Frequently Asked Questions
1) Will a 3/8-16 stainless hex bolt thread into a standard 3/8 coarse nut or tapped hole?
Yes. At 16 threads per inch on a 3/8 inch diameter, the JSBH45 is standard 3/8 coarse (UNC) thread, so it mates with any 3/8-16 nut, strut channel nut, or tapped hole. Measured shank diameter runs 0.3690 to 0.3750 inch. It will not fit 3/8-24 fine-thread hardware.
2) Can I use 18-8 stainless bolts outdoors or in a wash-down area?
18-8 stainless handles general atmospheric corrosion, which covers outdoor, damp, and wash-down duty such as chemical and food-processing equipment. It is not the right pick for chloride-heavy or aggressive chemical exposure, including coastal salt spray and pool chemical rooms; 316 stainless is the step up for those.
3) Do these stainless hex bolts meet Buy American or ARRA requirements on a government job?
No. The JSBH45 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic-content clause, this bolt will not satisfy it.
4) Do nuts and washers come with these 3/8-16 hex bolts?
Bolts only. The jar of 100 is bare hex bolts, so order 3/8-16 stainless hex nuts and matching stainless flat or lock washers separately. Mixing in zinc-plated or carbon steel nuts on a wet or corrosive install defeats the point of going stainless, since dissimilar metals in contact will corrode.
5) Is the JSBH45 a hex head bolt or a socket cap screw?
Hex head. It drives with an open-end or box wrench or a 9/16 socket, not an Allen key, so it is the right pick where you need to get a wrench on it in a crowded ceiling or panel space rather than a straight-down hex driver.
