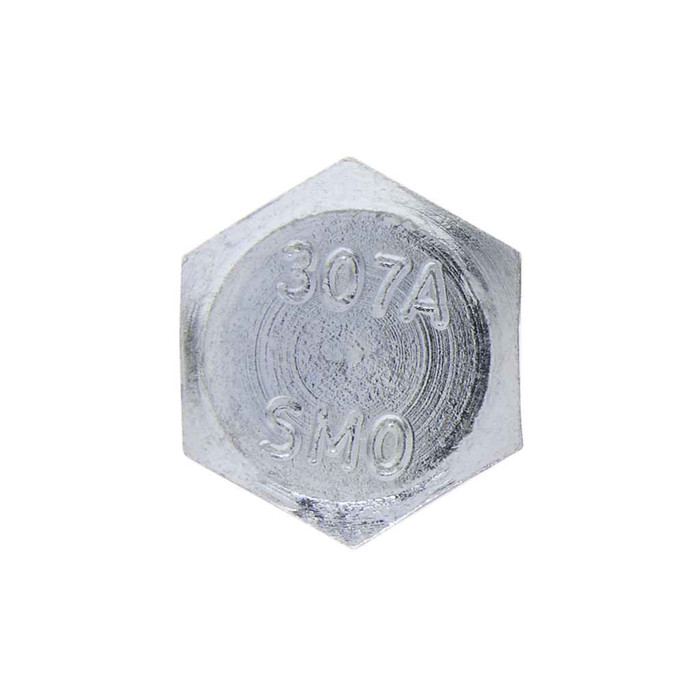

Bolts 3/8-16 x 2 HXBT Pln-St (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 4-Jan in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.544 - 0.562 in.
- Fastener Height:
- 0.226 - 0.268
- Fastener Length:
- 2
- Fastener Width:
- 0.620 - 6.650
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.360 - 0.388 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 7.18 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 16
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Plain
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC24PL – Frequently Asked Questions
1) Is a plain finish steel bolt okay for outdoor or damp electrical work?
No. The JBHC24PL is plain steel with no plating or coating, so it will rust in wet, outdoor, or washdown locations. Use it for dry interior work, indoor strut and enclosure mounting, and temporary assembly. For exposed or damp runs, specify a zinc-plated or stainless hex bolt in the same 3/8-16 x 2 size.
2) How are these 3/8-16 bolts packaged, and what is the minimum I can buy?
They ship in a jar of 100 pieces, and 100 count is the order minimum, so the jar is the buying unit. Total jar weight is 7.18 lbs. Handy for a shop or truck bin rather than loose counts off a shelf.
3) Do these Metallics hex bolts meet Buy American or ARRA requirements on a public project?
The JBHC24PL is flagged compliant for both Buy American and ARRA purposes. Country of origin is China. If your project specification requires domestically melted and manufactured fasteners rather than the compliance flag, confirm the requirement wording against the origin before you submit.
4) Do nuts and washers come with these bolts?
No. The jar of 100 is bolts only. You will need to order 3/8-16 hex nuts and 3/8 inch flat or lock washers separately to make up the complete fastening.
5) Can I get the same 3/8-16 hex bolt in a different length or a smaller quantity?
Yes. The BHC and JBHC series covers other sizes and pack quantities by request, with JBHC24PL being the 3/8-16 x 2 inch plain steel bolt in a 100 piece jar. Tell us the diameter, thread, length, and count you need.
