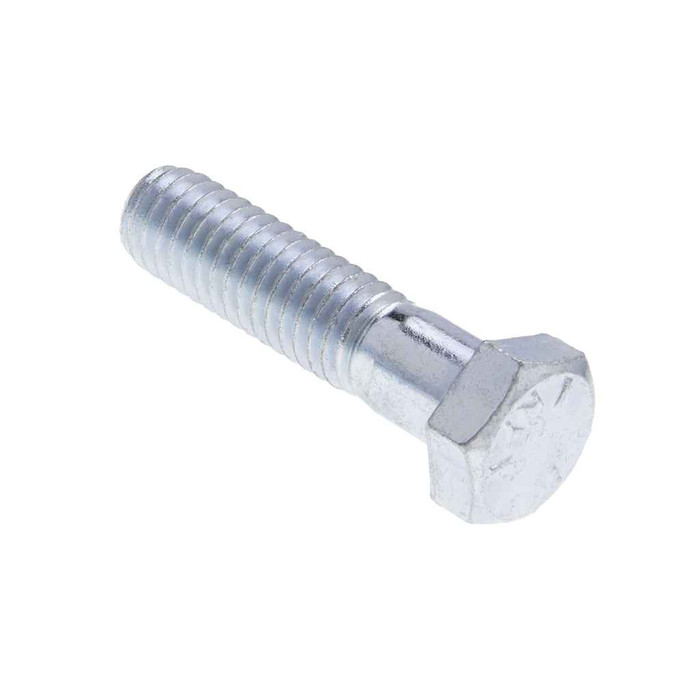

Bolts 3/8-16 X 3/4 G5 Hxbt St-zn (Jar 100)
Features
- A cap screw made from medium carbon steel and heat-treated
- Used to mount motor to machinery. Also popular in automotive and truck repair
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- 15/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.551 - 0.562 in.
- Fastener Height:
- 0.226 - 0.243
- Fastener Length:
- 4-Mar
- Fastener Width:
- 0.628 - 0.650
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Grade:
- 5
- Hardness:
- Rockwell C25-34
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Outside Diameter:
- 0.3690 - 0.3750 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 4.57 in
- Product Length:
- 3 in
- Product Weight:
- 1592 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 120000 psi minimum
- Thread Per Inch:
- 16
- Thread Standard:
- ASME B18.2.1-2012
- Voltage Rating:
- Zinc Chromate
- Wrenching Height:
- 0.16
- Yield Strength:
- 92000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HC and JG5HC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG5HC44 – Frequently Asked Questions
1) What thread and diameter are the Metallics JG5HC44 hex bolts?
They are 3/8-16 bolts: 16 threads per inch, with a measured body diameter of 0.3690 to 0.3750 in. Threads are cut to ASME B18.2.1-2012, so they take a standard 3/8-16 nut or tapped hole. If your equipment is tapped 3/8-24 fine thread, these will not thread in.
2) How strong is a grade 5 hex bolt, and is it strong enough to mount a motor?
Grade 5 means medium carbon steel, heat treated, with 120,000 psi minimum tensile and 92,000 psi minimum yield strength, and a hardness of Rockwell C25-34. That is the usual choice for bolting a motor to machinery and for automotive and truck repair work. For connections engineered to grade 8 or to a stainless spec, grade 5 is not a substitute.
3) Can I use these bolts on a federally funded or Buy American job?
No. These Metallics grade 5 hex bolts are not Buy American compliant and are not ARRA compliant, and country of origin is listed as multiple. For a project with domestic sourcing requirements you need a domestic-certified fastener instead.
4) Are these zinc plated bolts OK outdoors or in a damp mechanical room?
The bolts are steel with a zinc finish, which handles indoor and sheltered mechanical room service and gives light corrosion protection. Zinc plating is not marine or sustained wet exposure protection, so for roof curbs, cooling towers or coastal work use stainless or hot dip galvanized fasteners instead.
5) How many bolts come in a jar, and can I buy fewer than 100?
The JG5HC44 ships as a jar of 100 bolts, and the jar is the minimum order unit, so 100 pieces is the smallest quantity. Other sizes and quantities are available by request.
6) Are these cap screws meant for electrical and mechanical trade work, or general construction?
They are stocked for the electrical, plumbing, heating and air conditioning trades: strut and enclosure mounting, equipment bases, motor mounting. Nothing about the bolt itself limits it to those trades, it is a standard 3/8-16 grade 5 hex cap screw, so it works anywhere that size and strength class is called out.
7) What steel are Metallics grade 5 hex bolts made from?
Material is carbon steel to AISI 1008-1026, heat treated to reach the grade 5 strength class. That is the standard medium carbon range for grade 5 cap screws, and it is why these can be torqued well past a plain unhardened grade 2 bolt of the same diameter.
