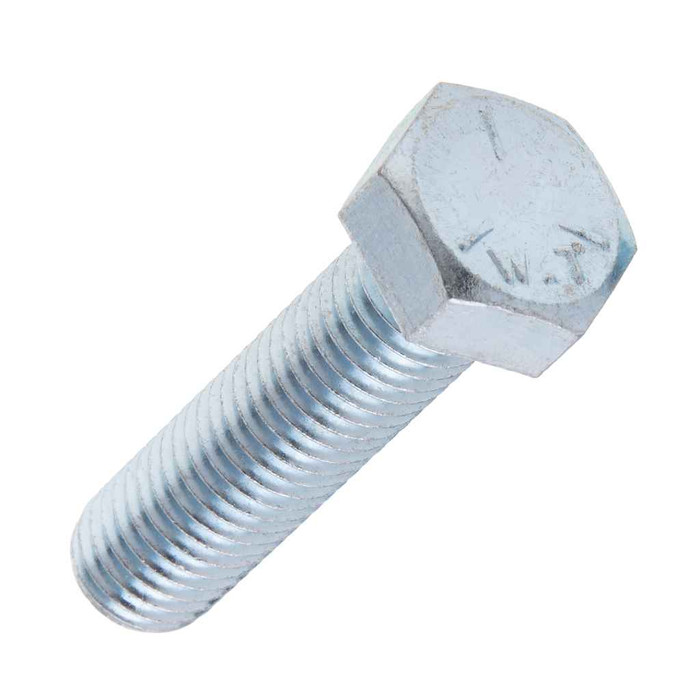

Bolts 3/8-16 X 4-1/2 G5 Hx Tap Blt (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- A cap screw made from medium carbon steel and heat-treated
- Used to mount motor to machinery. Also popular in automotive and truck repair
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 15/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.551 - 0.562 in.
- Fastener Height:
- 0.226 - 0.243
- Fastener Length:
- 4/1/02
- Fastener Width:
- 0.628 - 0.650
- Grade:
- 5
- Hardness:
- Rockwell C19-30
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Tap_Bolt_St-Zn_and_18-8_SS.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.3690 - 0.3750 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 2948 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 105000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 16
- Thread Standard:
- ASME B18.2.1-2012
- Wrenching Height:
- 0.16
- Yield Strength:
- 105000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HTB and JG5HTB
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG5HTB105 – Frequently Asked Questions
1) Will the JG5HTB105 bolt pass through a 3/8 inch hole?
The shank outside diameter runs 0.3690 to 0.3750 in., which is nominal 3/8 in. A drilled 3/8 in. hole is a line-to-line fit, so in practice you want a 13/32 in. or 7/16 in. clearance hole for a through-bolted joint. Into a tapped hole, the mating thread needs to be 3/8-16.
2) Is the zinc finish on these hex tap bolts suitable for outdoor use?
The bolt is steel with a zinc finish. Zinc plating handles indoor, damp, and sheltered conditions and resists general rust in service, but it is not a stainless or hot dip galvanized bolt, so continuous weather exposure, washdown, or coastal environments will eventually take it. For those, specify a hot dip galvanized or 18-8 stainless hex tap bolt in the same 3/8-16 x 4-1/2 size instead.
3) How many bolts come in a jar of Metallics JG5HTB105, and can I buy just a few?
These ship 50 to a jar, and 50 count is the order minimum, so the jar is the smallest unit sold. The jar packaging is handy on a service truck or in an MRO crib where you are pulling a handful at a time rather than opening a bulk box. Other sizes and quantities are available by request.
4) Do these Metallics bolts meet Buy American and ARRA requirements on a public project?
The JG5HTB105 is flagged compliant for both ARRA and Buy American, and country of origin is listed as China. If your project specification requires domestically melted and manufactured fasteners rather than the broader compliance flag, confirm the requirement language against that origin before you commit the submittal.
