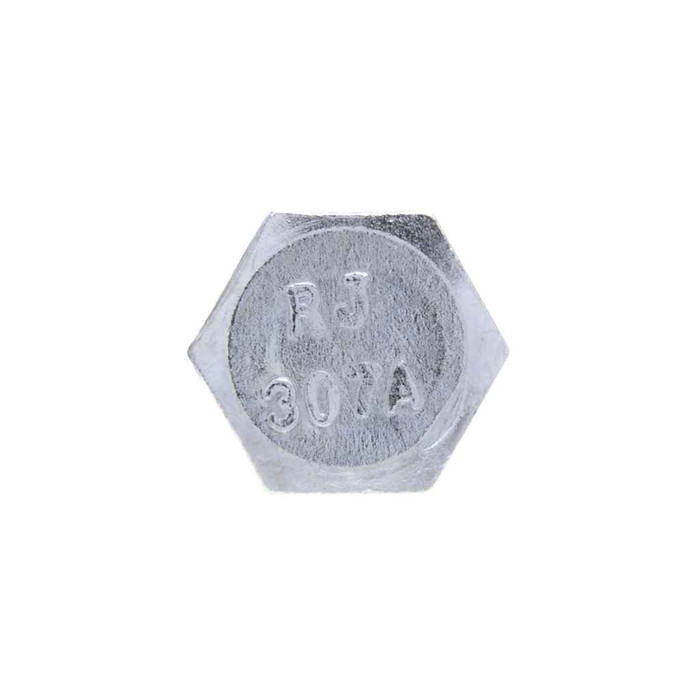

Bolts 3/8 X 3 Hx Lag Blt Galv (Jar 100)
Features
- For use in corrosive enviroments
- A full-bodied boltwith hex head, spaced threads and a gimlet point
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- 4-Jan in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.544 - 0.562 in.
- Fastener Height:
- 0.226 - 0.268
- Fastener Length:
- 3
- Fastener Width:
- 0.620 - 0.650
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.360 - 0.388 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 8.12 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Per Inch:
- 7
- Washer Od:
- 0.125 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Finish:
- Galvanized
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBLS23G – Frequently Asked Questions
1) Can a 3/8 x 3 inch galvanized lag bolt be used outdoors or in damp, corrosive locations?
That is what the galvanized finish on the Metallics JBLS23G is for. It is a steel lag bolt with a galvanized coating, called out for use in corrosive environments, so exterior framing, damp mechanical rooms, and coastal-adjacent work are fair game. Where you need more corrosion resistance than zinc coating gives, step up to stainless rather than galvanized steel.
2) Do these galvanized lag bolts qualify for Buy American and ARRA jobs?
Both the Buy American and ARRA compliance flags on the JBLS23G are marked compliant, with country of origin listed as China. If your spec requires domestic melt and manufacture, pull the certification paperwork before submitting, since those two program flags and a domestic-origin requirement are not the same test.
3) How many lag bolts come in a jar, and can I buy fewer than 100?
The JBLS23G ships as a jar of 100, and 100 count is the order minimum, so the jar is the buying unit rather than a loose each. Metallics offers other sizes and quantities on request if 3/8 x 3 or the 100 count does not match the job.
4) What does a full jar of 100 of these weigh for shipping or carrying up to a roof?
The packaged jar of 100 comes in at 8.12 lbs. Figure that per jar when you are staging material on a lift or hauling fasteners to a rooftop unit.
