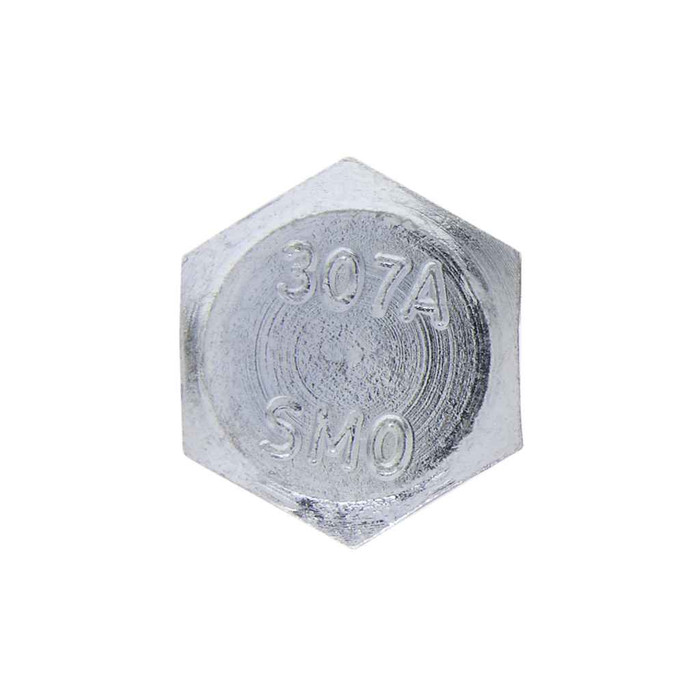

Bolts 5/8-11 x 2-1/4 HXBT Pln-St (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 27/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.906 - 0.938 in.
- Fastener Height:
- 0.378 - 0.444
- Fastener Length:
- 2/1/04
- Fastener Width:
- 1.033 - 1.083
- Language Code:
- EN
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.605 - 0.642 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 12.09 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Plain
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC109PL – Frequently Asked Questions
1) What thread size and pitch is the Metallics JBHC109PL hex bolt?
It's a 5/8-11 bolt: 5/8 inch nominal diameter with 11 threads per inch, which is the standard UNC coarse pitch for that diameter. Thread form follows ASME B18.2.1-1996, so it mates with any standard 5/8-11 UNC nut or tapped hole. Usable length is 2-1/4 inches.
2) Are these plain steel bolts okay for outdoor or damp electrical work?
No. The JBHC109PL is plain finish steel with no plating or coating, so it will rust in wet, exterior, or corrosive locations. Keep it to dry indoor framing, strut, and panel work. For outdoor runs use a zinc plated, hot dip galvanized, or stainless 5/8-11 bolt instead.
3) What wrench or socket size fits these 5/8-11 hex bolts?
Across the flats the hex head measures 0.906 to 0.938 inch, so a 15/16 inch socket or wrench is the fit. Head height is 27/64 inch, which matters if you're working in a shallow recess or under a channel.
4) How many bolts come in a jar of Metallics JBHC109PL, and can I buy just a few?
They ship in a jar of 50 and the order minimum is 50 count, so the jar is the smallest buying unit. The filled jar weighs 12.09 lbs. Metallics does make other sizes and quantities in the BHC and JBHC line available by request.
5) Does the Metallics JBHC109PL meet Buy American requirements on a federal job?
The bolt is flagged as both ARRA compliant and Buy American compliant in the manufacturer data, with China as the country of origin. On a federally funded project, confirm which domestic-content clause your contract cites, since the origin and the compliance flag need to line up with the specific provision on your spec.
6) Are the nuts and washers included with the JBHC109PL jar?
No. The jar of 50 contains plain steel hex bolts only, so order 5/8-11 hex nuts and 5/8 flat or lock washers separately to complete the assembly.
