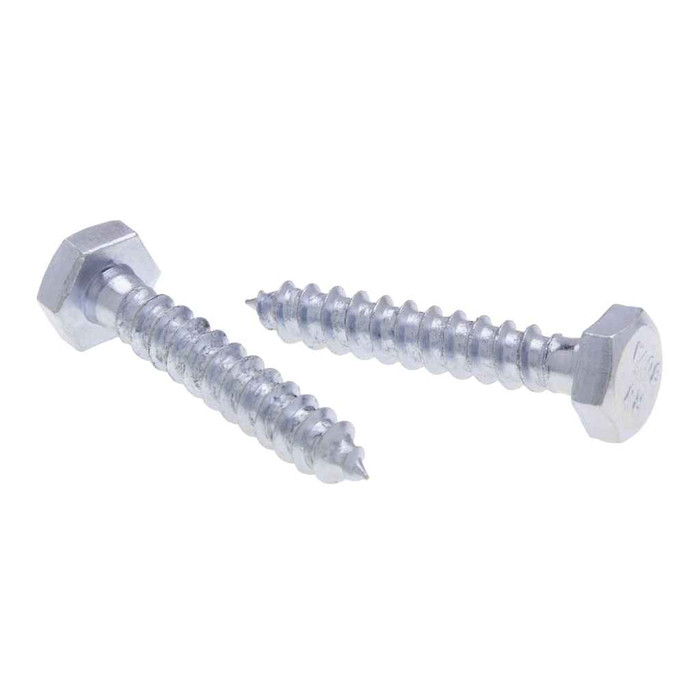

Bolts 5/8 X 3 Hex Lag Blt SS (Jar 25)
Features
- Has superior corrossion resistance to galvanized steel bolts
- A full-bodied boltwith hex head, spaced threads and a gimlet point
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- 4-Jan in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.544 - 0.562 in.
- Fastener Height:
- 0.226 - 0.268
- Fastener Length:
- 3
- Fastener Width:
- 0.620 - 0.650
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Order Minimum Imperial:
- 25
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.360 - 0.388 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 125000 psi (Approximate) minimum
- Thread Per Inch:
- 7
- Washer Od:
- 0.125 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JBLS583SS – Frequently Asked Questions
1) Is a stainless lag bolt worth it over hot-dip galvanized for exterior or coastal work?
For exposed exterior, damp, or coastal installs, yes. The 18-8 stainless JBLS583SS has superior corrosion resistance to galvanized steel bolts, which is the reason to pay for stainless on a facade, dock, canopy, or rooftop support where you don't want to be back in five years chasing rust streaks.
2) Do I need to pre-drill for a 5/8 inch stainless lag bolt?
Yes. It's a full-bodied lag with spaced threads and a gimlet point, so the point will start a hole but a 5/8 inch shank in wood needs a pilot hole or you'll snap it or split the member. Stainless is softer than hardened carbon steel (Rockwell B95 to C32), so driving it dry into a tight hole is how heads twist off. Pilot, and wax the threads.
3) Does the Metallics JBLS583SS meet a dimensional standard for submittals?
Dimensions conform to ASME B18.2.1-1996, the square and hex bolt and screw standard. That's the line to cite on a submittal when the spec calls for a standard hex lag. Note it is not Buy American compliant and not ARRA compliant, with country of origin listed as multiple, so it won't clear a domestic-content requirement on a federal job.
4) What is the tensile strength of the Metallics 18-8 stainless lag bolt?
Approximately 100,000 to 125,000 psi minimum tensile, with hardness in the Rockwell B95 to C32 range. That's typical 18-8 stainless territory, below a hardened Grade 5 or Grade 8 carbon bolt, so where an engineer has specified a graded carbon lag for a structural connection, stainless is a corrosion substitution and not a strength upgrade.
5) Do the Metallics stainless lag bolts come with washers?
The jar of 25 is bolts only. A lag of this size pulling into wood wants a flat washer under the head to spread the bearing load, so plan on ordering 18-8 stainless flat washers separately and match the stainless so you don't set up galvanic corrosion against the bolt.
6) Can I get the Metallics JBLS stainless lag bolt in a different length or diameter?
Yes. The BLS and JBLS series runs other sizes and pack quantities by request, so if 5/8 x 3 is short for your member thickness, the same stainless lag is available in other lengths. Specify diameter, length, and pack quantity when you ask.
