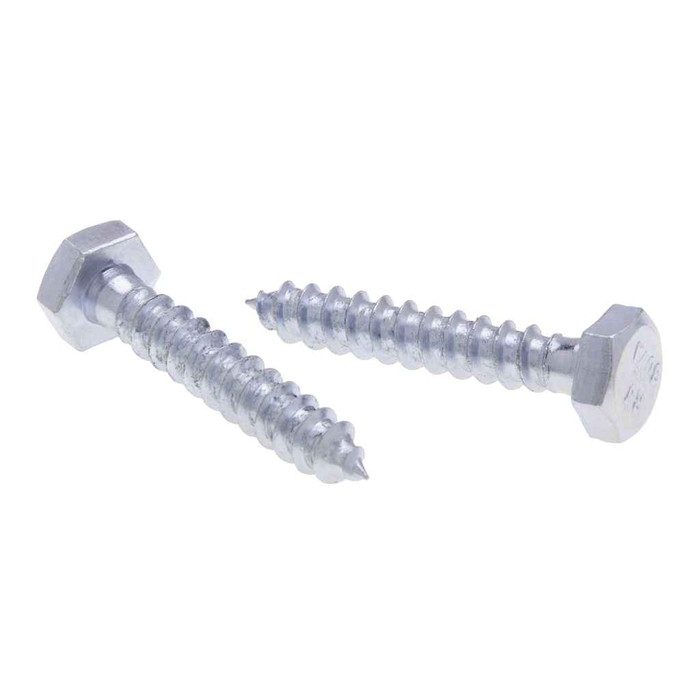

Bolts 5/8 X 6 Hx Lag Blt Galv (Jar 20)
Additional Notes
- Other sizes and quantities available by request
Features
- A full-bodied boltwith hex head, spaced threads and a gimlet point
- For use in corrosive enviroments
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Type:
- Hex
- Fastener Length:
- 6
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 20
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 2744 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Finish:
- Galvanized
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBLS586G – Frequently Asked Questions
1) What size lag bolt is the Metallics JBLS586G, and how many come in a jar?
It's a 5/8 inch diameter by 6 inch long hex head lag bolt, galvanized steel, packed 20 to a jar. The jar of 20 is also the order minimum, so you buy it by the count rather than by the piece.
2) Can I use these galvanized lag bolts outdoors or in a damp environment?
Yes. The galvanized coating on these 5/8 x 6 steel lag bolts is specified for use in corrosive environments, which covers exterior framing, treated lumber ledgers, and damp mechanical rooms. Plain zinc-plated lags are the indoor-only option.
3) Are these Metallics lag bolts acceptable on a federally funded job?
The JBLS586G is flagged both ARRA compliant and Buy American compliant in the manufacturer data, with country of origin China. If your contract carries a strict domestic-melt clause, read those two flags against your spec language before you submit.
4) Do these lag bolts need a pilot hole, or do they drive themselves?
They have a gimlet point with spaced threads, so they start on their own in softwood, but at 5/8 inch diameter you still want a pilot hole in anything dense or in treated lumber. It's a full-bodied bolt, meaning the shank is the full 5/8 inch under the unthreaded portion, so size the pilot to the shank, not the thread crest.
