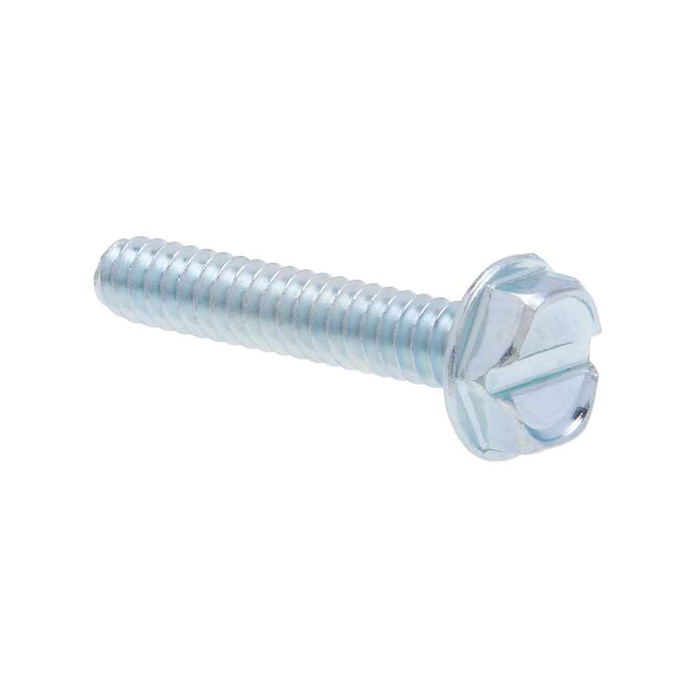

Bolts 6-32 x 1-1/4 Hx MS St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.6.3-2002
- Division:
- Electrical H1
- Drive Type:
- Slotted
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.244 - 0.250 in.
- Fastener Height:
- 0.080 - 0.093
- Fastener Length:
- 1/1/04
- Fastener Width:
- 0.272
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.15 in
- Product Length:
- 3 in
- Product Weight:
- 222 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 32
- Thread Pitch:
- 0.138
- Thread Standard:
- ANSI/ASME B1.1
- Thread Type:
- UNC
- Washer Od:
- 0.302 - 0.328 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- JHHMS
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JHHMS68 – Frequently Asked Questions
1) Do these screws meet Buy American requirements for a government or institutional job?
The JHHMS68 machine screws are flagged compliant for both ARRA and Buy American purposes, which is what most public-funded and institutional specs ask for on fastener submittals. Country of origin on record is China.
2) Do the JHHMS68 hex head screws take a screwdriver or do I need a nut driver?
Both work. The head is hex with a slot cut across it, so you can spin them with a 1/4 inch nut driver for speed or finish with a flat blade screwdriver in tight spots. Head width measures 0.244 to 0.250 inch and head height 0.080 to 0.093 inch.
3) Are these zinc plated steel screws OK for damp indoor locations or outdoor use?
Material is steel with a zinc finish. Zinc plating handles dry and normally humid interior work, which is what most device-box and panel fastening is. For wet exterior exposure, salt air, or anything washed down regularly, step up to stainless rather than zinc plated steel.
4) How many screws come in a jar of Metallics JHHMS68, and can I buy fewer than that?
They ship 100 to a jar, and 100 count is the order minimum, so a jar is the smallest unit. The filled jar weighs 222 g. Other sizes and quantities can be had by request if 6-32 x 1-1/4 is not the size you need.
5) Is there a dimensional standard I can cite on a submittal for these 6-32 hex machine screws?
Yes. Head and body dimensions follow ASME B18.6.3-2002, the standard for machine screws, and the thread form is to ANSI/ASME B1.1. Thread pitch is listed at 0.138 and body width at 0.272.
6) Will a standard #6 washer fit under the head of these screws?
The matching washer outside diameter is listed at 0.302 to 0.328 inch, so a #6 washer in that OD range seats correctly under the 0.244 to 0.250 inch hex head without the head overhanging. Washers are not included in the jar, which holds screws only.
7) What exact part number do I order for the 6-32 x 1-1/4 zinc hex machine screws from Metallics?
Order Metallics JHHMS68, from the JHHMS series: 6-32 x 1-1/4 hex head slotted machine screw, zinc plated steel, 100 per jar.
