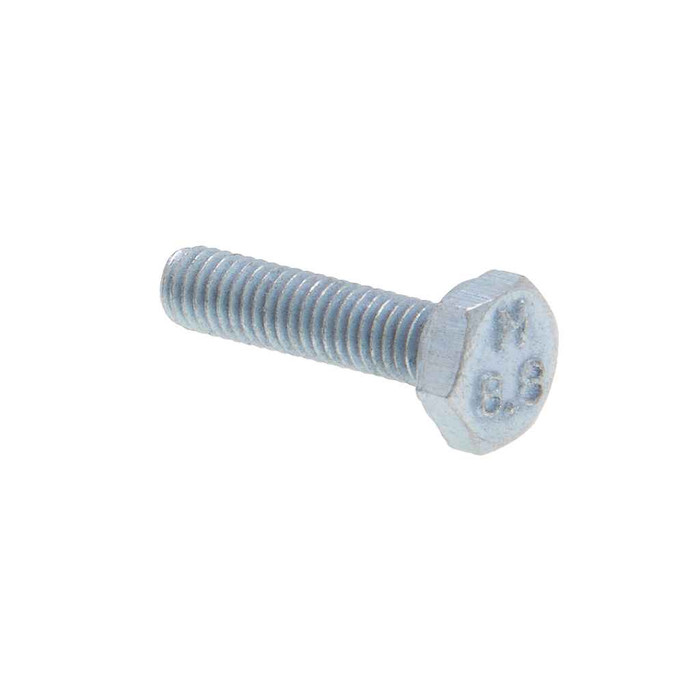

Metallics JMHTB612 Bolts M6 X 12 C8.8 Hx Tap Blt St-zn (Jar 100)

Metallics JMHTB612 Bolts M6 X 12 C8.8 Hx Tap Blt St-zn (Jar 100)

(No reviews yet) Write a Review

Model: JMHTB612
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.63
$0.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts M6 X 12 C8.8 Hx Tap Blt St-zn (Jar 100)

  • Additional Notes

    • Other sizes and quantities available by request

  • Features

    • A Hex headed extrnally threaded fastener with washer-face beneath the head, a metric thread pitch, made from medium carbon steel and heat-treated. The threads on the shank extended all of the way to directly beneath the head.
    • Used to mount motor to machinery. Also popular in automotive and truck repair

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Fastener Head Type:
Hex
Fastener Head Width:
9.78 - 10 in.
Fastener Height:
3.85 - 4.15
Fastener Length:
12mm
Fastener Width:
11.05
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Grade:
8.8
Hardness:
Rockwell C22-32
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Hd_Metric_Tap_Bolt_St-Zn.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Outside Diameter:
5.82 - 6 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
463 g
Product Width:
76.2 MM
Sub Division:
Electrical-E H2
Tensile Strength:
11600 psi minimum
Thread Direction:
Right Hand
Thread Pitch:
1
Thread Type:
UNC
Yield Strength:
92800 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
MHTB and JMHTB
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JMHTB612 – Frequently Asked Questions

1) What size is the Metallics JMHTB612 hex tap bolt, and is it fully threaded?
It's an M6 bolt with a 12mm length under the head, and the thread runs all the way up to directly beneath the head, so there is no unthreaded shank to work around in a shallow tapped hole. The thread pitch is 1mm (standard M6 coarse) and it is right-hand thread.
2) Is a Class 8.8 zinc bolt strong enough for mounting a motor to a frame?
Yes, that's the intended use. The JMHTB612 is medium carbon steel, heat treated to property class 8.8 with a hardness of Rockwell C22-32, and the described application is mounting motors to machinery as well as automotive and truck repair. The zinc plating gives general indoor corrosion protection, not marine or outdoor exposure performance.
3) Are Metallics JMHTB612 bolts Buy American or ARRA compliant for a government job?
No. These hex tap bolts are not Buy American compliant and are not ARRA compliant, with multiple countries of origin. If your contract carries a domestic sourcing clause, this is not the fastener to specify.
4) How are these M6 hex tap bolts packaged and what is the minimum order?
They ship in a jar of 100 pieces, and the jar is the minimum order unit, so 100 is the smallest quantity. The filled jar weighs 463 g. For an MRO crib stocking common metric sizes, that's a shelf-ready container rather than a loose bulk bag.
5) Do these Metallics hex tap bolts have a washer face under the head?
Yes. There is a washer face beneath the hex head, which spreads the bearing load slightly and gives a cleaner seat on the mating surface. It does not replace a flat washer on soft or slotted material, so add one where the hole is oversized.
6) What trades use the Metallics MHTB and JMHTB metric tap bolts?
The MHTB and JMHTB series is stocked for electrical, plumbing, heating and air conditioning work, plus motor mounting on machinery and automotive or truck repair. Typical jobs are bolting a motor, blower or pump into a tapped base where the equipment is metric rather than inch.
7) Can I get this Metallics hex tap bolt in other metric lengths or pack sizes?
Other sizes and quantities in the MHTB and JMHTB hex tap bolt line are available by request. The catalogued item here is the M6 x 12 zinc plated class 8.8 bolt in a 100 piece jar.
