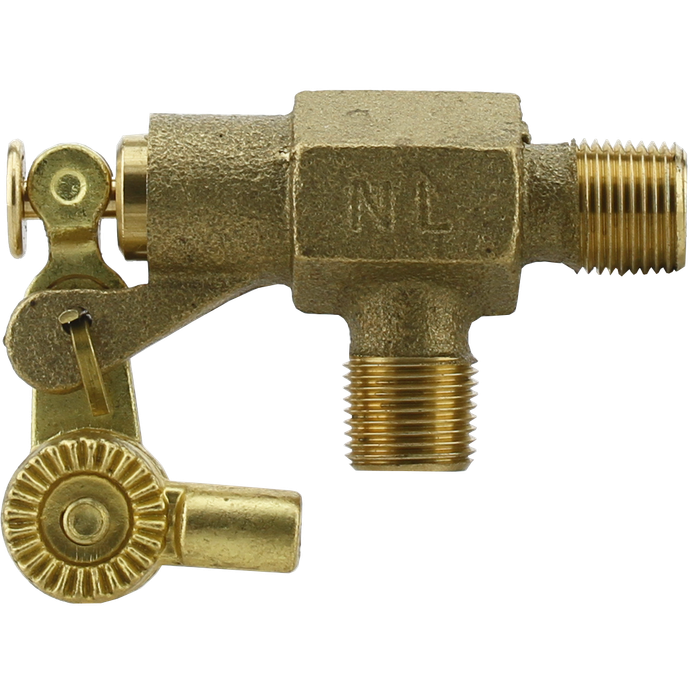

Boshart 28-BFV-10NL 1" No-Lead Float Valve, 1" MPT In x 1" MPT Out
The Boshart 28-BFV-10NL is a 1" no-lead float valve built for automatic tank filling applications, most commonly used to control the fill level of livestock water tanks and water tower cooling tanks. This float valve features a 1" MPT inlet connection and a 1" MPT outlet connection, with a 1/4"-20 threaded arm connection for the float rod. Being no-lead, it is manufactured to reduced-lead specifications for water contact applications. Sourced from Taiwan and packaged 10 pieces per box, this valve is intended for professional plumbing and agricultural supply distribution.
Key Features
- Trade Size: 1" valve body sized for standard tank fill-line rough-in.
- Connection Type: 1" MPT inlet x 1" MPT outlet threaded connections for direct pipe-to-valve installation.
- Float Arm Thread: 1/4"-20 threaded connection point for attaching the float arm/rod assembly.
- No-Lead Construction: Manufactured to no-lead standards for use in potable and livestock water supply lines.
- Automatic Shutoff Function: Designed to close as the tank water level rises, stopping flow automatically to prevent overfilling and water waste.
- Packaging: Supplied 10 pieces per box for stocking distributors and multi-tank installations.
Technical Specifications
- Trade Size: 1"
- Inlet Connection: 1" MPT
- Outlet Connection: 1" MPT
- Float Arm Thread: 1/4"-20
- Lead Content: No-Lead
- Country of Origin: Taiwan
- Packaging: 10 ea per box
Typical Applications
- Livestock Water Tank Filling
- Water Tower Cooling Tank Level Control
- Agricultural and Farm Water Storage Systems
- Automatic Tank Fill Rough-In Installations
- Industrial Reservoir and Sump Fill Control
Why Boshart?
Boshart's 28-BFV-10NL float valve is built with no-lead construction and standard 1" MPT threading, making it a straightforward drop-in solution for plumbers and contractors handling tank-fill rough-in work. The 1/4"-20 float arm connection and 1" x 1" MPT configuration keep installation compatible with common tank plumbing setups, while the 10-piece packaging supports distributors stocking for multiple installations or repeat farm and industrial service calls.
Manufacturer Resources
Product Specs
- list_batch:
- BOS-20260923
- Product Type:
- Float Valve
- Connection Type:
- MPT x MPT
- Standards:
- No-Lead
- Country of Origin:
- Taiwan
- Department:
- Plumbing
- Product Subgroup:
- Fittings and Valves
- Product Size:
- 1"
