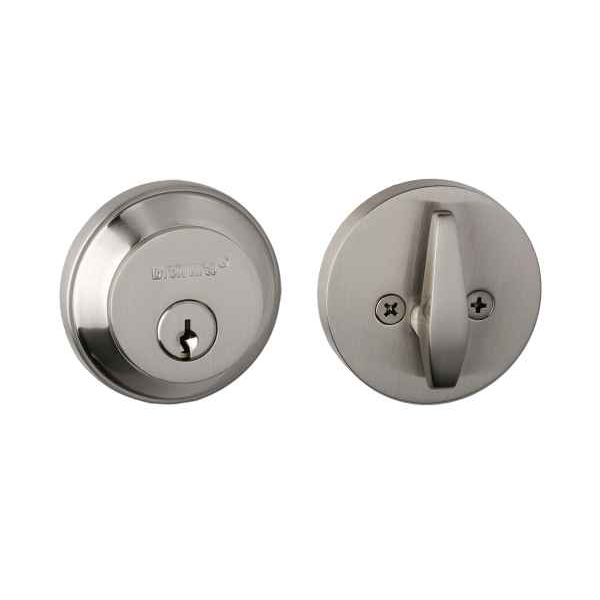

Bravura 310RC Elite - Grade 2 Contemporary Round Deadbolt

Bravura 310RC Elite Contemporary Round Deadbolt

The Bravura Elite Contemporary Round Deadbolt Grade 2 residential lock is elegantly designed with timeless durability and classic style.

Each piece combines a stunning designer finish, high-end style and smooth mechanics that delivers a one- of-a-kind experience that cannot be replicated.

The robust, all-metal construction provides improved security, durability, and smooth operation. All parts and accessories are included with instructions to make installation easy. A variety of finishes are available to match your desired aesthetic whether installed alone or combined with other complementary Bravura door hardware.

Features

• Easy to install
• Solid brass construction
• All parts and instructions included
• Full lip round corner strike plate

Specifications

• Door Prep
  • 2-1/8" cross bore
  • 1" edge bore
  • 1" x 2-1/4" latch face
• Door Thickness
  • 1-3/4" standard, 1-3/8" optional
  • 2", 2-1/4", and 2-1/2" extension kits available (sold separately)
• Latches
  • 2-3/8" to 2-3/4" adjustable latch standard (backset)
  • Drive-in latch available (sold separately)
• Cylinder
  • Schlage SC1 5-Pin C Keyway standard
• Strikes
  • 9118R/S with reinforcement plate
• Functions
  • Single cylinder
  • Single cylinder operates with a key on the exterior side of the door and a thumb turn on the inside

Technical Specification Download
