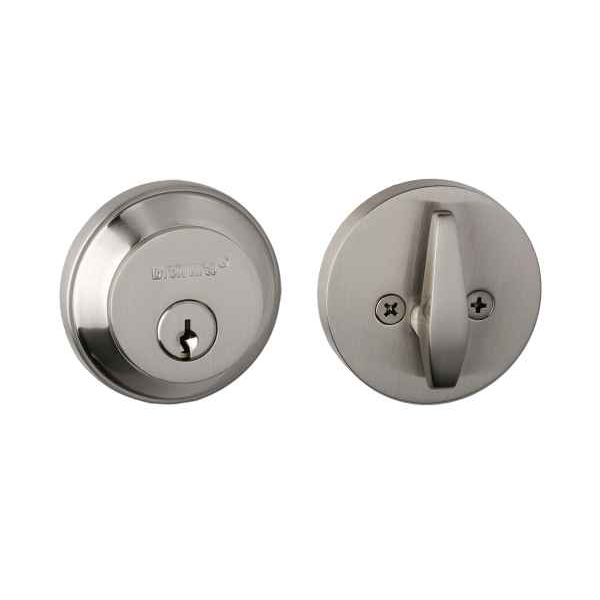

Bravura 310RC Elite Contemporary Round Deadbolt
The Bravura Elite Contemporary Round Deadbolt Grade 2 residential lock is elegantly designed with timeless durability and classic style.
Each piece combines a stunning designer finish, high-end style and smooth mechanics that delivers a one- of-a-kind experience that cannot be replicated.
The robust, all-metal construction provides improved security, durability, and smooth operation. All parts and accessories are included with instructions to make installation easy. A variety of finishes are available to match your desired aesthetic whether installed alone or combined with other complementary Bravura door hardware.
Features
- Easy to install
- Solid brass construction
- All parts and instructions included
- Full lip round corner strike plate
Specifications
- Door Prep
- 2-1/8" cross bore
- 1" edge bore
- 1" x 2-1/4" latch face
- Door Thickness
- 1-3/4" standard, 1-3/8" optional
- 2", 2-1/4", and 2-1/2" extension kits available (sold separately)
- Latches
- 2-3/8" to 2-3/4" adjustable latch standard (backset)
- Drive-in latch available (sold separately)
- Cylinder
- Schlage SC1 5-Pin C Keyway standard
- Strikes
- 9118R/S with reinforcement plate
- Functions
- Single cylinder
- Single cylinder operates with a key on the exterior side of the door and a thumb turn on the inside
Manufacturer Resources
Product Specs
- Subcategory:
- Deadbolts
- Series:
- 310RC Elite Deadbolts
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lock Function:
- Single Cylinder
- Product Type:
- Deadbolts
- Grade:
- Grade 2
- Product Attribute:
- Deadbolts
- Product Function:
- Cylinder x Thumbturn
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Bravura BV310601 – Frequently Asked Questions
1) Does the Bravura 310RC deadbolt work with a 2-3/8 inch backset, or do I need to know my backset before ordering?
No need to measure first. The 310RC comes with an adjustable latch that covers both 2-3/8 and 2-3/4 inch backsets, which are the two backsets used on residential doors. Set it on the bench and go. If you are boring a new door and prefer a drive-in latch instead of a faceplate latch, that is a separate part.
2) Can I key the Bravura 310RC deadbolt to match my existing Schlage keys?
The 310RC ships with a Schlage SC1 5-pin C keyway cylinder, so it takes the same key blank as an SC1 Schlage residential lock. That means a locksmith can key it to an existing SC1 system. When ordering you pick keyed different or keyed alike, so a landlord doing several doors can have them all on one key from the start.
3) Is the Bravura 310RC deadbolt rated for a commercial building or apartment corridor?
It is a Grade 2 residential lock, and Bravura builds it for houses and residential entries rather than commercial traffic. For a commercial opening, look at a Grade 1 deadbolt such as the Dexter DB1000 single cylinder, which covers 1-3/8 to 1-7/8 inch doors, or the Delaney LM Series Grade 1 single cylinder. If a fire rated opening is involved, the Hager 3215 Grade 2 single cylinder with a 1 inch throw carries a fire rating.
4) Will the Bravura 310RC replace an existing tubular deadbolt without redrilling the door?
In most cases yes. The 310RC uses the standard 2-1/8 inch cross bore and 1 inch edge bore, and its latch adjusts between the 2-3/8 and 2-3/4 inch backsets, so an existing residential deadbolt hole normally accepts it as is. The two things to check on the old door are thickness (1-3/8 and 1-3/4 are covered, anything thicker needs the extension kit) and the latch face cutout, which is 1 x 2-1/4 inches here.
5) The Bravura 310RC Elite is standard for 1-3/4 inch doors - what deadbolt suits a thicker door?
The Bravura 310RC Elite is standard for 1-3/4 inch doors with a 1-3/8 inch option, and extension kits cover 2 inch, 2-1/4 inch and 2-1/2 inch doors separately. If you would rather have the range built in, the Corbin Russwin DL3011 Grade 1 cylindrical deadlock covers 1-3/4 inch to 2-1/4 inch, and the Deltana 7312KA2 Grade 3 double cylinder covers 1-3/8 inch to 2 inch. Function differs on both: the DL3011 is cylinder x blank rather than the key-and-thumbturn of the 310RC, and the 7312KA2 is keyed on both faces.
6) What is an equivalent single cylinder Grade 2 deadbolt to the Bravura 310RC Elite from another brand?
The Bravura 310RC Elite is a Grade 2 single cylinder deadbolt in a cylinder x thumbturn function. Closest peers on those same three points: the Cal-Royal CB160 is a Grade 2 single cylinder deadbolt with a tamper-resistant cylinder guard, the Dexter DB2000-SCT is a Grade 2 single cylinder deadbolt rated for 1-3/8 inch to 1-3/4 inch doors, and the Arrow DBX61 is a Grade 2 single cylinder deadbolt in the DBX Series. The Callan 200S-G2 is the round-trim match, a Grade 2 single cylinder round trim deadbolt, so it carries the same round escutcheon shape as the 310RC. Keying differs: the 310RC ships on a Schlage SC1 5-pin C keyway.
7) I need a double cylinder deadbolt with a round contemporary escutcheon instead of key and thumbturn - what should I use?
The Bravura 310RC Elite is built as a single cylinder, key outside and thumbturn inside, so it will not give you a keyed inside face. For a keyed-both-sides round contemporary trim, the Baldwin Reserve Double Cylinder Contemporary Round Deadbolt is the direct shape match; the Baldwin Reserve Double Cylinder Contemporary Square Deadbolt is the same function in square trim. Other double cylinder options include the Delaney LU Series Grade 2 double cylinder deadbolt in stainless steel US32D, the Dexter DB2000-DCT Grade 2 double cylinder for 1-3/8 inch to 1-3/4 inch doors, and the Hager 3214 Grade 2 double cylinder with a Schlage C keyway, which matches the 310RC keyway. Check local egress code before specifying a double cylinder on an exit door.
8) The Bravura 310RC is a residential Grade 2 deadbolt - what steps up to Grade 1 for a commercial entry?
The Bravura 310RC Elite is designated residential and Grade 2. If the opening calls for Grade 1, the Dexter DB1000-SCT is a Grade 1 single cylinder deadbolt covering 1-3/8 inch to 1-7/8 inch doors, the Accentra D111 is a Grade 1 single cylinder with a 2-3/8 inch backset, the Deltana CL200LM is a Grade 1 single cylinder, and the Delaney LM Series is a Grade 1 single cylinder supplied less core for an interchangeable core cylinder. All four keep the cylinder x thumbturn function of the 310RC. The Cal-Royal CRB800 is a heavy duty single cylinder with a UL 3-hour fire rated latch if the door assembly is fire rated.
9) Which deadbolts share the Bravura 310RC Elite's Schlage C keyway so I can key a building alike?
The Bravura 310RC Elite ships standard with a Schlage SC1 5-pin C keyway. Peers built on the same keyway family are the Hager 3115 Grade 2 cylinder x thumbturn deadbolt with Schlage C keyway, the Hager 3215 single cylinder Grade 2 with a 1 inch throw, the Hager 3214 double cylinder Grade 2 with Schlage C keyway, and the Hager 3118 Grade 1 classroom deadbolt with Schlage C keyway and a 6-pin cylinder. The Dormakaba D900 small case mortise deadbolt is also offered keyed different with SC keyways. Note the Hager 3118 is 6-pin against the 310RC 5-pin, which matters when a single key must operate both.
10) Will an interchangeable core deadbolt drop into the same prep as the Bravura 310RC Elite?
The Bravura 310RC Elite comes with a fixed Schlage SC1 5-pin C keyway cylinder rather than a core-accepting cylinder. For an SFIC or IC program, the Deltana CL200LAIC is a Grade 2 single cylinder deadbolt with an interchangeable core, non-cylinder, on a 2-3/4 inch backset; the Arrow E61 26D IC is a Grade 2 single cylinder deadlock with SFIC prep supplied less core for 1-3/8 inch to 1-3/4 inch doors; and the Delaney LM Series is a Grade 1 single cylinder less core deadbolt in dull chrome US26D. Watch the backset: the 310RC uses a 2-3/8 inch to 2-3/4 inch adjustable latch, while the Deltana CL200LAIC is a fixed 2-3/4 inch.
11) What looks like a substitute for the Bravura 310RC Elite deadbolt but will not fit the same door prep?
Several deadbolts carry the word in the name but do not drop into a standard 2-1/8 inch cross bore with a 1 inch edge bore the way the Bravura 310RC Elite does. The Emtek 2050 and 2051 European mortise deadbolts with integrated roller latch require a mortise pocket, as does the Dormakaba D900 small case mortise deadbolt. The Codelocks CL200 is a surface deadbolt with key override and the CL2200 is an electronic surface deadbolt, both mounted on the door face rather than bored through it. The BEST 8T is a tube component of a T Series tubular deadbolt, not a complete lock, and the Arrow 460 is a mortise lock strike, a strike plate rather than a bolt.
12) The Bravura 310RC Elite uses a 2-3/8 to 2-3/4 inch adjustable latch - which alternatives are fixed backset?
The Bravura 310RC Elite ships with a 2-3/8 inch to 2-3/4 inch adjustable latch as standard, so it covers either bore location. Fixed-backset peers have to be ordered to the door: the Accentra D111 is a Grade 1 single cylinder at a 2-3/8 inch backset, and the Deltana CL200LA is a Grade 2 single cylinder at 2-3/4 inch. On the adjustable side, the Brinks Raleigh and Brinks Mendocino both use a 4 way adjustable backset, and the Cal-Royal ED500 and Falcon D111 both list an adjustable backset. Measure from the door edge to the bore center before committing to a fixed unit.
13) Can the Bravura 310RC Elite be used on a fire rated door assembly, or is there a better choice?
For an opening where the deadbolt has to carry a fire rating on the record, the Hager 3115 is a Grade 2 cylinder x thumbturn deadbolt with a Schlage C keyway and a fire rating for 1-3/8 inch to 1-3/4 inch doors, and the Hager 3215 is a Grade 2 single cylinder with a 1 inch throw, also fire rated over the same thickness range. The Cal-Royal CRB800 is a heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch. All three keep the same key-outside operation as the Bravura 310RC Elite, and the Hager pair shares its Schlage C keyway family for keying continuity.
14) Is the Bravura 310RC a single or double cylinder deadbolt?
Single cylinder: key outside, thumbturn inside. That is the function most residential entries want and what most local codes expect on a means of egress. If you need a key on both sides, because the door has glass beside the bolt, the Baldwin Reserve Double Cylinder Contemporary Round Deadbolt is the round trim double cylinder option, and the Delaney LU Series Grade 2 double cylinder is another.
15) Does the Bravura 310RC deadbolt come with a strike plate and screws, or do I order those separately?
Everything for a normal install is in the box: latch, full lip round corner strike plate, reinforcement plate, fasteners and instructions. The only things sold apart are the thick-door extension kits and the drive-in latch, and neither is needed on a standard 1-3/4 or 1-3/8 inch door.
16) I need a round contemporary deadbolt but at a heavier grade than the Bravura 310RC. What else is there?
Staying round and contemporary, the Brinks Raleigh Series transitional round single cylinder deadbolt has a 4-way adjustable backset and the same cylinder x thumbturn function. Moving up in grade, the Deltana CL200LM is a Grade 1 single cylinder, and the Delaney LM Series Grade 1 single cylinder is a less-core version for buildings running their own cores. Trim shape on those is not the 310RC round rose, so a matched look across a house is the tradeoff.
17) Can I get several Bravura 310RC deadbolts keyed alike for a rental property?
Yes, keyed alike is one of the keying choices at order time, alongside keyed different. Because the cylinder is a Schlage SC1 5-pin C keyway, the same key set can also cover other SC1 hardware already on the property, which is what usually matters when a manager is unifying a building on one key.
18) Is there a simpler deadbolt than the Bravura 310RC Elite for a low traffic interior or rental door?
The Bravura 310RC Elite is a Grade 2 solid brass deadbolt with a full lip round corner strike plate. Where the duty cycle is lighter, the Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with an adjustable backset for 1-3/8 inch to 1-3/4 inch doors, the Cal-Royal LSD is a Grade 3 single cylinder with an ADA ergonomic thumbturn, and the Callan 200S is a Grade 3 single cylinder in square trim. All three keep the same key-outside, turn-inside operation as the 310RC. The Callan 205S is a one-sided half-bore deadbolt for a door that needs no exterior keying at all.
19) My door is prepped square, not round - what is the square trim version of a contemporary single cylinder deadbolt?
The Bravura 310RC Elite is the contemporary round trim shape. For a square face on the same single cylinder key-outside, thumbturn-inside function, the Brinks Mendocino Series is a contemporary square single cylinder deadbolt with a 4 way adjustable backset, and the Callan 200S is a Grade 3 single cylinder square trim deadbolt. Staying round, the Brinks Raleigh Series is a transitional round single cylinder deadbolt, also with a 4 way adjustable backset. Trim shape does not change the bore: the 310RC uses a 2-1/8 inch cross bore with a 1 inch edge bore.
20) I want keypad or credential entry instead of a key on the Bravura 310RC Elite - what deadbolt replaces it?
The Bravura 310RC Elite is a mechanical deadbolt keyed on the outside with a thumbturn inside. To move that opening to codes or credentials, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, the Dormakaba Saffire LX-D is an RFID electronic deadbolt with BLE and electronic lock override, the Dormakaba Nova-D is an RFID multihousing smart electronic deadbolt, and the Codelocks CL2210 is an electronic mortise deadbolt. The KP400 is the closest on grade, matching the 310RC Grade 2; the CL2210 is mortise and needs a pocket rather than the 310RC bored prep.
21) I need a deadbolt on a classroom or institutional door - how does that differ from the Bravura 310RC Elite?
The Bravura 310RC Elite is a residential Grade 2 single cylinder deadbolt. Classroom-function deadbolts are a different animal: the Falcon D211 is a Grade 2 classroom function deadbolt with single cylinder operation, medium duty, in the D200 Series, and the Falcon D111 is the Grade 1 heavy duty classroom deadbolt with an adjustable backset. The Hager 3118 is a Grade 1 classroom deadbolt on a Schlage C keyway with a 6-pin cylinder, matching the keyway family the 310RC uses. The Corbin Russwin DL2211 is a Grade 1 cylindrical deadlock in classroom function for 1-3/4 inch doors.
22) Is there a decorative or solid bronze alternative to the Bravura 310RC Elite deadbolt?
The Bravura 310RC Elite is solid brass with a contemporary round face, offered in US15 satin nickel, US10B oil rubbed bronze and US19 black. For a heavier decorative look on the same cylinder x thumbturn function, the Emtek #11 Tuscany is a lost wax cast bronze deadbolt, and the Emtek 8323 Modern Disc is a brass deadbolt in a double cylinder function, so it is keyed on both faces rather than turned inside. The Baldwin Estates 8011 is a contemporary 1-5/8 inch double cylinder deadbolt, also keyed both sides.
23) I want a single lock that handles both latching and deadbolting instead of adding the Bravura 310RC Elite above a knob - what are my options?
The Bravura 310RC Elite is a deadbolt only, so it pairs above a separate knob or lever set. If you would rather buy one unit, the Falcon H2101 is a Grade 2 entrance interconnected lock with a single cylinder deadbolt built in, so the lever and bolt retract together. The Codelocks CL160 is a mortise latch with QuickCode function in a deadbolt configuration, light duty. The Detex DX Series is a hinge side locking deadbolt set with multi-point security for openings needing more than one bolt point. Each of these changes the door prep from the 2-1/8 inch single cross bore the 310RC uses.
24) What finishes does the Bravura 310RC Elite round deadbolt come in?
Three: US15 satin nickel, US10B oil rubbed bronze, and US19 black. All three are the same contemporary round rose, so a building standardizing on one look can mix them door to door and keep the same trim shape. The body is solid brass under the finish.
