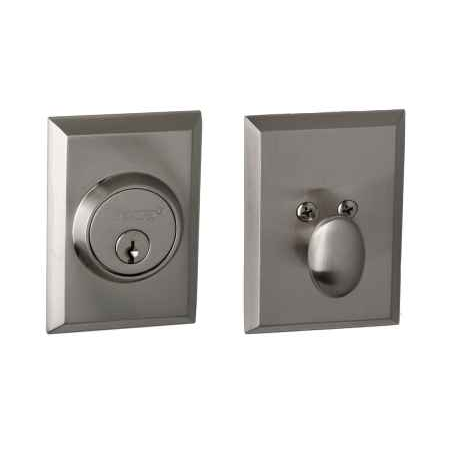

Bravura Grade 2 Rectangle Deadbolt
The Bravura Rectangle Deadbolt Grade 2 residential lock is elegantly designed with timeless durability and classic style.
Each piece combines a stunning designer finish, high-end style and smooth mechanics that delivers a one- of-a-kind experience that cannot be replicated.
The robust, all-metal construction provides improved security, durability, and smooth operation. All parts and accessories are included with instructions to make installation easy. A variety of finishes are available to match your desired aesthetic whether installed alone or combined with other complementary Bravura door hardware.
Features
- Easy to install
- Solid brass construction
- All parts and instructions included
- Full lip round corner strike plate
Specifications
- Door Prep
- 2-1/8" cross bore
- 1" edge bore
- 1" x 2-1/4" latch face
- Door Thickness
- 1-3/4" standard, 1-3/8" optional
- 2", 2-1/4", and 2-1/2" extension kits available (sold separately)
- Latches
- 2-3/8" to 2-3/4" adjustable latch standard (backset)
- Drive-in latch available (sold separately)
- Cylinder
- Schlage SC1 5-Pin C Keyway standard
- Strikes
- 9118R/S with reinforcement plate
- Functions
- Single cylinder
- Single cylinder operates with a key on the exterior side of the door and a thumb turn on the inside
Manufacturer Resources
Product Specs
- Subcategory:
- Deadbolts
- Series:
- Rectangle Deadbolts
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lock Function:
- Single Cylinder
- Product Type:
- Deadbolts
- Grade:
- Grade 2
- Product Attribute:
- Deadbolts
- Product Function:
- Cylinder x Thumbturn
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Bravura BV910005 – Frequently Asked Questions
1) Will the Bravura Rectangle deadbolt fit my existing deadbolt hole, or do I have to redrill the door?
Door prep for the Bravura Rectangle deadbolt is the standard residential bore: 2-1/8 inch cross bore, 1 inch edge bore, and a 1 x 2-1/4 inch latch face. That is the same prep most tubular deadbolts are already drilled for, so on a door that has one now it usually drops straight in. The latch is adjustable and covers both common backsets, 2-3/8 and 2-3/4 inches, so you do not need to measure the hole center before ordering.
2) Can I key a Bravura Rectangle deadbolt to my existing Schlage keys?
The cylinder ships as a Schlage SC1 5-pin C keyway as standard, so it runs on the same keyway family as Schlage residential locks. When you order you have to pick a keying option: keyed different, or keyed alike if you want a group of units to run on one key. That is the choice that matters for a landlord or property manager standardizing a building.
3) Is a Bravura Rectangle deadbolt a drop-in replacement for a Schlage or Kwikset deadbolt on the same door?
On prep, yes for any deadbolt drilled to the standard 2-1/8 inch cross bore with a 1 inch edge bore, and the adjustable latch covers 2-3/8 or 2-3/4 inch backset either way. On keys, it depends what you are pulling off: the Bravura comes with a Schlage SC1 5-pin C keyway, so it can carry the same key as existing Schlage-keyed locks but not a Kwikset KW1 key. Swapping a Kwikset out means the building's old keys will not run this bolt.
4) What single cylinder deadbolt should I specify instead of the Bravura Rectangle Deadbolt on a fire rated opening?
The Bravura Rectangle Deadbolt is a Grade 2 residential deadbolt. Where the door assembly requires a fire rated deadbolt, the Hager 3215 is a Grade 2 single cylinder deadbolt with a 1 inch throw, carries a fire rating, and covers 1-3/8 inch to 1-3/4 inch doors - the same standard 1-3/4 inch and optional 1-3/8 inch thicknesses the Bravura is built for. The Hager 3115 is also Grade 2 cylinder x thumbturn, fire rated, and uses a Schlage C keyway, which keeps a facility on the SC1 key section the Bravura already uses. For a heavier spec, the Cal-Royal CRB800 is a heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch.
5) What is the closest Grade 2 single cylinder deadbolt to the Bravura Rectangle Deadbolt from another brand?
The Bravura Rectangle Deadbolt is a Grade 2 single cylinder deadbolt, cylinder outside and thumbturn inside. The Arrow DBX61 matches that on both counts - it is a Grade 2 deadbolt with a cylinder x thumbturn function. The Cal-Royal CB160 is also Grade 2 cylinder x thumbturn and adds a tamper-resistant cylinder guard. Callan's Model 200S-G2 is a Grade 2 single cylinder deadbolt with round trim, where the Bravura carries a rectangular trim, so the Callan is the one to look at when the escutcheon shape needs to change and the grade does not.
6) What deadbolt should I use instead of the Bravura Rectangle Deadbolt on a commercial opening that calls for Grade 1?
The Bravura Rectangle Deadbolt is a Grade 2 residential deadbolt, so a Grade 1 line answers a heavier spec. The Dexter DB1000 single cylinder is Grade 1 cylinder x thumbturn for doors 1-3/8 inch to 1-7/8 inch thick. Deltana's CL200LM is a Grade 1 single cylinder deadbolt, and the Delaney LM Series is a Grade 1 single cylinder deadbolt supplied less core for an interchangeable core keying program. The Accentra D111 is Grade 1 cylinder x thumbturn with a 2-3/8 inch backset and a 1-3/8 inch to 1-3/4 inch door thickness range.
7) I need a keyed deadbolt on both sides of the door instead of a thumbturn - what replaces the Bravura Rectangle Deadbolt?
The Bravura Rectangle Deadbolt is keyed outside with a thumbturn inside, so a glass-adjacent or double-keyed opening needs a different function. The Hager 3214 is a Grade 2 double cylinder deadbolt with a Schlage C keyway for doors 1-3/8 inch to 1-3/4 inch thick, which keeps both the grade and the SC keyway the Bravura uses. The Dexter DB2000 double cylinder is Grade 2 for the same 1-3/8 inch to 1-3/4 inch range, and the Delaney LU Series is a Grade 2 double cylinder deadbolt in stainless steel US32D.
8) Which deadbolts look like the Bravura Rectangle Deadbolt but are not a drop-in substitute for it?
Several deadbolts share the word but not the function. The Arrow E60 is a Grade 2 exit deadlock with a blank plate outside and a thumbturn inside, so it never takes a key on the exterior the way the Bravura does. The Arrow E61 in 26D is a Grade 2 single cylinder deadlock prepped for a small format interchangeable core and shipped less core, so it needs a core supplied before it will work, where the Bravura comes with a Schlage SC1 5-pin C keyway cylinder. The Corbin Russwin DL3211 is a Grade 1 cylindrical deadlock in a cylinder x blank function for 1-3/4 inch doors, again with no inside turn. The Callan Model 205S is a one-sided half-bore deadbolt, which does not use the full 2-1/8 inch cross bore the Bravura needs.
9) Which deadbolt matches the Bravura Rectangle Deadbolt's Schlage SC1 keyway so a building stays on one key?
The Bravura Rectangle Deadbolt ships with a Schlage SC1 5-pin C keyway as standard. The Hager 3115 is a Grade 2 cylinder x thumbturn deadbolt on the Schlage C keyway, and the Hager 3214 puts the same keyway on a Grade 2 double cylinder for glass-adjacent doors. The Hager 3118 is a Grade 1 classroom deadbolt on the Schlage C keyway with a 6-pin cylinder, so it takes the same key section at a higher pin count. The Dormakaba D900 small case mortise deadbolt is supplied keyed different with SC keyways where the opening is mortise prepped rather than bored.
10) Can a classroom function deadbolt replace the Bravura Rectangle Deadbolt in a school?
The Bravura Rectangle Deadbolt is a residential single cylinder deadbolt keyed outside with a thumbturn inside. A classroom function changes who can throw the bolt: the Falcon D211 is a Grade 2 classroom function deadbolt with single cylinder operation at medium duty, and the Falcon D111 is the Grade 1 heavy duty classroom deadbolt with an adjustable backset, matching the Bravura's adjustable latch approach. The Hager 3118 is a Grade 1 classroom deadbolt with a 6-pin cylinder on the Schlage C keyway and carries a fire rating.
11) What is the difference between single cylinder and double cylinder on this Bravura deadbolt?
Single cylinder means a key outside and a thumbturn inside, which is what the Bravura Rectangle deadbolt is. Nobody needs a key to get out, so it is the usual pick for an entry door. If a door has glass beside or in it and you want to stop someone reaching through to turn the bolt, you want a key on both sides instead, which is a double cylinder unit such as the Delaney LU Series Grade 2 double cylinder deadbolt or the Callan Model 210S.
12) Is a Grade 2 deadbolt strong enough for a rental unit entry door?
Grade 2 is the middle ANSI/BHMA tier and the Bravura Rectangle is a residential-duty lock, solid brass, with a full lip round corner strike plate and a 9118R/S strike with reinforcement plate. For apartment and single-family entry doors that is the normal spec. For a high-traffic commercial opening, step up: the Delaney LM Series and the Deltana CL200LM are Grade 1 single cylinder deadbolts with the same cylinder x thumbturn function.
13) What comes in the box with a Bravura Rectangle deadbolt, and do I need to buy a strike separately?
Everything for a standard install ships with it: cylinder, thumbturn, adjustable latch, the 9118R/S strike with its reinforcement plate, all screws and instructions. The only things sold separately are the thicker-door extension kits and the drive-in latch. You would order the drive-in latch if the door is bored with a round edge hole and no latch face mortise cut.
14) What deadbolt covers a door thicker than the Bravura Rectangle Deadbolt's standard range?
The Bravura Rectangle Deadbolt is built for 1-3/4 inch doors standard with 1-3/8 inch optional, and extension kits cover 2 inch, 2-1/4 inch, and 2-1/2 inch doors. If a single part number should span the thicker door without a kit, the Corbin Russwin DL3011 is a Grade 1 cylindrical deadlock rated for 1-3/4 inch to 2-1/4 inch doors. The Deltana 7312KA2 covers 1-3/8 inch to 2 inch doors as a Grade 3 double cylinder deadbolt, which changes the function to keyed both sides.
15) The Bravura Rectangle Deadbolt has square trim - which comparable deadbolts change the trim shape without changing the function?
The Bravura Rectangle Deadbolt carries a rectangular escutcheon on a single cylinder, cylinder x thumbturn function. Keeping that function and changing the look, the Brinks Mendocino Series is a contemporary square single cylinder deadbolt with a 4-way adjustable backset, and the Brinks Raleigh Series is the transitional round version of the same function. The Callan Model 200S-G2 is a Grade 2 single cylinder deadbolt with round trim, and the Emtek #11 Tuscany is a lost wax cast bronze cylinder x thumbturn deadbolt for a period-look opening.
16) Is there a lighter duty single cylinder deadbolt than the Bravura Rectangle Deadbolt for interior or low traffic doors?
The Bravura Rectangle Deadbolt is Grade 2. Below that, the Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with an adjustable backset for doors 1-3/8 inch to 1-3/4 inch thick, which matches the adjustable 2-3/8 inch to 2-3/4 inch backset the Bravura ships with. The Cal-Royal LSD is Grade 3 cylinder x thumbturn over the same door thickness range with an ADA ergonomic thumbturn, useful where the turn has to be operable without tight grasping. The Callan Model 200S is a Grade 3 single cylinder deadbolt with square trim.
17) What can I use in place of the Bravura Rectangle Deadbolt on a door that is not bored for a standard deadbolt?
The Bravura Rectangle Deadbolt needs a 2-1/8 inch cross bore, a 1 inch edge bore, and a 1 inch by 2-1/4 inch latch face. When the door will not take that prep, the Codelocks CL200 is a surface mounted deadbolt with key override, and the CL2200 is an electronic surface deadbolt in brushed steel. For a mortise pocket rather than a bored door, the Emtek 2050 and 2051 are European mortise deadbolts with an integrated roller latch in square and round trim, and the Dormakaba M1960 is a single cylinder cylinder x turn deadbolt supplied with no trim.
18) Is there a keyless or electronic version of the Bravura Rectangle Deadbolt for units with turnover?
The Bravura Rectangle Deadbolt is a keyed mechanical deadbolt using a Schlage SC1 cylinder, so rekeying is the way credentials change. Where codes or credentials suit the property better, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, which holds the same grade. The Codelocks CL2210 is an electronic mortise deadbolt and the CL2200 is an electronic surface deadbolt, both avoiding a standard bored prep. For multihousing card access, the Dormakaba Nova-D is an RFID smart electronic deadbolt and the Saffire LX-D is an RFID electronic deadbolt with BLE and electronic lock override.
19) Which single cylinder deadbolt gives a fixed 2-3/4 inch backset instead of the Bravura Rectangle Deadbolt's adjustable latch?
The Bravura Rectangle Deadbolt ships with a 2-3/8 inch to 2-3/4 inch adjustable latch, so one part number covers either backset. Where a fixed 2-3/4 inch backset is preferred, the Deltana CL200LA is a Grade 2 single cylinder deadbolt built to 2-3/4 inch, and the CL200LAIC is the same Grade 2 cylinder x thumbturn lock at 2-3/4 inch prepped for an interchangeable core and supplied without a cylinder. For a fixed 2-3/8 inch backset, the Accentra D111 is a Grade 1 single cylinder deadbolt.
20) If the entry needs a knob or lever and a deadbolt together, what replaces a standalone Bravura Rectangle Deadbolt?
The Bravura Rectangle Deadbolt is a deadbolt only, with no latching handle. Where the opening needs both in one prep, the Falcon H2101 is an entrance interconnected lock with a Grade 2 single cylinder deadbolt, so the deadbolt and the latch retract together on the inside. The Baldwin Estates 8011 is a contemporary 1-5/8 inch double cylinder deadbolt in an entrance function for openings that need keying on both faces.
21) What finishes does the Bravura Rectangle deadbolt come in for matching the rest of my door hardware?
Four finishes: US15 satin nickel, US10B oil rubbed bronze, US19 black, and US26 polished chrome. Those are the standard finish codes, so they line up with matching Bravura levers and knobs on the same opening and with hardware you already have elsewhere in the building carrying the same US number.
