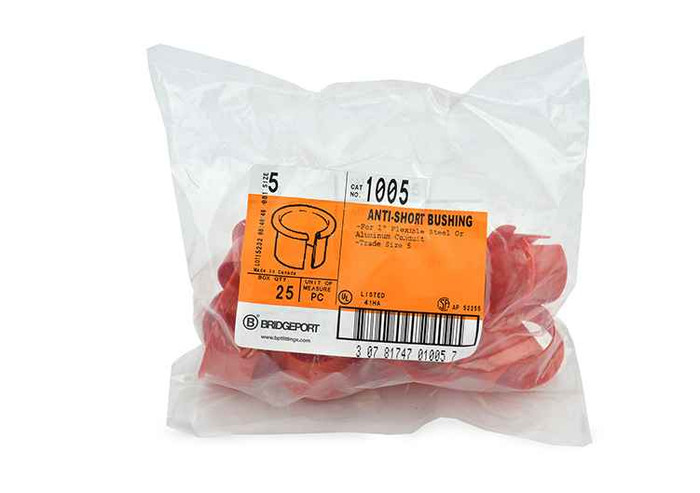

Bridgeport Anti-Short Bushings "Redheads" - Polyethylene

Bridgeport Fittings Anti-Short Bushings 2" - 2-1/2" Red Polyethylene Redheads Wire Protection System

(No reviews yet) Write a Review

Model: BPF-REDHEADS-PE

In Stock (leaves warehouse same day if ordered before 3pm ET)

$0.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings Anti-Short Bushings 2" - 2-1/2" Red Polyethylene Redheads Wire Protection System

Professional Wire Protection for Armored Cable Installations

Bridgeport Fittings Anti-Short Bushings deliver reliable wire protection in armored cable applications with durable polyethylene construction and distinctive red color identification. These professional-grade bushings feature one-piece plastic construction that resists corrosion while providing essential protection between wire and armor, ensuring long-lasting electrical installations with NEMA FB-1 rating and UL-514B compliance.

Professional Features & Benefits

  • 2" - 2-1/2" Size Range: Accommodates standard armored cable applications with precise dimensional compatibility for reliable fit and protection.
  • Red Polyethylene Construction: High-visibility red color provides easy identification while polyethylene material offers superior corrosion resistance and durability.
  • NEMA FB-1 Rating: Meets professional electrical standards for anti-short bushing applications, ensuring code compliance and reliable performance.
  • Tool-Free Installation: Simply insert into cable end or connecting point without requiring additional tools, reducing installation time and labor costs.
  • UL-514B Listed: UL File E11259 certification provides assurance of safety and performance standards for professional electrical applications.
  • One-Piece Design: Lightweight yet sturdy plastic construction eliminates multiple components while adding to project longevity and reliability.
  • American Manufacturing: Made in the United States with Bridgeport Fittings quality and manufacturing standards for consistent performance.

Technical Specifications

  • Buy American: When you buy Bridgeport, you buy from an American manufacturing company
  • Country Of Origin: United States
  • Csa File Number: LR24719M5
  • Department: Electrical
  • Dimensions A: 1/1/04
  • Dimensions B: 2/9/16
  • Division: Electrical H1
  • Easy To Use: Simply insert the bushing into the end of your cable or connecting point – no tools required
  • Economical: Bushings offer an inexpensive way to prevent costly damage to electrical wiring
  • Field Application: Polyethylene "Redheads" prevent damage to wire installation when placed between the wire and armore
  • Lightweight Sturdy: One-piece plastic construction resists corrosion and adds to the life of your project
  • Nema Rating: FB-1
  • Nema Standard: FB-1
  • Primary Materials: Plastic
  • Product Color: Red
  • Product Finish: Plain
  • Product Material: Plastic
  • Product Size: 2" - 2-1/2"
  • Standard Package Quantity: 40
  • Sub Division: Electrical-E H2
  • Ul File: E11259
  • Ul File Number: E11259
  • Ul Standard: UL-514B
  • Unit Quantity: 10
  • Unspsc: 39121312

Professional Applications

  • Armored Cable Terminations
  • Commercial Electrical Installations
  • Industrial Wiring Systems
  • Residential Electrical Projects
  • Maintenance and Repair Operations
  • New Construction Electrical Work
  • Retrofit and Upgrade Projects

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers proven reliability with American manufacturing standards, UL-514B listing, and NEMA FB-1 rating compliance. The corrosion-resistant polyethylene construction and one-piece design ensure long-term durability while the economical solution prevents costly wire damage in professional electrical installations.

Manufacturer Resources

Product Specs

Country Of Origin:
United States
Csa File Number:
LR24719M5
Department:
Electrical
Dimensions A:
1/1/04
Dimensions B:
2/9/16
Division:
Electrical H1
Nema Rating:
FB-1
Nema Standard:
FB-1
Primary Materials:
Plastic
Product Color:
Red
Product Finish:
Plain
Product Material:
Plastic
Product Size:
2" - 2-1/2"
Standard Package Quantity:
40
Sub Division:
Electrical-E H2
Certifications:
E11259
Ul File Number:
E11259
Ul Standard:
UL-514B
Unit Quantity:
10
Unspsc:
39121312
Product Type:
Fitting

Bridgeport Fittings BPF-REDHEADS-PE – Frequently Asked Questions

1) Which Bridgeport Redhead anti-short bushing size do I need for 12/2 MC cable?
For 14/2, 14/3 and 12/2 armored cable, use the Bridgeport Redhead size 0 (5/16 inch), part number 1000. The sizing runs by cable make-up: 14/4, 12/3, 6/1 and 4/1 take size 1 (3/8 inch, part 1001); 12/4, 10/2, 10/3 and 2/1 take size 2 (part 1002); 10/4, 8/2, 8/3 and 1/1 take size 3 (1/2 inch, part 1003); and 8/4, 6/2, 6/3, 4/2, 4/3 and 6/4 take size 4 (3/4 inch, part 1004).
2) What does the 2 inch to 2-1/2 inch Bridgeport Redhead bushing cover?
That is the largest Redhead in the range, size 8, part number 1008, covering 2 inch through 2-1/2 inch. Above the size 4 bushing the sizing is called out by trade size rather than by conductor count, running 1 inch (part 1005), 1-1/4 inch (1006), 1-1/2 inch (1007), then 2 inch to 2-1/2 inch (1008). If you are terminating large-diameter armored or metal-clad cable, this is the one to pull.
3) What does an anti-short bushing actually do in an armored cable termination?
It sits between the conductors and the cut end of the armor. Cut BX or MC and you leave a sharp spiral edge that will chew through conductor insulation over time, especially with vibration. The Redhead is a one-piece plastic bushing that pushes into the cable end so the wires ride on plastic instead of steel. The red color is deliberate: an inspector can see at a glance from the connector that a bushing was installed.
4) Are Bridgeport Redhead anti-short bushings UL listed for commercial work?
They are listed to UL-514B under UL file E11259, and they carry the NEMA FB-1 rating for fittings. There is also a CSA file, LR24719M5, for work on the Canadian side. Those are the listings a plan reviewer or facility electrical inspector will ask for on a commercial or institutional job.
5) Do I need a tool or a crimper to install Bridgeport Redheads?
No tools. The bushing is pushed by hand into the end of the cable or the connecting point, then the connector is tightened over it. That is the whole install, which is why electricians carry a bag of them on the cart rather than a size kit at the bench.
6) Are Bridgeport anti-short bushings made in the USA for Buy American jobs?
Country of origin is the United States. On federally funded or agency work with domestic sourcing language in the spec, that is the line the submittal needs. The UNSPSC code for procurement systems is 39121312.
7) How do Bridgeport Redheads come packaged for a stockroom or truck stock?
Unit quantity is 10 and the standard package quantity is 40. For MRO stockrooms that means you can shelve them in small counts by size rather than opening a bulk carton, which matters when you are keeping five or six sizes on hand for repair work.
8) Will a plastic anti-short bushing hold up in a damp or corrosive area?
The Redhead is polyethylene, a one-piece plastic body, so there is nothing in it to corrode the way a metal insert would. That is the reason it gets used in industrial and mechanical spaces as well as dry commercial interiors.
