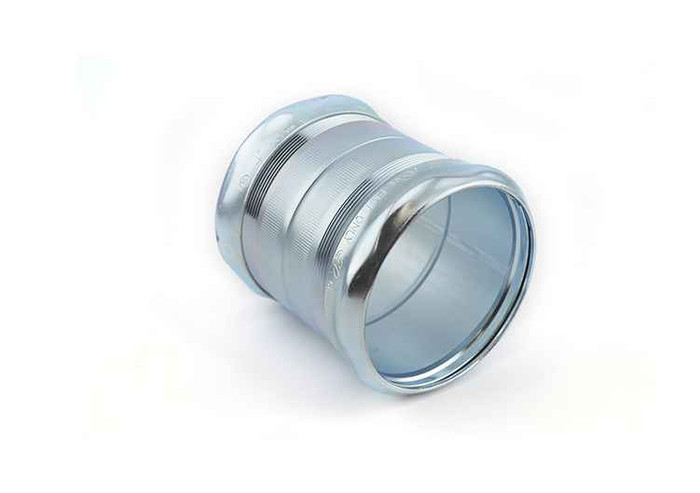

Bridgeport Fittings EMT Compression Coupling - Steel with Zinc Electroplate Finish

Bridgeport Fittings EMT Compression Coupling - Steel with Zinc Electroplate Finish

(No reviews yet) Write a Review

Model: BF-265

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
$0.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings EMT Compression Coupling - Steel with Zinc Electroplate Finish

Professional EMT Conduit Connection Solution

Bridgeport Fittings EMT Compression Coupling delivers reliable conduit joining performance with steel construction and zinc electroplate finish. This screw-on compression fitting securely holds both ends of EMT conduit in place, providing concrete-tight protection for electrical installations where aggregate could abrade conductor insulation.

Professional Features & Benefits

  • Steel Construction with Zinc Electroplate: Provides long-term durability and corrosion resistance in demanding environments
  • Screw-On Compression Design: Ensures secure connection of both EMT conduit ends with reliable compression fitting technology
  • Concrete-Tight Protection: Prevents concrete aggregate from abrading conductor insulation during installation and service
  • NEMA FB-1 Rating: Meets professional electrical standards for field application performance
  • UL Listed (E24001): Certified for safety and compliance in electrical installations
  • Corrosion-Resistant Finish: Zinc plating extends service life in corrosive environments

Technical Specifications

  • Compression Type: This EMT coupling screw-on compression fitting holds both ends of EMT conduit securely in place
  • Concrete Tight: The coupling is perfect for applications where concrete aggregate could abrade conductor insulation
  • Country Of Origin: China
  • Department: Electrical
  • Division: Electrical H1
  • Field Application: Used to join two lengths of EMT. Concrete-tight.
  • Nema Rating: FB-1
  • Product Finish: Zinc electro-plate
  • Product Material: Steel
  • Sub Division: Electrical-E H2
  • Ul File: E24001
  • Zinc Plated Steel Body: The steel body is zinc plated for long-term use in corrosive environments

Professional Applications

  • Commercial Electrical Installations
  • Industrial Conduit Systems
  • Concrete Pour Applications
  • Underground Electrical Work
  • Corrosive Environment Installations
  • EMT Conduit Extensions
  • Professional Electrical Contracting

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers professional-grade electrical fittings with UL listing (E24001) and NEMA FB-1 rating for reliable performance. The zinc electroplate finish and steel construction ensure long-term durability in demanding electrical applications.

Manufacturer Resources

Product Specs

Department:
Electrical
Division:
Electrical H1
Field Application:
Used to join two lengths of EMT. Concrete-tight.
Nema Rating:
FB-1
Product Finish:
Zinc electro-plate
Product Material:
Steel
Sub Division:
Electrical-E H2
Certifications:
E24001
Product Type:
Conduit Coupling
Product Subgroup:
Conduit Fittings
Product Group:
Conduit & Raceway

Bridgeport Fittings BF-265 – Frequently Asked Questions

1) Can Bridgeport EMT compression couplings be used in a concrete pour?
Yes. The Bridgeport steel EMT compression coupling is concrete-tight, so it can be embedded in a pour without concrete aggregate working into the joint and abrading conductor insulation. That is the main reason to pick a compression coupling over a set-screw type for slab work. It is not rated raintight or for direct burial by anything stated here, so treat concrete-tight as the limit of the claim.
2) Compression coupling or set-screw coupling for EMT, which do I need?
Use the compression type when the joint has to be concrete-tight, which is the case for anything poured into a slab or otherwise exposed to aggregate. The Bridgeport compression coupling screws down onto both conduit ends and seals the joint. A set-screw coupling is quicker and cheaper and is fine for dry indoor exposed or above-ceiling runs where no concrete-tight rating is required. If the drawing calls for concrete-tight, the set-screw will not satisfy it.
3) Is the Bridgeport EMT compression coupling UL Listed, and what is the file number?
Yes, it carries UL file E24001, and it is rated NEMA FB-1. Those two together are what an inspector or a spec writer on a commercial or institutional job normally wants to see on an EMT fitting submittal.
4) Do I need any special tool to install this EMT compression coupling?
No specialty tool. It is a screw-on compression design: slide the conduit into each end and tighten the compression nuts down with a wrench so both ends are gripped. No threading of the EMT and no set screws. On the larger 3-1/2 and 4 inch sizes plan on a proper wrench, not channel locks, to get the nuts fully seated, since the concrete-tight performance depends on that.
5) Can I use this coupling to join EMT to rigid or IMC conduit?
No. This is an EMT coupling, made to join two lengths of EMT to each other. Rigid and IMC are threaded conduits and need a combination coupling made for that transition, not a compression EMT coupling.
6) Will a zinc plated steel EMT coupling hold up in a damp or corrosive area?
The body is steel with a zinc electro-plate finish, which is the standard corrosion protection for EMT fittings in commercial interiors, plant spaces and damp environments. For continuously wet, chemical or coastal exposure, steel EMT and its fittings are generally the wrong system regardless of plating, and that call belongs with the engineer of record.
7) Does the Bridgeport compression coupling provide an equipment ground path across the joint?
It is a steel-bodied fitting, and steel compression EMT couplings are the type used where the raceway itself is relied on for grounding continuity. Where a job specifies a separate equipment grounding conductor, or where the coupling is being embedded, pull the EGC anyway rather than depending on the raceway alone.
