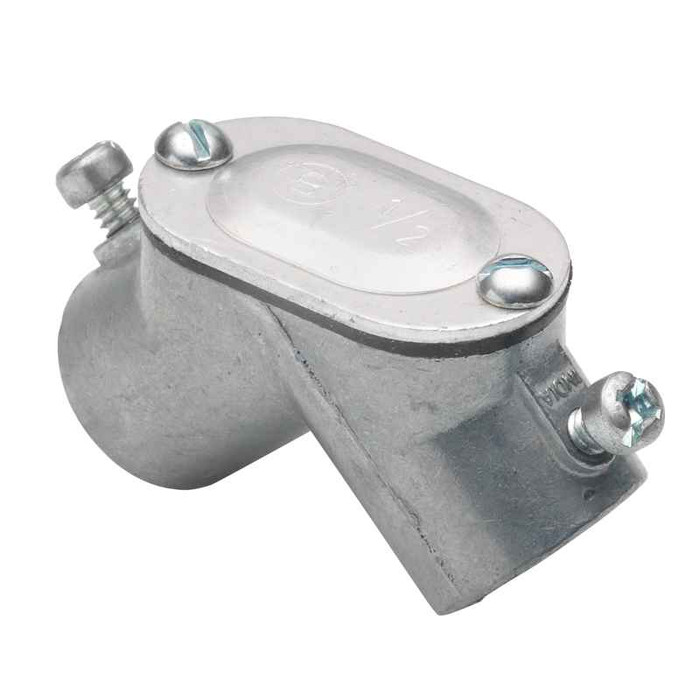

Bridgeport Fittings EMT Pull Elbow 90° Bend with Removable Aluminum Cover
Professional EMT Conduit Connection Solution
The Bridgeport Fittings EMT Pull Elbow provides reliable 90-degree conduit connections with zinc die cast construction and removable aluminum cover for enhanced wire pulling access. This professional-grade fitting features ball burnished finish and zinc electro-plated cover for superior corrosion resistance and long-term performance in electrical installations.
Professional Features & Benefits
- Zinc Die Cast Construction: Naturally resistant to corrosion for long-term durability in any environment
- Removable Aluminum Cover: Facilitates wire pulling and ensures easy access for installation and maintenance
- Ball Burnished Finish: Mirror smooth surface reduces wire damage and provides professional appearance
- Zinc Plated Steel Set Screws: Ensures secure EMT conduit fastening once in place
- NEMA FB-1 Rating: Meets professional electrical standards for reliable performance
- UL Listed: File E9391 certification ensures compliance with safety standards
Technical Specifications
- Country Of Origin: India
- Department: Electrical
- Division: Electrical H1
- Field Application: Used to connect two lengths of EMT to form a 90 Degree bend. Removable Aluminum cover to facilitate
- Nema Rating: FB-1
- Product Finish: Ball burnished, mirror smooth, Cover: Zinc electro-plate
- Product Material: Zinc Die Cast
- Removable Aluminum Cover: Bridgeport pull elbows feature a removable aluminum cover to facilitate wire pulling and ensure eas
- Sub Division: Electrical-E H2
- Ul File: E9391
- Zinc Die Cast Body: The zinc die cast body is naturally resistant to corrosion for long-term use in any environment
- Zinc Plated Steel Set Screws: The set screws ensure that the EMT conduit can be securely fastened once in place
Professional Applications
- Commercial Electrical Installations
- Industrial Conduit Systems
- Residential Electrical Projects
- Institutional Facilities
- Retail and Office Buildings
- Educational Facilities
- Healthcare Facilities
Why Choose Bridgeport Fittings Quality?
Bridgeport Fittings delivers professional-grade electrical fittings with UL listing and NEMA FB-1 rating for reliable performance. The zinc die cast construction and specialized finishes ensure long-term durability and corrosion resistance in demanding electrical applications.
Manufacturer Resources
Product Specs
- Department:
- Electrical
- Division:
- Electrical H1
- Nema Rating:
- FB-1
- Product Finish:
- Ball burnished, mirror smooth, Cover: Zinc electro-plate
- Product Material:
- Zinc Die Cast
- Sub Division:
- Electrical-E H2
- Certifications:
- E9391
- Product Type:
- Pulling Elbow
- Product Subgroup:
- Conduit Bodies & Covers
- Product Group:
- Conduit & Raceway
Bridgeport Fittings 62-DC – Frequently Asked Questions
1) What EMT sizes does the Bridgeport pull elbow come in?
Three trade sizes: 1/2 inch (part 61-DC), 3/4 inch (62-DC) and 1 inch (63-DC). Order by the trade size of the EMT you are running, and use the same size on both openings since the elbow joins two lengths of EMT of the same trade size to form the 90 degree bend.
2) Does this Bridgeport elbow use set screws or a compression connection to hold the EMT?
Set screws. The elbow uses zinc plated steel set screws that clamp the EMT once it is seated. No threading, no crimping and no compression rings, so you can install it on plain cut EMT with a screwdriver or nut driver. Set screw fittings are for dry indoor locations; if the run needs a raintight or concrete tight connection, a compression style fitting is the right choice instead.
3) Can I pull wire through this elbow instead of bending EMT with a bender?
That is exactly what it is for. The cover comes off so you can reach into the elbow and feed or pull conductors through the turn, which saves fighting a 90 degree bend in a long pull. The body is a fitting, not a junction box, so it is intended as a pulling point at the corner rather than a place to make splices.
4) Is the Bridgeport pull elbow UL listed for a commercial inspection?
It is UL Listed under file E9391 and carries a NEMA FB-1 rating, which is the standard covering fittings for conduit and cable assemblies. Those are the two designations an inspector or a spec writer on a commercial or institutional job will ask for.
5) Will the inside of the fitting scuff or nick THHN insulation during a hard pull?
The interior is ball burnished to a mirror smooth finish specifically to reduce wire damage as conductors drag through the turn. The cover is separately zinc electro-plated.
6) Is a zinc die cast pull elbow going to corrode in a damp mechanical room or parking garage?
The body is zinc die cast, which resists corrosion on its own, and the cover is zinc electro-plated. That holds up in ordinary indoor and damp-adjacent environments. It is still a set screw EMT fitting, so it is not a wet location or direct burial solution. For genuinely wet or outdoor exposure, move to raintight compression fittings or a rigid conduit system.
7) Does the pull elbow come with the cover and screws, or do I order those separately?
The aluminum cover and the zinc plated steel set screws are part of the fitting. Nothing else is needed to land two EMT runs into it. You supply only the EMT itself and any straps or supports the run requires.
8) Where is Bridgeport's EMT pull elbow manufactured?
Country of origin is India. It carries Bridgeport's UL listing under file E9391 regardless of where it is made, which is what matters for submittals on federal, healthcare or education work where the listing has to be on record.
