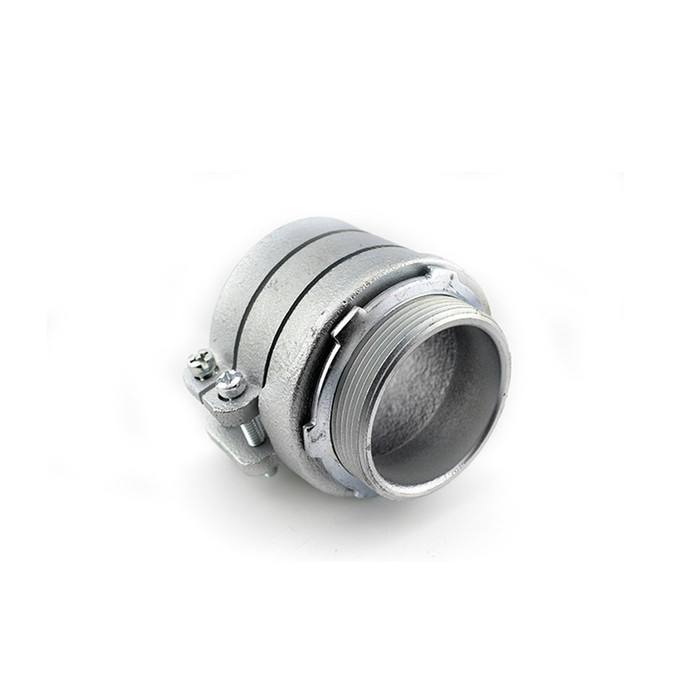

Bridgeport Fittings 416 2" Malleable Iron Squeeze Connector for Flexible Conduit

Bridgeport Fittings 416 2" Malleable Iron Squeeze Connector for Flexible Conduit

(No reviews yet) Write a Review

Model: BPF416

In Stock (leaves warehouse same day if ordered before 3pm ET)

$35.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings 416 2" Malleable Iron Squeeze Connector for Flexible Conduit

The Bridgeport Fittings 416 is a 2" squeeze connector built from malleable iron to terminate flexible metal conduit (FMC) at boxes, panels, and enclosures. Electricians specify the 416 when a robust, set-screw-free connection is needed for 2" FMC runs feeding motors, panels, or lighting circuits. As part of Bridgeport Fittings' 416 series, this connector uses a squeeze-style connection that compresses evenly around the conduit for a firm, dependable mechanical grip. The malleable iron body is engineered to withstand the demands of commercial and industrial electrical installations, giving contractors and electricians a reliable 2" connector for flexible conduit terminations on the job site.

Key Features

  • Trade Size: Sized for 2" flexible metal conduit (FMC), matching standard 2" knockouts on boxes and enclosures.
  • Durable Construction: Malleable iron body provides the strength and impact resistance needed for demanding electrical installations.
  • Squeeze-Type Connection: The squeeze connector design compresses uniformly around the conduit, delivering a secure, vibration-resistant termination.
  • Flexible Conduit Compatibility: Purpose-built to connect flexible metal conduit runs to junction boxes, panels, and enclosures.
  • 416 Series Design: Part of Bridgeport Fittings' 416 squeeze connector line, offered specifically in the 2" size for flexible conduit applications.
  • Simplified Installation: The squeeze mechanism allows electricians to secure the conduit connection without threading individual set screws, speeding up rough-in work.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Flexible Metal Conduit (FMC) Terminations
  • Commercial and Industrial Electrical Panels
  • Junction Box and Enclosure Connections
  • Panelboard and Load Center Wiring
  • Motor and Equipment Conduit Connections
  • New Construction and Renovation Electrical Work

Why Bridgeport Fittings?

Bridgeport Fittings manufactures the 416 squeeze connector from malleable iron to provide a rugged, long-lasting termination point for 2" flexible metal conduit. The squeeze-style connection method gives electricians a secure, dependable grip on the conduit, making the 416 a practical choice for professional electrical installations that demand a durable, code-compliant connector. Whether used in new installations or retrofit projects, the 416 squeeze connector reflects Bridgeport Fittings' focus on solid, functional conduit fittings for the electrical trade.

Manufacturer Resources

Product Specs

list_batch:
BPF-20260918
Product Type:
AC/MC/Flex Connector
Connection Type:
Squeeze
Department:
Electrical
Product Subgroup:
Flexible Conduit & Fittings
Product Material:
Malleable Iron
Product Size:
2"
Product Group:
Conduit & Raceway

Bridgeport Fittings BPF416 – Frequently Asked Questions

1) What is the difference between the Bridgeport Fittings 416 squeeze connector and the Thomas & Betts 306 Tite-Bite connector?
Both terminate flexible metal conduit at a box or enclosure, but they cover different trade sizes and grip styles. The Bridgeport 416 is a 2 inch squeeze connector with a malleable iron body, so it lands in a 2 inch knockout for larger FMC runs feeding panels or motors. The Thomas & Betts 306 is a straight Tite-Bite connector for 1 inch FMC and is non-insulated. If the conduit on the job is 1 inch, the 416 will not fit it; if the run is 2 inch, the 306 will not.
2) I need a liquidtight connector, not a standard FMC fitting - is the 416 the right part?
No. The Bridgeport Fittings 416 is a squeeze connector built for flexible metal conduit terminations, not for liquidtight flexible conduit. For a liquidtight termination, the RACO 4734 is a SWIVEL-LOK Series 1 inch Type B liquidtight multi-position connector in nylon, sold 100 to a pack. Note the size difference as well: the 4734 is a 1 inch fitting while the 416 is sized at 2 inch.
3) What's the difference between a squeeze connector and a set-screw connector for FMC?
A squeeze connector like the 416 clamps the conduit with a saddle that compresses evenly around the whole circumference, so there are no individual set screws to thread and tighten during rough-in. Set-screw types bite the conduit at one or two points. The even clamp is why electricians pick the squeeze style for vibration-prone terminations feeding motors and equipment.
4) Is the Bridgeport 416 connector die-cast zinc or iron?
Malleable iron. That's the reason it gets specified over die-cast on commercial and industrial work: iron takes impact and handling abuse in panel rooms and mechanical spaces better than a zinc casting, which matters on a 2 inch run that carries real weight.
5) If my FMC run steps down to 1 inch partway through the job, what connector pairs with the 416?
The Bridgeport Fittings 416 covers the 2 inch terminations. For the 1 inch portions of the same FMC run, the Thomas & Betts 306 is a straight Tite-Bite connector sized for 1 inch FMC in a non-insulated version. Using both lets you keep every flexible conduit termination on the job matched to its trade size rather than forcing one fitting to cover two.
6) Is the RACO 232MSCM an alternative to the Bridgeport 416?
They serve different roles in the same rough-in. The Bridgeport Fittings 416 is a 2 inch connector that terminates flexible metal conduit into a box or enclosure. The RACO 232MSCM is the box itself - a 4 inch square welded box, 2-1/8 inches deep, with an M bracket and STAB-IT connector feature. You would mount a box like the 232MSCM and land conduit in it with a connector such as the 416, not choose one over the other.
7) Will a 3M SC0001 connector work in place of the Bridgeport 416?
No - the two are not the same class of product. The Bridgeport Fittings 416 is a malleable iron squeeze connector that mechanically terminates 2 inch flexible metal conduit at a box or panel. The 3M SC0001 is a stem connector from the SC series rated up to 35 kV for 2 and 1 AWG conductors, which is a conductor connection device rather than a conduit fitting. Ordering the SC0001 for a 2 inch FMC termination will leave the conduit unsupported at the knockout.
8) What is the manufacturer part number for the 2 inch Bridgeport squeeze connector?
Order it as Bridgeport Fittings 416. That's the full MPN for the 2 inch malleable iron squeeze connector in the 416 line, and it's the number to quote when standardizing 2 inch FMC terminations across a facility so every box lands the same way.
9) Can I use the Bridgeport 416 on an existing panel during a retrofit, or is it new-construction only?
Both. It's used on new rough-in and on renovation work, terminating FMC into existing junction boxes, panelboards, and load centers as long as there's a clear 2 inch knockout to land it in.
