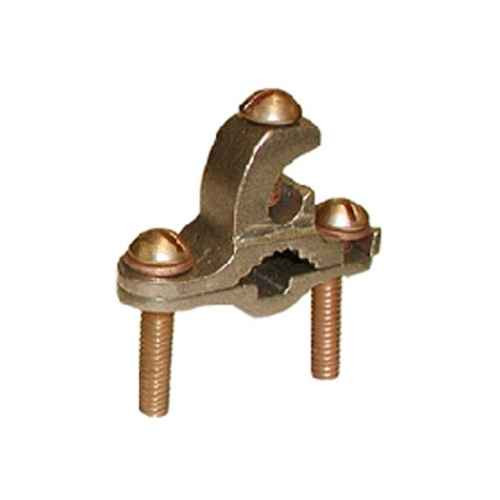

Bridgeport Rebar Ground Clamps - Direct Burial Type

Bridgeport Fittings Bronze Direct Burial Ground Clamps 1/2" - 1" Trade Size with Integral Lay-In Lug

(No reviews yet) Write a Review

Model: RB-17
$1,000.00
$14.47

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
$14.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings Bronze Direct Burial Ground Clamps 1/2" - 1" Trade Size with Integral Lay-In Lug

Professional Direct Burial Grounding Solutions for Water Pipe Applications

Bridgeport Fittings Bronze Direct Burial Ground Clamps deliver reliable grounding performance for 1/2" through 1" ground water pipe applications. Featuring bronze construction with a minimum of 80% copper content and integral lay-in lug design, these professional-grade clamps provide weather and corrosion resistance for long-term underground installations. The NEMA FB-1 rated clamps meet OSHA-recognized NRTL-listed electrical standards with UL File E20412 certification.

Professional Features & Benefits

  • Bronze Construction (80% Copper Minimum): Provides superior corrosion resistance and low-maintenance performance in direct burial applications
  • 1/2" - 1" Trade Size Range: Accommodates standard ground water pipe sizes for versatile installation flexibility
  • Integral Lay-In Lug Design: Simplifies conductor connection and ensures secure grounding contact
  • NEMA FB-1 Rating: Meets professional standards for direct burial electrical applications
  • NRTL-Listed Standards: UL File E20412 certification ensures compliance with OSHA-recognized electrical safety requirements
  • Compact Dimensions: 2.25" length and 1.625" width provide efficient installation in confined spaces

Technical Specifications

  • Bpt Trade Size: 1/2" - 1"
  • Bronze Construction: With a minimum of 80% copper, the bronze construction is low-maintenance and weather and corrosion-
  • Department: Electrical
  • Division: Electrical H1
  • Field Application: Integral lay-in lug style direct burial ground clamp for use with 1/2" thru 1" ground water pipe or
  • Nema Rating: FB-1
  • Product Family: Connectivity
  • Product Finish: As Cast
  • Product Length: 2.25 in
  • Product Weight: 14 lbs
  • Product Width: 1.625 in
  • Professional Performance: All Bridgeport fittings meet OSHA-recognized NRTL-listed electrical standards and the stringent bon
  • Sub Division: Electrical-E H2
  • Ul File: E20412

Professional Applications

  • Residential Water Service Grounding
  • Commercial Building Ground Systems
  • Industrial Facility Electrical Grounding
  • Municipal Water Infrastructure
  • Underground Utility Installations
  • Direct Burial Grounding Applications

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers proven reliability through OSHA-recognized NRTL-listed electrical standards compliance and UL File E20412 certification. The bronze construction with minimum 80% copper content and NEMA FB-1 rating ensures long-term durability and professional performance in demanding direct burial applications.

Manufacturer Resources

Product Specs

Bpt Trade Size:
1/2" - 1"
Department:
Electrical
Division:
Electrical H1
Nema Rating:
FB-1
Product Finish:
As Cast
Product Length:
2.25 in
Product Weight:
14 lbs
Product Width:
1.625 in
Sub Division:
Electrical-E H2
Certifications:
E20412
Product Type:
Ground Clamp
Product Subgroup:
Grounding & Bonding
Product Group:
Grounding & Bonding

Bridgeport Fittings RB-17 – Frequently Asked Questions

1) Can these Bridgeport bronze clamps be used on rebar in a concrete-encased electrode, or only on water pipe?
Both. The RB-16 and RB-17 clamps are listed for 3/8 inch to 1 inch rebar as well as 1/2 inch to 1 inch ground water pipe, which is what makes them usable for a Ufer/concrete-encased electrode connection as well as a water service bond.
2) What size grounding conductor will the lay-in lug on the Bridgeport RB clamps accept?
The integral lay-in lug takes #10 solid through #2 stranded copper. If your grounding electrode conductor is larger than #2, this clamp body will not land it.
3) Is this ground clamp approved for burying in soil or encasing in concrete?
Yes, it is a direct burial type clamp. The bronze body runs a minimum of 80 percent copper for corrosion resistance underground, it carries a NEMA FB-1 rating, and it is covered under UL File E20412.
4) What is the difference between the Bridgeport RB-16 and RB-17 ground clamps?
Both models share the same working range: 1/2 inch to 1 inch water pipe, 3/8 inch to 1 inch rebar, and a lay-in lug rated #10 solid to #2 stranded. Order by the model number your spec or submittal calls out, since the pipe, rebar and conductor capacities match.
5) Why choose a lay-in lug ground clamp instead of a standard setscrew ground clamp?
A lay-in lug lets you drop the grounding electrode conductor into the lug and tighten it, rather than threading the wire through a closed hole. In a trench or a footing where the conductor is already run and stiff, that is the difference between making the connection and cutting the wire. The RB clamps have the lug cast into the body, so there is no separate lug to order.
6) How much space does the Bridgeport RB ground clamp take up on the pipe?
It is a compact body at 2.25 inches long and 1.625 inches wide, so it fits where a water service enters a wall or where rebar is tight in a footing cage. The finish is as cast bronze, no plating to wear off in the ground.
