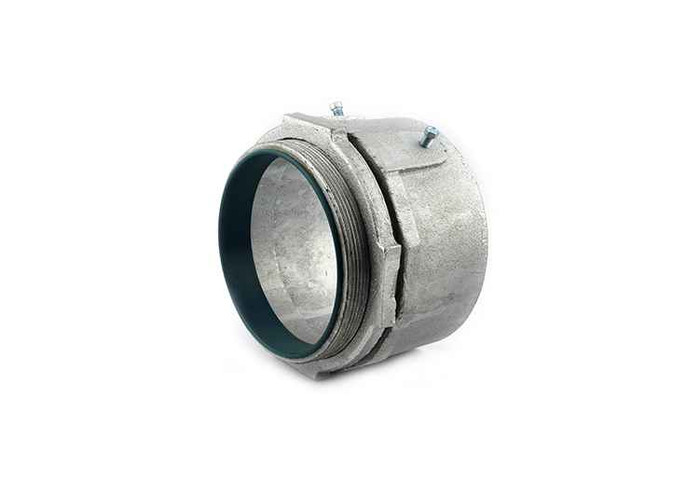

Bridgeport Fittings 1-1/2" Set Screw Connector - Malleable Iron with Zinc Plated Finish

Bridgeport Fittings 1-1/2" Set Screw Connector - Malleable Iron with Zinc Plated Finish

Professional Rigid Conduit Connection Solution

The Bridgeport Fittings 1-1/2" Set Screw Connector delivers reliable rigid and IMC conduit connections with malleable iron construction and zinc plated finish. This NEMA FB-1 rated connector provides secure attachment to boxes and enclosures through set screw operation, featuring excellent tensile strength and concrete-tight protection for demanding electrical installations.

Professional Features & Benefits

• 1-1/2" Trade Size: Accommodates standard rigid and IMC conduit for versatile installation compatibility
• Malleable Iron Construction: Delivers excellent tensile strength and durability for long-term performance in demanding applications
• Zinc Plated Finish: Provides corrosion resistance and professional appearance for indoor and outdoor installations
• Set Screw Connection: Enables secure rigid or IMC conduit attachment with reliable mechanical connection
• Concrete Tight Design: Protects conductor insulation from concrete aggregate abrasion in embedded applications
• NEMA FB-1 Rating: Meets professional standards for electrical connector performance and safety
• UL Listed (E9391): Ensures compliance with electrical safety standards for professional installations

Technical Specifications

• Bpt Trade Size: 1-1/2"
• Collection Folder: 3504
• Concrete Tight: The connector is perfect for applications where concrete aggregate could abrade conductor insulatio
• Country Of Origin: China
• Department: Electrical
• Division: Electrical H1
• Field Application: Rigid set screw type connector used to join Rigid or IMC conduit to a box or enclosure.
• Malleable Iron Body: The malleable iron body is ideal for this application due to its excellent tensile strength
• Nema Rating: FB-1
• Npd Date Electrical: 2008-07-03T00:00:00.000Z
• Product Finish: Zinc Plated
• Product Height: 0.625 in
• Product Length: 2.5 in
• Product Material: Malleable Iron
• Product Weight: 67 lbs
• Product Width: 2.3125 in
• Secure Set Screw Connection: Operators are able to secure the rigid or IMC connection via the set screw
• Sub Division: Electrical-E H2
• Ul File: E9391

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Conduit Systems
• Concrete Pour Applications
• Rigid Conduit Terminations
• IMC Conduit Connections
• Electrical Panel Connections
• Junction Box Installations

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers professional-grade electrical connectors with UL listing and NEMA FB-1 rating for reliable performance. The malleable iron construction with zinc plated finish ensures long-term durability and corrosion resistance in demanding electrical applications.
