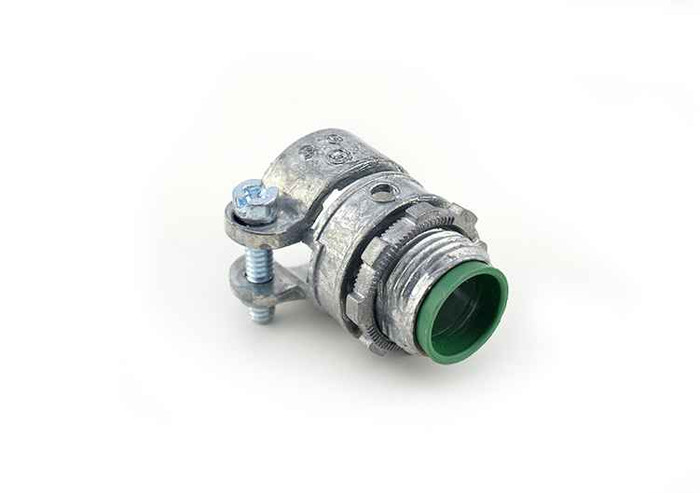

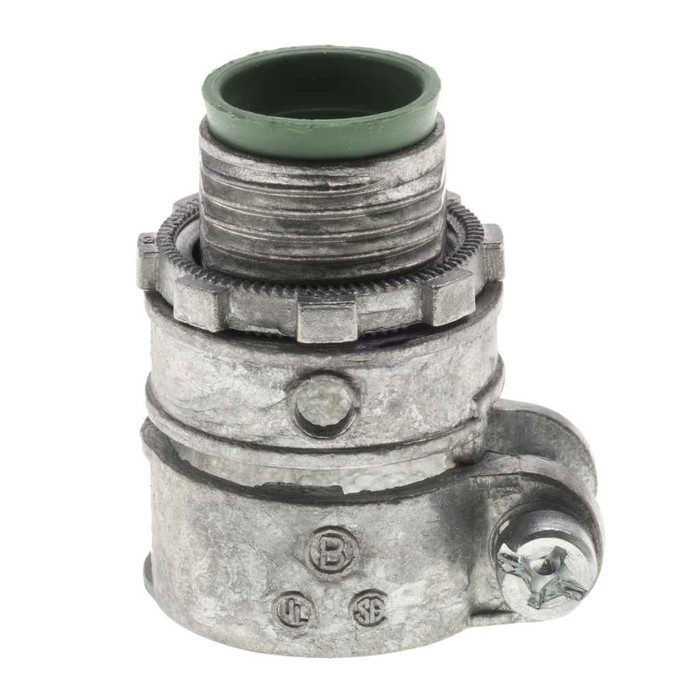

Bridgeport Fittings 1/2" Zinc Die Cast Squeeze Connector with Insulated Throat

Bridgeport Fittings 1/2" Zinc Die Cast Squeeze Connector with Insulated Throat

Professional electrical connection solution for flexible metal conduit and armored cable applications

Bridgeport Fittings 1/2" Zinc Die Cast Squeeze Connector delivers reliable electrical connections for steel flexible metal conduit or armored cable to box or enclosure applications. Featuring precision die cast zinc construction with ball burnished mirror smooth finish and insulated throat protection, this connector provides excellent corrosion resistance and professional installation performance for electrical systems.

Professional Features & Benefits

• 1/2" Trade Size: Precisely sized for securing 1/2" flexible metal conduit or armored cable connections with optimal fit and performance.
• Zinc Die Cast Construction: Provides precise fit and finish with excellent corrosion resistance for long-lasting electrical connections.
• Insulated Throat Protection: Protects inner wiring up to 105°C, preventing damage and ensuring safe electrical operation.
• Ball Burnished Finish: Mirror smooth surface finish enhances installation ease and provides professional appearance.
• Quick Installation: Simply insert flexible metal conduit or armored cable into the squeeze connector and tighten for secure connection.
• cULus Listed: Meets rigorous safety standards with UL File E9391 certification and RoHS compliance for professional applications.
• NEMA FB-1 Rating: Engineered to meet NEMA FB-1 specifications for reliable electrical enclosure connections.

Technical Specifications

• Bpt Trade Size: 1/2"
• Collection Folder: 407-DCI2
• Country Of Origin: United States
• Department: Electrical
• Division: Electrical H1
• Field Application: Recommended cable types to connect steel flexible metal conduit or armored cable to box or enclosur
• Insulated Throat: Insulated throat protects inner wiring up to 105°C
• Nema Rating: FB-1
• Npd Date Electrical: 2008-07-03T00:00:00.000Z
• Product Depth: 0.4375 in
• Product Finish: Ball burnished, mirror smooth
• Product Length: 1.375 in
• Product Material: Zinc Die Cast
• Product Weight: 9 lbs
• Product Width: 0.9375 in
• Quick And Easy: To secure, simply insert flexible metal conduit or armored cable into the squeeze connector and tig
• Safety Compliance: Bridgeport squeeze connectors are cULus listed and RoHS compliant
• Sizing: For securing 1/2" flexible metal conduit or armored cable to an electrical box or enclosure through
• Sub Division: Electrical-E H2
• Ul File: E9391
• Zinc Body: Die cast zinc squeeze connectors have a precise fit and finish with excellent corrosion resistance

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Facility Wiring
• Residential Electrical Systems
• Maintenance and Repair Projects
• New Construction Electrical Work
• Retrofit and Upgrade Applications

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers trusted electrical connection solutions with cULus listed safety compliance and RoHS environmental standards. The precision die cast zinc construction with NEMA FB-1 rating ensures reliable performance and excellent corrosion resistance for professional electrical applications.
