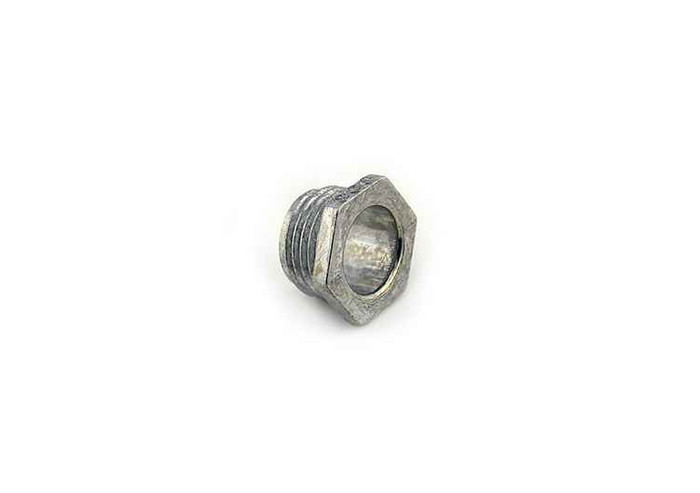

Bridgeport Fittings Zinc Die Cast Conduit Nipples with Ball Burnished Finish - NEMA FB-1 Rated

Bridgeport Fittings Zinc Die Cast Conduit Nipples with Ball Burnished Finish - NEMA FB-1 Rated

(No reviews yet) Write a Review

Model: 1102-DC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$0.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bridgeport Fittings Zinc Die Cast Conduit Nipples with Ball Burnished Finish - NEMA FB-1 Rated

Professional Short Raceway Solutions for Electrical Conduit Systems

Bridgeport Fittings Zinc Die Cast Conduit Nipples deliver reliable performance for extending conduit systems between enclosures. Featuring zinc die cast construction with ball burnished mirror smooth finish and NEMA FB-1 rating, these conduit nipples provide corrosion resistance and professional-grade durability for long-term electrical installations.

Professional Features & Benefits

  • Zinc Die Cast Construction: Naturally resistant to corrosion for reliable long-term performance in any environment
  • Ball Burnished Finish: Mirror smooth surface ensures optimal threading engagement and professional appearance
  • NEMA FB-1 Rating: Meets industry standards for electrical enclosure and raceway applications
  • NPSM Threading: Creates pressure-tight, vibration-resistant seal when male and female threads are properly engaged
  • Short Raceway Design: Enables extension of conduit systems when used with locknut for secure connections
  • UL Listed: File E9391 certification ensures compliance with electrical safety standards
  • USA Manufacturing: Domestic production ensures consistent quality and reliable supply chain

Technical Specifications

  • Country Of Origin: United States
  • Department: Electrical
  • Division: Electrical H1
  • Field Application: When used with a locknut, conduit nipples serve as a short raceway between enclosures.
  • Nema Rating: FB-1
  • Npd Date Electrical: 2008-07-01T00:00:00.000Z
  • Npsm Threads: Operators can create a pressure-tight, vibration-resistant seal when the male and female threads ar
  • Product Finish: Ball burnished, mirror smooth
  • Product Material: Zinc Die Cast
  • Short Raceway: Users can extend a conduit system by using the conduit nipple with a locknut
  • Sub Division: Electrical-E H2
  • Ul File: E9391
  • Zinc Die Cast Body: The zinc die cast body is naturally resistant to corrosion for long-term use in any environment

Professional Applications

  • Electrical Panel Connections
  • Conduit System Extensions
  • Enclosure-to-Enclosure Transitions
  • Commercial Electrical Installations
  • Industrial Raceway Systems
  • Residential Electrical Projects
  • Maintenance and Retrofit Applications

Why Choose Bridgeport Fittings Quality?

Bridgeport Fittings delivers proven reliability with UL Listed certification and NEMA FB-1 rating. The zinc die cast construction with ball burnished finish ensures long-term corrosion resistance and professional performance in demanding electrical applications.

Manufacturer Resources

Product Specs

Country Of Origin:
United States
Department:
Electrical
Division:
Electrical H1
Nema Rating:
FB-1
Product Finish:
Ball burnished, mirror smooth
Product Material:
Zinc Die Cast
Sub Division:
Electrical-E H2
Certifications:
E9391
Product Type:
Conduit Nipple
Product Subgroup:
Conduit Fittings
Product Group:
Conduit & Raceway

Bridgeport Fittings 1102-DC – Frequently Asked Questions

1) What sizes do Bridgeport zinc die cast conduit nipples come in?
Bridgeport's DC conduit nipples run from 1/2 inch through 4 inch trade size: 1/2 (1102-DC), 3/4 (1103-DC), 1 (1104-DC), 1-1/4 (1105-DC), 1-1/2 (1106-DC), 2 (1107-DC), 2-1/2 (1108-DC), 3 (1109-DC), 3-1/2 (1110-DC) and 4 inch (1111-DC). Order by the trade size of the conduit or the enclosure hub you are connecting to.
2) Do I need locknuts with a conduit nipple, or are they included?
You supply the locknuts. The nipple is threaded male on both ends and only becomes a short raceway between two enclosures once a locknut is drawn up on each side of the box wall. Plan on two locknuts per nipple, in the matching trade size, and add sealing rings or bushings if the installation calls for them.
3) What thread type is on Bridgeport DC conduit nipples, and will they thread into a rigid conduit coupling?
The threads are NPSM, the straight machine thread used on rigid and IMC conduit fittings, so they engage standard conduit couplings, locknuts and threaded enclosure hubs of the same trade size. Bridgeport notes the male and female engagement makes a pressure-tight, vibration-resistant joint. Because NPSM is straight rather than tapered, do not treat the joint as liquid-tight on its own.
4) Are these conduit nipples UL Listed for commercial electrical inspection?
Yes. The zinc die cast nipples are UL Listed under file E9391 and carry a NEMA FB-1 rating, the standard covering fittings for conduit and cable assemblies. That is the pairing an inspector or spec writer looks for on enclosure-to-enclosure raceway fittings.
5) Will zinc die cast conduit nipples hold up in a damp mechanical room or outdoors?
Zinc die cast is naturally corrosion resistant, and the ball burnished, mirror smooth finish leaves no rough surface for corrosion to start in, so these hold up in damp indoor and general exterior use. They are not a wet-location seal by themselves, though, the enclosure and the locknut/sealing ring combination determine that. For a steel-conduit run needing a heavier fitting, a malleable iron or steel nipple is the alternative.
6) What is the difference between a conduit nipple and a chase nipple?
A conduit nipple like the Bridgeport DC is threaded on both ends and spans between two enclosures, with a locknut on each side, so it acts as a short raceway carrying conductors from box to box. A chase nipple has one male thread and a shoulder and is used to terminate into a single enclosure wall, not to join two. If your two boxes are back to back or separated by a knockout gap, the conduit nipple is the part you want.
7) Can I use a conduit nipple to join two panels mounted side by side in an electrical room?
That is the intended use. With a locknut on each side of the sheet metal, the nipple ties panel to panel or panel to junction box and gives conductors a short listed raceway between them. Match the nipple trade size to the knockout, and remember conduit nipples under 24 inches of length are subject to the reduced derating allowance in the NEC for short raceways, so check your fill calculation.
8) Are Bridgeport conduit nipples made in the USA for projects with domestic sourcing requirements?
Yes, country of origin on the DC series zinc die cast nipples is the United States. That matters on government, institutional and utility jobs where domestic-content language sits in the spec.
