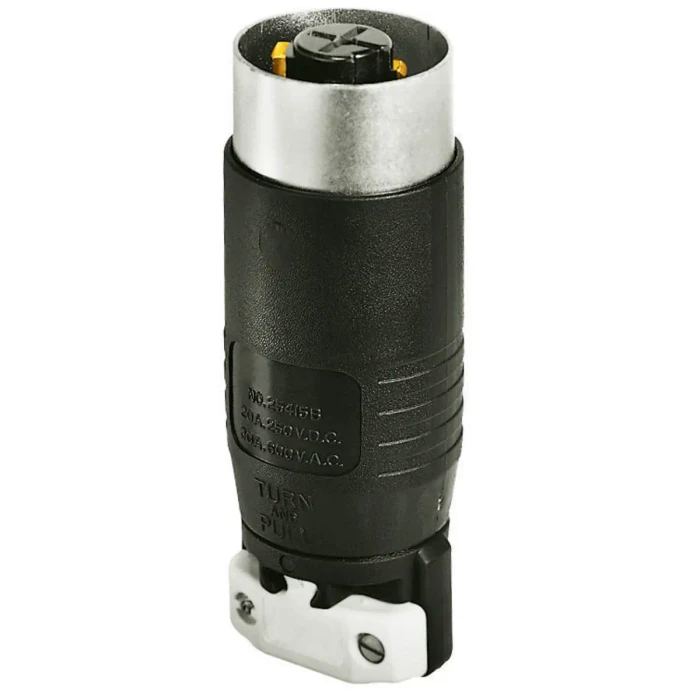

Bryant 25415 Series Armored Plug, 4-Pole 5-Wire, 30A 600V

Bryant 25415 Series Armored Plug, 4-Pole 5-Wire, 30A 600V

(No reviews yet) Write a Review

Model: BRY-3763-S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$191.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bryant 25415 Series Armored Plug, 4-Pole 5-Wire, 30A 600V

The Bryant 25415 Series Armored Plug is a heavy-duty power connector built for demanding industrial and commercial electrical applications. Configured as a 4-pole, 5-wire device, this armored plug is rated 30A at 600V, making it suitable for multi-circuit power distribution where durability and reliable connections are essential. Its armored construction is engineered to withstand the rigors of industrial environments, providing a robust connection point for equipment and machinery that demand consistent, code-compliant power delivery.

Key Features

  • Configuration: 4-pole, 5-wire design supports multi-circuit power connections in a single, unified plug.
  • Electrical Rating: Rated 30A at 600V, providing the capacity needed for heavy-duty power applications.
  • Armored Construction: Reinforced armored housing adds protection and durability for use in demanding industrial settings.
  • Bryant 25415 Series: Part of Bryant's established line of industrial-grade plugs engineered for dependable performance.

Technical Specifications

  • Series: Bryant 25415
  • Configuration: 4-Pole, 5-Wire
  • Amperage Rating: 30A
  • Voltage Rating: 600V
  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Industrial Power Distribution
  • Heavy Machinery and Equipment Connections
  • Temporary and Portable Power Setups
  • Commercial and Industrial Electrical Installations
  • Multi-Circuit Panel and Feeder Connections

Why Bryant?

Bryant electrical products are built to deliver dependable performance in demanding power distribution applications. The 25415 Series Armored Plug combines a rugged, armored housing with a 4-pole, 5-wire, 30A, 600V configuration to support reliable, heavy-duty connections. For professionals specifying industrial-grade plugs, the Bryant 25415 Series offers the durable construction needed for consistent, code-compliant electrical performance.

Manufacturer Resources

Bryant Full Line Catalog

Product Specs

Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Plugs & Connectors
Product Type:
Plug

Bryant BRY-3763-S – Frequently Asked Questions

1) What pole and wire configurations does the Bryant 25415 armored plug come in?
Three configurations are offered under the Bryant armored plug group: the 25415 as a 4-pole 5-wire 30A device, model 3763 as 2-pole 3-wire 50A, and model 3765 as 3-pole 4-wire 50A. Pick by the circuit you are feeding, not just the amperage, since the 50A options carry fewer poles than the 30A version.
2) Is the Bryant 25415 plug rated for 600 volts?
Yes. The Bryant 25415 is rated 30A at 600V in a 4-pole, 5-wire configuration, which is why it gets specified on industrial feeders and machinery rather than general 125/250V receptacle circuits.
3) For a patient care area, can I use the Bryant 25415 armored plug or do I need a hospital grade plug?
The Bryant 25415 is an industrial armored plug in a 4-pole, 5-wire, 30A 600V configuration intended for industrial power distribution and heavy machinery connections, not for patient care receptacle cords. Where a hospital grade, tamper-resistant cord end is required, the Leviton 8215-CAT is a hospital grade NEMA 5-15P plug and the Leviton 8315-CT is the hospital grade NEMA 5-20P version, both supplied in packs of 100.
4) Is the Leviton 275-E angle plug a substitute for the Bryant 25415 armored plug?
No. The Bryant 25415 is a 4-pole, 5-wire armored plug rated 30A at 600V for industrial multi-circuit power distribution. The Leviton 275-E is a commercial grade 4-wire, 3-pole straight blade angle plug, so it carries one fewer pole and one fewer wire and is a straight blade device rather than an armored industrial plug. For a 4-pole 5-wire 600V feeder connection, the Bryant 25415 is the correct device; the 275-E suits lighter commercial straight blade cord ends.
5) What should I use instead of the Bryant 25415 if the equipment cord only needs a 2-pole 3-wire 250V connection?
The Bryant 25415 is a 4-pole, 5-wire, 30A 600V armored plug, which is more device than a single-phase 250V cord end requires. The Leviton 5666-C is a 3-wire, 2-pole polarized industrial grade straight blade plug rated 250 volts, 1-phase, which matches that simpler connection. Within Bryant, a 2-pole 3-wire 50A plug is offered as part number 3763 if you need the higher amperage in the same family.
6) What is the difference between a 3-pole 4-wire and a 4-pole 5-wire plug for a three-phase machine?
A 3-pole 4-wire device gives you three hots plus a ground, which suits a three-phase motor load with no neutral. A 4-pole 5-wire device adds a neutral, so you can carry a three-phase load plus a 120V control or lighting circuit in the same connection. Bryant's 25415 is the 4-pole 5-wire option at 30A; the 3765 is 3-pole 4-wire at 50A.
7) How does the Bryant 25415 compare with the Eaton Arrow Hart Ultra Grip plug for a portable tool cord?
The Eaton Arrow Hart Ultra Grip AH5266 is an industrial specification grade straight blade plug rated 15A 125V, sized for standard 125-volt portable tools and cords. The Bryant 25415 is a 4-pole, 5-wire armored plug rated 30A at 600V, built for multi-circuit industrial power distribution and heavy equipment. Choose by the circuit: 125V single-phase tool cords take the AH5266, while 600V multi-pole feeders take the Bryant armored plug.
8) Is a Pass & Seymour MaxGrip M3 nylon cord plug an equivalent to the Bryant 25415?
No. The Pass & Seymour PS5965-Y is a MaxGrip M3 nylon cord plug, a cord-end device with a nylon body. The Bryant 25415 is an armored plug with a reinforced armored housing, configured 4-pole, 5-wire at 30A 600V for industrial power distribution. The two differ in both body construction and pole count, so the MaxGrip plug will not land on a 4-pole 5-wire 600V circuit.
9) What does the armored construction on the Bryant 25415 actually buy me?
The reinforced armored housing is there to take abuse: dropped cords, equipment traffic, and rough plant floors. That is the reason it shows up on heavy machinery hookups, temporary and portable power setups, and feeder connections rather than in a finished office space.
