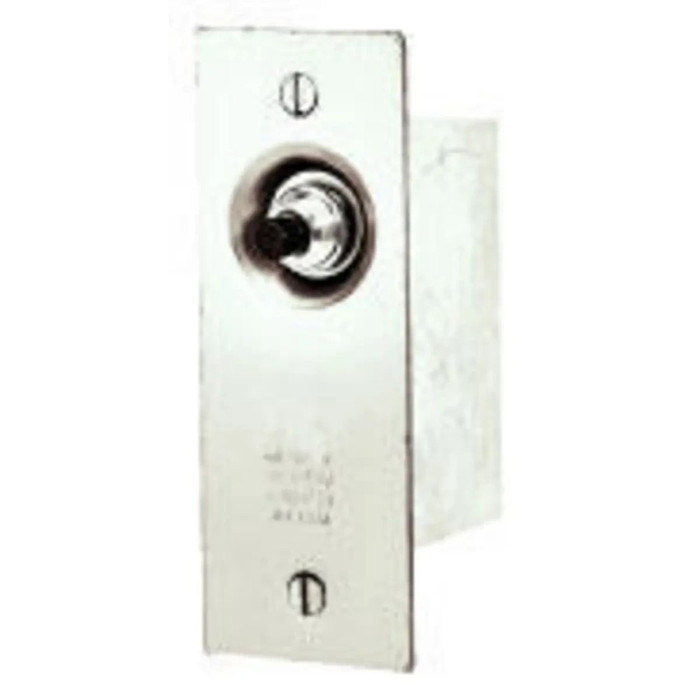

Bryant 2968 Door Switch Assembly, 6A 125V, NO/NC Contact Configuration

Bryant 2968 Door Switch Assembly, 6A 125V, NO/NC Contact Configuration

(No reviews yet) Write a Review

Model: 2969

In Stock (leaves warehouse same day if ordered before 3pm ET)

$41.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bryant 2968 Door Switch Assembly, 6A 125V, NO/NC Contact Configuration

The Bryant 2968 Door Switch Assembly is a compact switching component engineered for use as a safety interlock on electrical enclosure and equipment doors. Rated 6A at 125V, this door switch assembly is available in Normally Open (NO) or Normally Closed (NC) contact configurations, allowing installers to select the contact type needed to reliably signal door position within control panels, panelboards, and electrical housings. Supplied as a complete, ready-to-install assembly rather than a collection of loose parts, it is built for straightforward installation or replacement in professional electrical work where dependable, repeatable door-position sensing is required on a day-to-day basis.

Key Features

  • Electrical Rating: Rated 6A at 125V, sized for low-voltage control and signaling circuits within electrical equipment and enclosures.
  • Selectable Contact Configuration: Available in Normally Open (NO) or Normally Closed (NC) contact types, so the correct configuration can be chosen for accurate door-position sensing and safety interlock functions in control circuits.
  • Door Switch Assembly Design: Compact switch assembly configuration built specifically for mounting on enclosure, panel, or equipment doors rather than general-purpose wiring devices.
  • Complete Assembly: Supplied as a full switch assembly, including the switching mechanism, for straightforward installation or replacement without the need to separately source individual components.
  • Model 2968 Identification: Identified as model 2968 in the Bryant lineup, allowing installers and facility staff to confirm they are ordering the correct replacement assembly.
  • Bryant Build Quality: Engineered by Bryant for dependable, consistent switching performance across repeated door-open and door-close cycles in electrical equipment applications.

Technical Specifications

  • Amperage Rating: 6A
  • Voltage Rating: 125V
  • Contact Type Options: Normally Open (NO) or Normally Closed (NC)

Typical Applications

  • Electrical Enclosure and Panel Doors
  • Safety Interlock Systems
  • Industrial Control Panels
  • Commercial and Industrial Electrical Equipment
  • Panelboard Access Door Sensing
  • Replacement of Existing Bryant Door Switch Assemblies

Why Bryant?

Bryant is a well-established name in electrical components, and this 6A 125V door switch assembly reflects that standard, available in Normally Open (NO) or Normally Closed (NC) contact configurations for dependable, repeatable performance cycle after cycle. For electricians, panel builders, and facility teams who need a precise replacement part rather than a generic substitute, the Bryant 2968 door switch assembly offers a straightforward path to restoring correct door-position sensing. Choose Bryant for door-position switching components that professional electricians and equipment builders can rely on in demanding commercial and industrial settings.

Manufacturer Resources

Bryant Full Line Catalog

Product Specs

list_batch:
BRY-20260909
Product Type:
Specialty Switch
Amperage Rating:
6A
Voltage Rating:
125V
Configuration:
Normally Open (NO)
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Switches

Bryant 2969 – Frequently Asked Questions

1) What is the difference between Bryant door switch 2968 and 2969?
The part number is what sets the contact configuration. The normally closed (NC) version is ordered as 2968, and the normally open (NO) version is 2969. Same 6A, 125V switch assembly either way, so pick by how your control circuit reads door position: NC opens the circuit when the door swings open, NO closes it.
2) Can the Bryant 2968 door switch carry a load or only a signal?
It's rated 6A at 125V, which puts it in control and signaling territory: interlock circuits, panel lighting, door-position inputs to a controller. Don't run a motor load or any 277V circuit through it. If your load exceeds 6A or your control voltage is above 125V, you need a switch with a higher rating or a relay driven by this switch.
3) I need a switch that kills power when an enclosure door opens. Is this the right type?
That's the safety interlock function this assembly is built for. Mounted on an enclosure, panelboard, or control panel door, it senses door position and signals the control circuit. For a de-energize-on-open scheme, the normally closed version (2968) is the usual choice, since opening the door breaks the circuit. Remember it's a 6A 125V control-rated device, so it should be switching a relay or contactor coil, not the feeder itself.
4) Can I use this Bryant door switch as a general-purpose wall switch?
No. The 2968 is a door switch assembly configured for mounting on enclosure, panel, or equipment doors, not a wall-box wiring device. It has no yoke or strap for a standard device box and is rated for 6A control duty at 125V. For a room light or receptacle circuit, use a standard 15A or 20A commercial-spec toggle switch instead.
5) Is the Bryant 2968 a complete switch or do I need to buy the mechanism separately?
It ships as a complete assembly with the switching mechanism included, so it's a drop-in for a failed unit rather than a kit of loose parts. Nothing further to source to get the switch itself in and wired.
6) I'm replacing an old Bryant door switch in a panelboard. How do I confirm I'm ordering the same one?
Check the marking on the old switch body for the model number and the contact configuration. If it reads 2968 you want the NC version; 2969 is the NO version. The electrical rating to match is 6A at 125V. Getting the contact type wrong will invert your door-position logic, so verify NO versus NC before ordering, not after.
