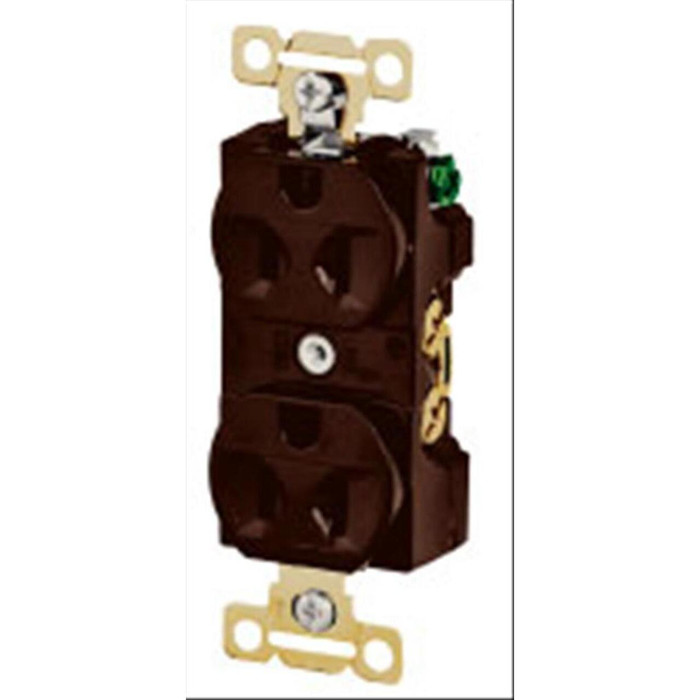

Bryant 5242 Series Grounding Duplex Receptacle, NEMA 5-15R Configuration
The Bryant 5242 Series is a grounding duplex receptacle built in the NEMA 5-15R configuration, the standard three-wire grounded outlet pattern used throughout residential and commercial electrical systems. As a duplex device, it provides two independent connection points from a single wiring device, and its grounding design supports safe, code-compliant power delivery for everyday plug-in equipment. The 5242 Series designation identifies this receptacle as part of Bryant's established wiring device lineup for general-purpose electrical installations.
Key Features
- Duplex Configuration: Two receptacle outlets on a single device body for flexible plug-in access at one wiring point.
- Grounding Design: Three-wire grounding construction supports safe connection of grounded cord-and-plug equipment.
- NEMA 5-15R Configuration: Standard straight-blade receptacle pattern widely compatible with common NEMA 5-15P plugs.
- 5242 Series Identification: Part of the Bryant 5242 Series wiring device line for consistent specification across installations.
- Wiring Device Reliability: Engineered as a grounding receptacle intended for dependable, repeated electrical connections.
Technical Specifications
- Refer to manufacturer documentation for complete technical specifications.
Typical Applications
- Residential and Commercial Electrical Wiring
- General-Purpose Duplex Outlet Installations
- Replacement of Existing Grounding Receptacles
- New Construction and Renovation Projects
- Standard NEMA 5-15P Plug-In Equipment Connections
Why Bryant?
Bryant wiring devices are specified across residential and commercial electrical work where dependable, grounding-type connections are required. The 5242 Series grounding duplex receptacle in the NEMA 5-15R configuration reflects Bryant's focus on straightforward, code-compliant wiring devices suited to everyday professional installations.
Manufacturer Resources
Bryant Full Line Catalog
Product Specs
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Receptacles & Outlets
- Product Type:
- Duplex Receptacle
- Voltage Rating:
- 125V
- Number Of Poles:
- 2-Pole
- Number Of Wires:
- 3-Wire
- Product Color:
- Brown
- Product Style:
- Finder Groove Face
Bryant BRY-5242-S – Frequently Asked Questions
1) What is the difference between Bryant 5242 and 5342 receptacles?
Amperage and outlet pattern. The Bryant 5242 is a 15 amp device in the NEMA 5-15R configuration; the 5342 is the 20 amp version in NEMA 5-20R. Both are grounding duplex receptacles from the same family. Pick 5242 for a general-purpose 15 amp branch circuit, and 5342 where the circuit and the equipment call for a 20 amp T-slot outlet.
2) Can I plug a 20 amp appliance into the Bryant 5242?
No. A 20 amp cord cap (NEMA 5-20P) has one blade turned sideways and will not enter a 5-15R face. For that equipment order the 5342, the 20 amp NEMA 5-20R version of the same Bryant duplex, and make sure the branch circuit is rated for it.
3) Is a general-purpose grounding duplex like the Bryant 5242 tough enough for a shop or plant floor?
The 5242 is described as a general-purpose wiring device for residential and commercial installations, not as an industrial grade device. Where the location gets heavy plug cycling or abuse, a spec-grade 5-15R such as the Eaton Arrow Hart 5262W, listed as Industrial Specification Grade in 15A 125V, is the better match. For hazardous locations neither applies; that calls for an explosionproof device like the Appleton FSQC Series interlocked receptacle.
4) I need a 20 amp 125V duplex outlet instead of a 15 amp one - what are my options?
Within the Bryant 5242 Series, the 5342 covers 20A in the NEMA 5-20R configuration. If the circuit also needs an isolated ground for sensitive electronics, the Pass & Seymour IG5362-I is a heavy-duty spec-grade isolated ground duplex receptacle rated 20A 125V, which the standard Bryant device does not provide.
5) Can I use the Bryant 5242 duplex receptacle on a 277 volt circuit?
No. The Bryant 5242 is built in the NEMA 5-15R configuration, which is the 125V three-wire grounded pattern. For a 277V duplex outlet, the Pass & Seymour 5762 is a self-grounding duplex receptacle rated 15A 277V and carries a specification grade designation.
6) What is the closest cross-brand equivalent to the Bryant 5242 grounding duplex receptacle?
The Eaton Arrow Hart 5262W is the nearest match in another brand: it is a duplex receptacle rated 15A 125V in the NEMA 5-15R configuration, the same straight-blade pattern the Bryant 5242 uses. The Eaton device is described as industrial specification grade and comes in gray, so if a submittal calls out a specific grade or device color, check that against what the job requires before swapping.
7) What should I use instead of a Bryant 5242 in a hazardous or wet industrial location?
The 5242 is a general-purpose grounding duplex device for residential and commercial wiring, not a sealed enclosure device. For hazardous locations, the Appleton FSQC Series is an interlocked explosionproof receptacle, and the Appleton U-Line ECS set is a factory-sealed 15 and 20 amp plug and receptacle combination in a 3-pole arrangement. Those are complete corded-connection systems rather than a flush duplex outlet, so the box and wiring method differ.
8) Will a standard three-prong household plug fit the Bryant 5242 receptacle?
Yes. The 5242 is a NEMA 5-15R straight-blade grounding outlet, which is the standard three-wire grounded pattern that accepts common NEMA 5-15P cord plugs used on office equipment, appliances, and tools.
9) When would I choose a single receptacle over the Bryant 5242 duplex?
The 5242 gives two independent outlets from one device body, which suits general plug-in access. Where a dedicated circuit must serve only one piece of equipment, a single receptacle is the usual call: the Eaton 816W is a commercial specification grade single receptacle rated 15A, and the Eaton 6450W is an industrial specification grade decorator single receptacle accepting #14-10 AWG conductors.
10) Is a locking receptacle an acceptable substitute for the Bryant 5242?
No - the blade patterns do not interchange. The 5242 accepts standard straight-blade NEMA 5-15P plugs, while locking devices such as the Eaton 7379 industrial locking receptacle rated 50A 600V/250V AC/DC, or the Pass & Seymour Turnlok 3330 30A non-NEMA single receptacle, require a matching twist-lock cord cap. Choose a locking device only when the equipment cord is already fitted with one.
11) Does the Bryant 5242 offer any automatic shutoff for plug load control?
No. The Bryant 5242 Series is a straightforward grounding duplex receptacle for continuous plug-in power. Where energy code requires controlled plug loads, the Pass & Seymour PLT26351 is a heavy duty spec grade plug load timer receptacle rated 20A 125V with timing built into the device.
