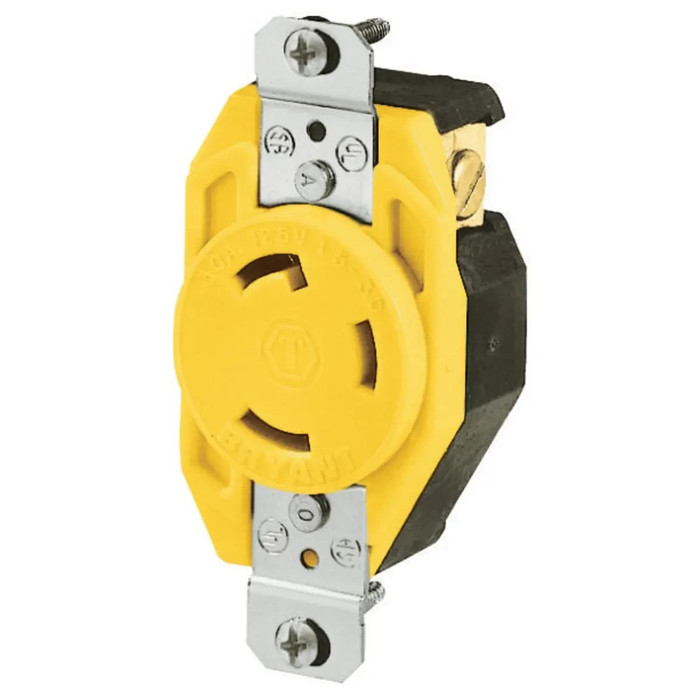

Bryant 70530FRCR Flush-Mount Locking Receptacle, NEMA L5-30R

The Bryant 70530FRCR is a flush-mount locking receptacle built to the NEMA L5-30R configuration, delivering a secure 30A, 125V twist-lock connection for demanding commercial and industrial power applications. Constructed with a non-metallic (NM) housing, this receptacle resists corrosion and everyday wear while providing a dependable termination point for equipment that requires a locking connection to guard against accidental disconnects. Its flush (FL) design integrates cleanly into standard electrical boxes and enclosures, giving installers a professional, low-profile finished appearance whether the receptacle is going into a new panel or replacing a worn unit in the field.

Key Features

  • NEMA L5-30R Configuration: Twist-lock receptacle rated 30A, 125V for secure power connections that resist vibration, strain, and accidental disconnection.
  • Flush Mounting: FL flush-mount design allows a clean, low-profile installation into standard wall boxes, panels, and enclosures.
  • Non-Metallic Construction: NM non-metallic housing offers durable, corrosion-resistant performance for long service life in demanding environments.
  • Locking Engagement: Twist-and-lock design keeps the mating plug securely seated, reducing the risk of accidental power interruption during use.
  • 2-Pole, 3-Wire Grounding: The L5-30R configuration provides a grounded connection to support safe, code-compliant power delivery.
  • Professional-Grade Build: Engineered by Bryant for dependable, repeat-use performance in industrial, commercial, and portable power setups.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Industrial and Commercial Power Distribution
  • Portable Equipment and Machinery Power Connections
  • Temporary Power Hookups for Job Sites and Events
  • Motor and Heavy-Load Equipment Connections
  • Panel and Load Center Receptacle Replacement
  • Renovation and New Construction Electrical Work

Why Bryant?

Bryant is a trusted name in professional-grade electrical devices, and the 70530FRCR reflects that standard with its non-metallic, flush-mount housing and NEMA L5-30R locking configuration. For electricians, facility managers, and contractors who need dependable, code-compliant connections that hold up to repeated plug-in cycles, this locking receptacle delivers consistent, secure power termination backed by the Bryant name. Choosing a locking configuration like the L5-30R over a standard straight-blade receptacle helps prevent unplanned disconnects on equipment where continuous power matters, making it a practical choice for job sites and industrial floors alike.

Product Specs

list_batch:
BRY-20260909
Product Type:
Locking Receptacle
Configuration:
NEMA L5-30R
Amperage Rating:
30A
Voltage Rating:
125V
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets
Product Material:
Non-Metallic

Bryant 70530FRCR – Frequently Asked Questions

1) Will a NEMA L5-30 twist-lock plug on my equipment mate with the Bryant 70530FRCR?
Yes. The 70530FRCR is built to the NEMA L5-30R configuration, so it accepts any L5-30P plug or cord cap. That is a 2-pole, 3-wire grounding pattern rated 30A at 125V. An L5-20 or 5-30 straight-blade plug will not twist into it; the blade pattern is unique to L5-30.
2) Can I use this 30A receptacle to feed a 120V load that keeps getting unplugged?
That is exactly what the twist-lock pattern is for. The plug turns and seats mechanically, so vibration, cord strain, or a foot catching the cord will not break the connection the way it does on a straight-blade outlet. It serves 125V loads up to 30A, which covers portable machinery, temporary job-site power, and motor-driven equipment.
3) I need a locking receptacle for a 50A load instead of 30A - what should I order?
The Bryant 70530FRCR is rated 30A at 125V, so it is not the device for a 50A circuit. For heavier locking service, the Eaton 7379 industrial locking receptacle is rated 50A at 600V/250V AC/DC and is classified Extra Heavy Duty. Match the receptacle to the branch circuit rating and to the plug configuration on the equipment cord before ordering.
4) Is the Bryant 70530FRCR suitable for a hazardous or classified area?
No. The Bryant 70530FRCR is a flush-mount non-metallic locking receptacle for general industrial and commercial power distribution. For classified locations, the Appleton FSQC Series interlocked explosionproof receptacle is the device built for that duty, and the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set covers 3-pole factory-sealed connections at lower amperage. Confirm the area classification on the drawings before substituting either direction.
5) What is the difference between the flush-mount 70530FRCR and a receptacle that comes with its own box?
The 70530FRCR is the flush device only. It mounts into a standard wall box, panel, or enclosure and finishes low-profile against the surface, so you supply the box and cover. If you are running surface conduit on an industrial wall with no box in place, you want a receptacle supplied in its own housing instead.
6) Is a non-metallic locking receptacle a problem in a damp or washdown area?
The non-metallic housing on the 70530FRCR resists corrosion, which is why it holds up better than a metal-bodied device in humid or chemically aggressive spaces. It is still a flush device with no integral weather cover, so in a wet location it needs an enclosure rated for the environment. For a classified or explosive atmosphere it is the wrong device entirely; that calls for an explosionproof receptacle such as the Appleton FSQC Series.
7) Should I specify a locking receptacle or a standard 5-20R duplex for shop equipment?
Decide on whether an accidental pull can be tolerated. A duplex straight-blade device like the Eaton Arrow Hart 5262W (15A, 125V, 5-15R) or the Pass & Seymour IG5362-I (20A, 125V) suits general convenience power and tools that plug and unplug all day. Once the load is up at 30A or the equipment cannot survive a dropped connection, go to the twist-lock L5-30R pattern of the 70530FRCR and match cord caps to it.
8) Can I use a standard straight-blade receptacle instead of the Bryant 70530FRCR?
Only if the equipment cord has a straight-blade plug and the load is within the smaller device's rating. The Bryant 70530FRCR is a twist-lock L5-30R rated 30A, 125V, which physically retains the mating plug. Straight-blade alternatives such as the Eaton 5262W heavy-duty industrial duplex (15A, 125V, 5-15R) or the Eaton 816W commercial specification grade single receptacle (15A) serve general 15A convenience power and will not accept an L5-30P plug or carry a 30A load.
9) What should I use instead of the Bryant 70530FRCR for sensitive electronics needing an isolated ground?
The Bryant 70530FRCR is a 2-pole, 3-wire grounding L5-30R locking device for 30A, 125V equipment feeds, not an isolated-ground outlet. For isolated-ground service on a 20A, 125V branch, the Pass & Seymour IG5362-I is a heavy-duty spec-grade isolated ground duplex receptacle. If the equipment still needs a locking connection at 30A, the Bryant remains the configuration match.
10) Will the Bryant 70530FRCR work on a 277V circuit?
No. The Bryant 70530FRCR is rated 125V at 30A. For 277V branch circuits, the Pass & Seymour 5762 is a specification grade duplex self-grounding receptacle rated 15A, 277V. Voltage and configuration both have to match the supply and the plug, so verify the panel schedule before swapping.
11) I want an outlet that shuts power off on a schedule - does the Bryant 70530FRCR do that?
No. The Bryant 70530FRCR is a straightforward NEMA L5-30R locking receptacle rated 30A, 125V with no timing or control function; its locking design is specifically intended to keep power connected. For controlled plug load, the Pass & Seymour PLT26351 is a heavy duty spec grade plug load timer receptacle rated 20A, 125V.
12) What is the exact part number to order this Bryant L5-30 locking receptacle?
Order Bryant 70530FRCR. That single model number covers the flush-mount, non-metallic, NEMA L5-30R device; there are no finish or color options to specify.
13) For a single-outlet decorator-style replacement, is the Bryant 70530FRCR the right part?
Not for a decorator opening. The Bryant 70530FRCR is a flush-mount locking receptacle in the L5-30R configuration, non-metallic, rated 30A at 125V, and it takes a twist-lock plug. If the job calls for a decorator-style single outlet on standard building wire, the Eaton 6450W is a heavy-duty industrial specification grade decorator single receptacle accepting #14-10 AWG conductors.
