Bryant 8350FR FR Series Single...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$44.16

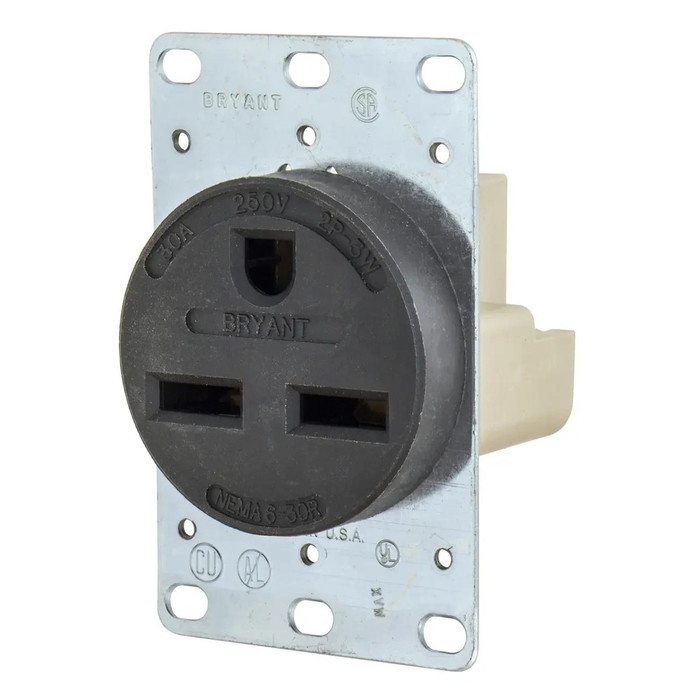

Bryant 8350FR FR Series Single Receptacle Wiring Device

Bryant 8350FR FR Series Single Receptacle Wiring Device

(No reviews yet) Write a Review

Model: 9530FR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bryant FR Series Single Receptacle Wiring Device

The Bryant FR Series is a family of single-configuration wiring devices offered across eight models — 8350FR, 8430FR, 9430FR, 9450FR, 9530FR, 9550FR, 9630FR, and 9650FR — each built as a single receptacle providing one dedicated outlet connection point rather than a duplex configuration. Within this series, the 8350FR is configured to accept mating plugs in the NEMA 6-30R pattern, a standardized 30A, 250V, 2-pole 3-wire grounding configuration, while other models in the series are built to their own respective NEMA patterns. Designed for straightforward installation in standard commercial and industrial wiring systems, the FR Series gives electricians, contractors, and facility teams a dependable, code-compliant receptacle connection matched to the specific plug pattern their equipment requires.

Key Features

  • Receptacle Type: Single receptacle design providing one dedicated outlet connection point rather than a duplex configuration, available across the FR Series lineup.
  • Model Range: Offered as 8350FR, 8430FR, 9430FR, 9450FR, 9530FR, 9550FR, 9630FR, and 9650FR, allowing selection of the receptacle configuration that matches the connected equipment.
  • NEMA Configuration: The 8350FR model uses the NEMA 6-30R pattern, accepting mating NEMA 6-30 plugs for compatible equipment and appliance connections.
  • Electrical Rating: NEMA 6-30R is the standardized configuration rated 30A at 250V with a 2-pole, 3-wire grounding arrangement.
  • Bryant Manufactured: Produced by Bryant as part of its broader series of wiring devices for professional electrical installations.
  • Single-Outlet Format: Configured for one dedicated connection point per location, suited to equipment requiring an isolated circuit connection.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Equipment and Appliance Power Connections Requiring a Matched NEMA Configuration
  • Wiring Device Replacement and Upgrade Projects
  • New Construction and Renovation Wiring
  • Facility Maintenance and Electrical Contractor Applications
  • Dedicated Circuit Connections for Single-Outlet Equipment

Why Bryant?

Bryant is a recognized manufacturer of wiring devices used across commercial and industrial electrical installations. The FR Series is built to deliver a dependable, single-outlet connection point in whichever NEMA configuration a project requires, with the 8350FR, 8430FR, 9430FR, 9450FR, 9530FR, 9550FR, 9630FR, and 9650FR models covering a range of plug patterns from a single, familiar product family. Choosing a receptacle built to the correct NEMA configuration, such as the 8350FR's NEMA 6-30R rating of 30A at 250V, helps ensure a proper, secure connection between equipment plugs and the branch circuit they rely on, making the FR Series a practical choice for electricians, contractors, and facility maintenance teams who need consistent, code-compliant performance from their wiring devices.

Manufacturer Resources

Bryant Full Line Catalog

Product Specs

list_batch:
BRY-20260909
Product Type:
Receptacle
Configuration:
Single Receptacle
Series:
FR
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Bryant 9530FR – Frequently Asked Questions

1) Which NEMA receptacle configurations can I get in the Bryant FR Series single receptacle?
The Bryant FR Series covers eight NEMA patterns plus one non-NEMA option: NEMA 18-50R (8350FR), 15-30R (8430FR), 14-30R (9430FR), 14-50R (9450FR), 5-30R (9530FR), 5-50R (9550FR), 6-30R (9630FR), 6-50R (9650FR), and model 9306. You pick the model that matches the plug on the equipment being connected, since a receptacle only accepts its own matching NEMA pattern.
2) What's the difference between the 6-30R and 6-50R versions of the Bryant FR receptacle?
Both are 2-pole 3-wire grounding 250V patterns, but the amperage differs: the 9630FR is NEMA 6-30R for a 30A circuit and the 9650FR is NEMA 6-50R for a 50A circuit. The blade geometry is different, so a 6-50 plug will not enter a 6-30R receptacle. Match the receptacle to the cord cap on the equipment and to the breaker and conductor size feeding it.
3) For a hazardous or wet-location industrial area, is a Bryant FR Series receptacle the right choice?
The Bryant FR Series is a general-purpose single receptacle line for standard commercial and industrial wiring systems and is not built for classified areas. Where a hazardous location is involved, Appleton offers the FSQC Series interlocked explosionproof receptacle, and the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set is a 3-pole factory-sealed assembly. Those Appleton devices come as a rated enclosure and connector package rather than a flush wiring device.
4) If the equipment uses a twist-lock plug instead of a straight-blade NEMA plug, what should be used instead of a Bryant FR Series single receptacle?
The Bryant FR Series single receptacles are built to straight-blade NEMA patterns such as 6-30R, 14-50R and 5-50R, so a twist-lock cord cap will not mate with them. For a locking connection at 30A, the Pass and Seymour Turnlok 3330 is a 30A non-NEMA single receptacle. For a higher-current locking application, the Eaton 7379 is an industrial locking receptacle rated 50A at 600V/250V AC/DC in black. Match the cord cap on the equipment to the receptacle pattern before ordering either one.
5) I need a welder outlet in a shop. Which Bryant FR model fits a typical 50 amp 250V welder plug?
Most 50A 250V welders use a NEMA 6-50 cord cap, which mates with the 9650FR. If the welder is wired for a 50A 125/250V 4-wire cord (NEMA 14-50), use the 9450FR instead. Both are single-outlet FR Series devices, so each one sits on its own dedicated circuit.
6) Is a straight-blade Bryant FR receptacle the right choice, or do I need a twist-lock?
The FR Series is straight-blade NEMA configurations, so the plug pulls straight out. That's fine for stationary equipment in a fixed location. Where vibration, cord tension, or portable gear could pull a cord loose, a locking device is the better pick, and ZenSupply carries locking options such as the Pass & Seymour Turnlok 30A non-NEMA single receptacle and the Eaton industrial locking receptacle rated 50A, 600V/250V AC/DC. Note the Turnlok 3330 is non-NEMA, so its plug pattern will not interchange with an FR Series device.
7) I'm standardizing 120V single outlets across a building. Are the FR Series models the right family?
Only if the loads are 30A or 50A. The 120V options in the FR Series are the 9530FR (NEMA 5-30R) and 9550FR (NEMA 5-50R), both high-amperage devices. For ordinary 15A or 20A 125V single outlets, look instead at the Eaton commercial specification grade single receptacle rated 15A or the Eaton heavy-duty industrial specification grade decorator single receptacle that takes #14-10 AWG.
8) What should be installed instead of a Bryant FR Series receptacle for ordinary 15A or 20A 125V outlets?
The Bryant FR Series covers single-outlet patterns for larger equipment, including NEMA 6-30R, 14-30R, 14-50R and 6-50R. For standard 125V convenience power, the Eaton 5262W is a heavy-duty industrial duplex receptacle rated 15A 125V in the 5-15R pattern, gray, and the Eaton 816W-BOX is a commercial specification grade single receptacle rated 15A. For a single-gang decorator opening, the Eaton 6450W is an industrial specification grade decorator single receptacle accepting #14-10 AWG conductors.
9) Will a Bryant FR Series receptacle work for isolated-ground IT circuits?
The Bryant FR Series is a single receptacle providing one dedicated outlet connection point, which suits a dedicated equipment circuit, but it is not an isolated-ground device. Where the specification calls for an isolated ground on a 125V circuit, the Pass and Seymour IG5362-I is a heavy-duty spec-grade isolated ground duplex receptacle rated 20A 125V. The difference is the ground path: an isolated-ground device separates the receptacle ground terminal from the yoke and box.
10) What is the Bryant 9306 option in the FR Series line?
Within the FR Series selections, 9306 is the one choice identified by model number rather than by a NEMA pattern designation, so it is not a standard NEMA straight-blade configuration like the 6-30R or 14-50R models. If your equipment cord cap is a recognized NEMA pattern, order the FR model matching that pattern instead and verify the 9306 against the plug you actually have.
11) Is there a receptacle that switches power off automatically, as an alternative to a Bryant FR Series device?
The Bryant FR Series is an always-on single receptacle matched to a NEMA plug pattern, with no control function. For plug-load control on a 125V circuit, the Pass and Seymour PLT26351 is a heavy duty spec grade plug load timer receptacle rated 20A 125V. It serves energy-code plug-load requirements that a straight receptacle cannot.
