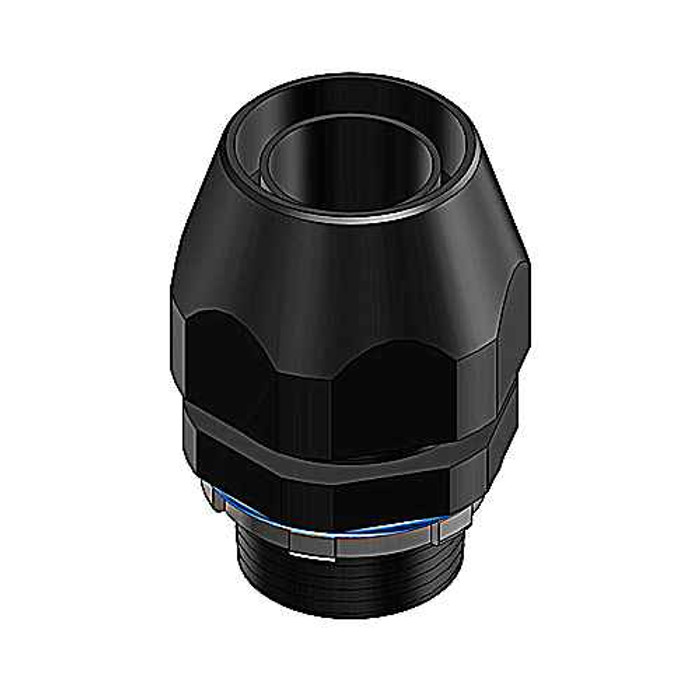

Thomas & Betts 3/4 Inch Liquid Tight Straight Connector with Enhanced Sealing Technology
Professional-Grade Conduit Connection for Hazardous Location Applications
The Thomas & Betts 3/4 inch liquid tight straight connector delivers reliable conduit-to-fitting connections in demanding environments. This thermoplastic connector features external thread construction with inner surface teeth that bite into conduit or tubing to enhance clamping and sealing action. Suitable for hazardous locations including Class I Div 2, Class II Div 1 & 2, Groups E, F, G, and Class III per N.E.C. Article 501-4, 502-4 and 503-3, ensuring compliance with critical safety standards.
Professional Features & Benefits
- 3/4 Inch Nominal Size: Provides optimal fit for standard conduit applications with precise dimensional compatibility.
- Thermoplastic Construction: Offers excellent chemical resistance and durability in harsh environmental conditions.
- Inner Surface Teeth Design: Bites into conduit or tubing to create superior clamping force and enhanced sealing performance.
- External Thread Configuration: Ensures secure mechanical connection with compatible fittings and enclosures.
- Hazardous Location Rated: Approved for Class I Div 2, Class II Div 1 & 2, Groups E, F, G applications per NEC requirements.
- UL E23018 and CSA Listed: Meets rigorous safety and performance standards for professional electrical installations.
- Friction Reducing Ridges: Outside surface design minimizes installation effort while maintaining secure connections.
Technical Specifications
- Colour: Black
- Construction Type: External thread
- Department: Electrical
- Etim: EC001178 Screw connection for protective plastic hose
- Inner Dimensions Inches: 6x6x4
- Inner Quantity: 10
- Material: Thermoplastic
- Material Screw Gland: Other
- Material Sealing: Other
- Nominal Size In Inch: 3/4 inch
- Outer Dimensions Inches: 26.5x6.5x5
- Outer Quantity: 50
- Product Details: Bullet-Straight
- Product Group: Connectors
- Product Model: Straight
- Product Subgroup: Electrical Connectors
- Product Type: Bullet-Straight
- Revolving Thread: N
- Standard: UL E23018, CSA
- Thread Connection Size: Other
- Thread Length: 14.78mm
- Type Of Connection: Thread
- Unspsc: 39121420 Liquid tight connectors
- Weight Uom: 12.5 lbs. per 100
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Hazardous Location Electrical Installations
- Industrial Process Control Systems
- Chemical Processing Facilities
- Petrochemical Plant Wiring
- Manufacturing Equipment Connections
- Commercial Building Electrical Systems
- Emergency Power Distribution
Why Choose Thomas & Betts Quality?
Thomas & Betts liquid tight connectors deliver proven reliability with UL E23018 and CSA listings ensuring compliance with the highest safety standards. The thermoplastic construction and specialized ferrule design provide long-term durability and consistent sealing performance in the most demanding professional applications.
Manufacturer Resources
Product Specs
- Colour:
- Black
- Construction Type:
- External thread
- Etim:
- EC001178 Screw connection for protective plastic hose
- Inner Dimensions Inches :
- 6x6x4
- Inner Quantity:
- 10
- Material:
- Thermoplastic
- Material Screw Gland:
- Other
- Material Sealing:
- Other
- Nominal Size In Inch:
- 3/4 inch
- Outer Dimensions Inches :
- 26.5x6.5x5
- Outer Quantity:
- 50
- Product Group:
- Connectors
- Revolving Thread:
- N
- Standard:
- UL E23018, CSA
- Thread Connection Size:
- Other
- Thread Length:
- 14.78mm
- Type Of Connection:
- Thread
- Unspsc:
- 39121420 Liquid tight connectors
- Weight Uom:
- 12.5 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Type:
- Bullet-Straight
- Product Model:
- Straight
- Product Details:
- Bullet-Straight
