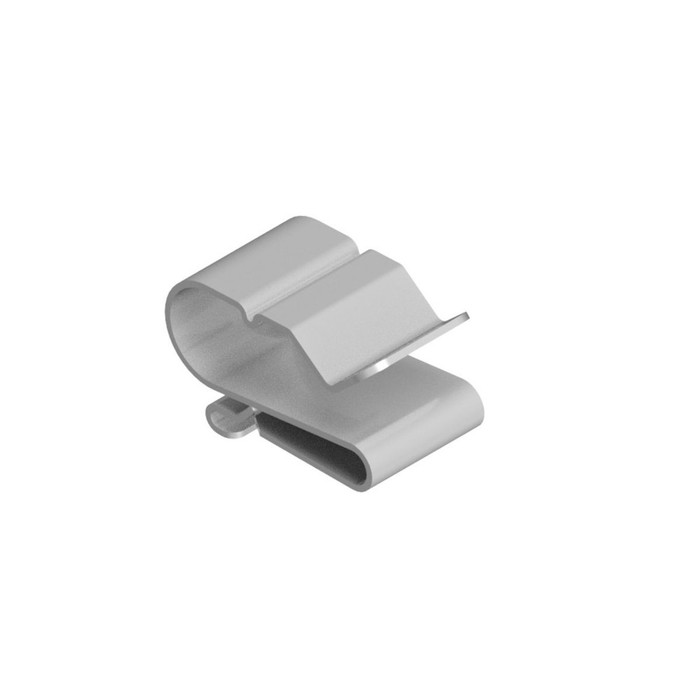

Burndy ACC-PV Wiley Series 304 Stainless Steel PV Wire Management Clip

Burndy ACC-PV Wiley Series 304 Stainless Steel PV Wire Management Clip

(No reviews yet) Write a Review

Model: ACC-PV

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

Burndy ACC-PV Wiley Series 304 Stainless Steel PV Wire Management Clip

The Burndy ACC-PV Wiley Series wire management clip is engineered from 304 stainless steel to secure 1 to 2 PV wires directly to the module frame in solar array installations. This straight-on mounting clip attaches to module frames or flanges with a thickness range of 1.3mm to 2.5mm, keeping conductor runs organized and protected from abrasion, vibration, and UV exposure on rooftop and ground-mount solar arrays. Backed by Burndy's Wiley product line, the ACC-PV clip delivers a corrosion-resistant, professional-grade solution for photovoltaic wire routing and module-level cable management. The compact mechanical design allows installers to route and secure PV conductors quickly on both rooftop and ground-mount arrays without adhesives or additional hardware.

Key Features

  • Wire Capacity: Secures 1 to 2 PV wires per clip directly to the module frame, keeping conductors neatly bundled.
  • Durable Construction: Manufactured from 304 stainless steel for long-term corrosion resistance in outdoor, UV-exposed solar environments.
  • Straight-On Mounting: Attaches directly to the module frame or flange for a clean, low-profile, straight-on installation.
  • Flange Compatibility: Fits module frames and flanges with a thickness range of 1.3mm to 2.5mm for broad module compatibility.
  • Wiley Series: Part of Burndy's Wiley line of solar wire management accessories, purpose-built for PV installations.
  • Mechanical Mounting: Tool-friendly mechanical clip design simplifies field installation without adhesives or fasteners into the module itself.
  • Field-Ready Design: Straight-on clip geometry supports fast, repeatable installation across large PV arrays where consistent wire routing matters.

Technical Specifications

  • Product Material: 304 Stainless Steel
  • Series: Wiley
  • Mounting Method: Module Frame or Flange Clip - Straight on. Flange Thickness Range: 1.3mm - 2.5 mm
  • Product Type: Mechanical

Typical Applications

  • Solar PV Module Wire Management
  • Photovoltaic Array Wire Routing and Organization
  • Rooftop Solar Installations
  • Ground-Mount Solar Array Systems
  • Renewable Energy System Wiring Organization

Why Burndy?

Burndy's ACC-PV Wiley Series clip combines 304 stainless steel construction with a precisely engineered flange thickness range to deliver a secure, corrosion-resistant grip on module frames or flanges. For solar installers who need dependable wire management that withstands outdoor conditions, this clip provides consistent, professional-grade performance across photovoltaic array installations. Pairing a Wiley Series clip with genuine Burndy hardware helps installers maintain clean, code-conscious cable management from the module edge through the array wiring run.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Series:
Wiley
Product Type:
Cable Clip
Product Material:
304 Stainless Steel
Department:
Electrical
Product Subgroup:
Cable Accessories
Product Group:
Cable Management & Identification

Burndy ACC-PV – Frequently Asked Questions

1) Will the Burndy ACC-PV clip fit my solar module frame?
The ACC-PV Wiley clip grips module frames or flanges measuring 1.3mm to 2.5mm thick. Measure the lip of your module frame or rail flange where you want the clip to sit. If it falls inside that band, the clip snaps straight on. Thicker or thinner edges will not hold properly.
2) How many PV wires can one ACC-PV clip hold?
One or two PV wires per clip. If you are running home runs with more conductors than that at a single point, plan on multiple clips along the frame rather than trying to force extra wire into one.
3) Is the ACC-PV clip corrosion resistant enough for a coastal or ground-mount array?
It is made from 304 stainless steel, which is the standard choice for outdoor PV hardware exposed to weather and UV. The material also means the clip will not degrade the way adhesive or plastic tie mounts do after a few seasons on a roof.
4) What is the difference between a straight-on clip like the ACC-PV and a wire clip that mounts at an angle?
The ACC-PV is a straight-on design: the wire runs parallel with the frame edge as the clip seats onto it, giving a low-profile routing path along the module. That is what you want for running conductors down the length of a module edge. If your conductors have to break away perpendicular from the frame toward a rail or combiner, a straight-on clip will fight you and a different clip geometry suits better.
5) What is the correct Burndy part number to order for the Wiley PV wire clip?
Order it as Burndy ACC-PV, part of the Wiley line of solar wire management accessories. That is a single catalog part, not a family with size or finish options to specify.
6) Can I use the ACC-PV on both rooftop and ground-mount solar arrays?
Yes, both. The clip is intended for PV module wire routing on rooftop installs and ground-mount arrays alike, since it attaches to the module frame rather than to any particular racking system.
