Burndy FASTAP with LINEMAN ASSIST Aluminum Parallel Groove Clamp 336.4 MCM Professional Electrical Connector

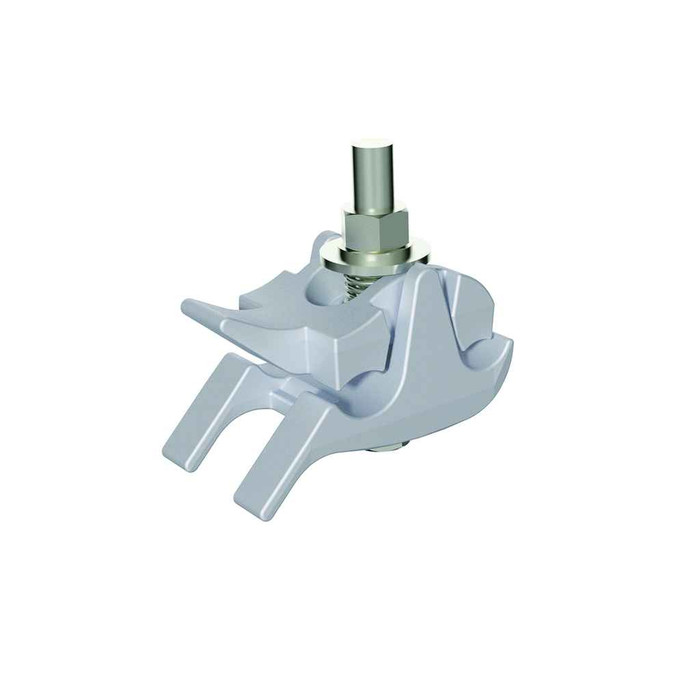

Burndy FASTAP with LINEMAN ASSIST Aluminum Parallel Groove Clamp

Professional Electrical Connection Solution for Multiple Conductor Types

The Burndy FASTAP with LINEMAN ASSIST Aluminum Parallel Groove Clamp delivers reliable electrical connections for utility and industrial applications. This professional-grade aluminum connector accommodates multiple conductor types including AAAC, ACSR, aluminum stranded, and copper conductors up to 336.4 MCM, providing versatile connection capabilities with proven Burndy quality and durability.

Professional Features & Benefits

• 336.4 MCM Capacity: Handles large conductor sizes for high-current applications and utility-grade installations
• Aluminum Construction: Provides excellent corrosion resistance and lightweight performance for outdoor utility environments
• FASTAP Technology: Enables efficient installation with reduced labor time and consistent connection quality
• LINEMAN ASSIST Design: Enhances safety and ease of installation for field technicians working on energized systems
• Multi-Conductor Compatibility: Accommodates AAAC, ACSR, aluminum stranded, and copper conductors for versatile application use
• Compact Dimensions: 2.82" width x 2.62" height x 1.62" length provides space-efficient installation in crowded utility configurations

Technical Specifications

• Certification Csa Approved: No
• Conductor Aaac 5005 Size: 6 STR - 336.4
• Conductor Aaac 5005 Size Range: 6 STR - 336.4
• Conductor Aaac 6201 Run: 6 STR - 336.4
• Conductor Aaac 6201 Size: 6 STR - 336.4
• Conductor Aaac 6201 Size Range: 6 STR - 336.4
• Conductor Acsr Str Size: 6 STR - 336.4
• Conductor Acsr Str Size A Range: 2 Str. - 336.4
• Conductor Acsr Str Size B Range: 6 Str. - 4/0
• Conductor Al Str Size A: 1 SOL - 400
• Conductor Al Str Size A Range: 1 Sol. - 400
• Conductor Al Str Size B: 8 SOL - 4/0 STR
• Conductor Al Str Size B Range: 8 Sol. - 4/0 Str.
• Conductor Copper Solid Size: 8-400
• Conductor Copper Solid Size Range: 8-400
• Conductor Copper Str Size A Range: 1 Sol. - 400
• Conductor Copper Str Size B Range: 8 Sol. - 4/0 Str.
• Dimension Height Inch: 2.62 in
• Dimension Length Overall Inch: 1.62 in
• Dimension Pad Width Inch: 2.82 in
• Dimension Width Inch: 2.82 in
• Item Type: 3B
• Plated: N
• Plating Type: Unplated
• Product Material: Aluminum
• Standards Rohs Compliance Status: CM
• Trade Name: FASTAP�
• Upc 12 Digit: 7.81811E+12

Installation & Operation

1. Mount the clamp in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Utility Distribution Systems
• Electrical Transmission Lines
• Industrial Power Distribution
• Commercial Electrical Infrastructure
• Substation Connections
• Emergency Power Systems
• Renewable Energy Installations

Why Choose Burndy Quality?

Burndy parallel groove clamps deliver proven reliability with aluminum construction and unplated finish for long-term performance in demanding electrical applications. The FASTAP technology with LINEMAN ASSIST design ensures professional installation efficiency while maintaining the connection integrity required for critical electrical infrastructure.
