Burndy KLU70 Copper Offset Tongue Mechanical Lug, 1-Hole

Burndy KLU70 Copper Offset Tongue Mechanical Lug, 1-Hole

(No reviews yet) Write a Review

Model: KLU70

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy KLU70 Copper Offset Tongue Mechanical Lug, 1-Hole

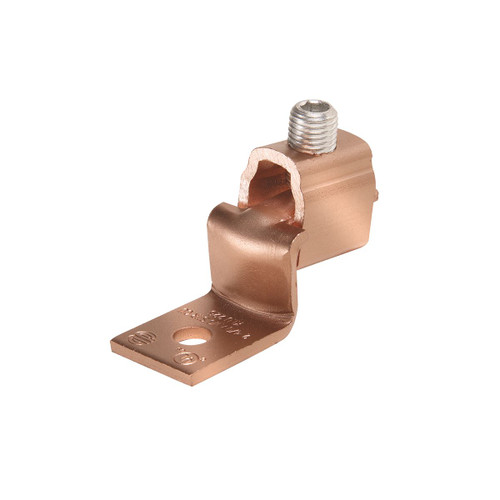

This Burndy copper offset tongue mechanical terminal lug is built for secure, dependable electrical terminations on grounding, bonding, and equipment connections. This 1-hole lug features a 1/4" stud size and an unplated copper finish, and it accepts a wide conductor range from #8 AWG solid to 2 AWG stranded copper wire. Sold under Burndy's SCRULUG™ trade name, this mechanical lug is a set-screw connector that delivers a fast, tool-only termination without the need for crimping equipment, making it a practical choice for electricians working in the field, in a panel shop, or on a service upgrade where reliable copper-to-copper contact is essential.

Key Features

  • Trade Size: 1/4" stud size fits standard grounding and bonding hardware for a secure, bolted connection.
  • Durable Copper Construction: Solid copper body provides high electrical conductivity and long-term connection reliability, even under repeated load cycling.
  • Offset Tongue Design: The offset tongue geometry improves clearance and alignment when terminating in tight enclosures or crowded panels, reducing installation time.
  • 1-Hole Configuration: Single-hole mounting pattern simplifies installation to grounding bars, equipment pads, and bonding points.
  • Wide Conductor Range: Accepts #8 AWG solid through 2 AWG stranded copper conductors, giving installers flexibility across a range of wire sizes on a single lug.
  • Mechanical Set-Screw Termination: The SCRULUG™ mechanical lug design allows quick, tool-only installation with a standard hex or slotted driver, eliminating the need for a dedicated crimping tool.
  • Unplated Finish: Bare copper finish is suited for standard indoor electrical terminations.

Technical Specifications

  • Conductor Range: 8-2-AWG
  • Trade Name: SCRULUG™

Typical Applications

  • Grounding and Bonding Connections
  • Panelboard and Switchgear Wiring
  • Electrical Equipment Terminations
  • Commercial and Industrial Electrical Installations
  • Renovation and New Construction Wiring

Why Burndy?

Burndy is a long-established name in copper mechanical connectors, and this SCRULUG™ lug reflects that reputation with solid copper construction and a dependable mechanical set-screw termination. Its offset tongue, 1-hole design and broad #8 AWG Sol-2 AWG Str conductor range make it a practical, code-compliant choice for grounding, bonding, and equipment terminations on professional electrical projects where a reliable, reusable mechanical connection is preferred over a permanent crimp.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Wire Size:
8-2-AWG
Product Type:
Mechanical Lug
Trade Name:
SCRULUG™
Product Material:
Copper
Department:
Electrical
Product Subgroup:
Lugs & Terminals
Product Group:
Wire Connectors & Terminals

Burndy KLU70 – Frequently Asked Questions

1) What wire sizes does the Burndy KLU70 lug accept?
The KLU70 takes copper conductors from #8 AWG solid up to 2 AWG stranded, so one lug covers a branch-circuit ground wire and a service-size bonding jumper alike. It's a set-screw (mechanical) termination, so the same body handles anything in that range without changing dies or tooling.
2) Will the KLU70 bolt to a 1/4 inch ground bar stud?
Yes. The KLU70 has a single mounting hole sized for a 1/4 inch stud, which is the common stud on grounding bars, equipment bonding pads, and panelboard ground bars. One hole means you should snug it against a flat, clean pad so the tongue can't rotate under torque.
3) Do I need a crimper to install this Burndy lug?
No crimper. The KLU70 is a SCRULUG mechanical lug, terminated with a set screw using a standard hex or slotted driver. That's why panel shops and service crews keep them around: no dies, no hydraulic head, and the connection can be backed out and re-used if a conductor has to be re-pulled.
4) Can I use the KLU70 on aluminum conductors?
No. The KLU70 is a copper body in a bare, unplated finish and is specified for copper conductors from #8 solid to 2 AWG stranded. For aluminum or for mixed aluminum/copper runs you need a lug marked AL9CU or equivalent dual-rated, typically plated. Putting aluminum into a copper-only lug risks a galvanic, high-resistance joint.
5) What does the offset tongue on the KLU70 actually do for me?
The tongue is stepped off the barrel axis, so the bolt pad sits on a different plane than the conductor. In a crowded panel or a shallow enclosure that buys you clearance and lets the wire approach the ground bar without a hard bend. If your conductor lines up straight onto the pad, a straight-tongue lug is the simpler pick; the offset earns its place when the bar and the wire are not on the same plane.
6) Is a bare copper lug OK outdoors or in a wet location?
The KLU70's finish is unplated bare copper, which the spec calls out for standard indoor electrical terminations. Outdoors, in damp vaults, or in corrosive/marine air, bare copper will oxidize at the joint. For those spots pick a tin-plated lug, or at minimum treat the connection with a listed oxide-inhibiting joint compound inside a suitable enclosure.
7) Is one KLU70 enough for a ground bar connection, or do I need a two-hole lug?
For most grounding and bonding terminations on a bar or equipment pad, the single 1/4 inch hole is what's used. Where a spec or drawing calls for a two-hole NEMA pad, typically on larger feeder and switchgear terminations where rotation has to be positively prevented, the KLU70's 1-hole pattern won't satisfy it and you need a 2-hole lug instead.
8) What is the Burndy part number to order and where do I get the spec sheet?
Order it as Burndy KLU70, the manufacturer part number. Burndy publishes the spec sheet for it directly, at hubbellcdn.com/specsheet/BRDY-KLU70-SPEC-EN.pdf, which is the document to attach when a submittal package asks for the lug cut sheet.
9) Can I standardize on the KLU70 across a building's panelboards?
It's a reasonable standardization item for indoor copper grounding and bonding work: one part number covers #8 solid through 2 AWG stranded, mounts to a 1/4 inch stud, and installs with a driver instead of a crimp tool, so stockroom and truck inventory stays small. The limits to plan around are copper-only conductors and indoor, dry locations.
