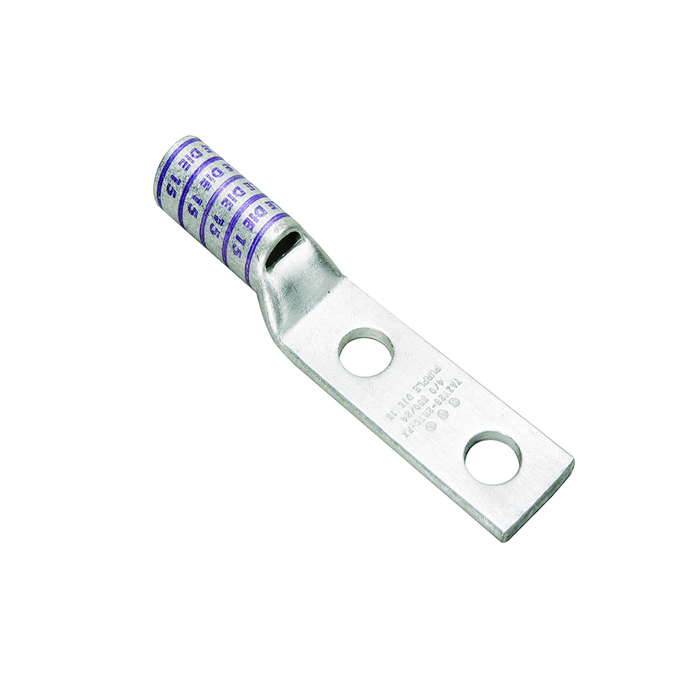

Burndy HYLUG Long Barrel Copper Compression Lug, 2-Hole, Tin-Plated

Burndy HYLUG Long Barrel Copper Compression Lug, 2-Hole, Tin-Plated

(No reviews yet) Write a Review

Model: YAZ27-2N

In Stock (leaves warehouse same day if ordered before 3pm ET)

$24.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy HYLUG Long Barrel Copper Compression Lug, 2-Hole, Tin-Plated

The Burndy HYLUG™ long barrel copper compression lug is a two-hole terminal connector built for reliable, code-compliant power connections. Featuring a skived long barrel with an inspection window, a straight tongue, and a 1/2" stud size, this copper lug is rated to a minimum of 600V and up to 35kV maximum, and is manufactured to meet UL468A-468B industry standards. CSA approved and UL Listed, it is engineered for demanding electrical, industrial, and utility terminations where dependable copper-to-copper conductivity is required.

Key Features

  • Copper Construction: Solid copper conductor material delivers excellent electrical conductivity and long-term terminal performance.
  • Long Skived Barrel: Long barrel style with a skived design and inspection window allows visual verification of proper conductor insertion before crimping.
  • 2-Hole Straight Tongue Design: Two-hole mounting pattern with a straight tongue angle for a secure, vibration-resistant double-bolt connection.
  • Stud & Hole Sizing: 1/2" stud and thread size with a 0.56 in (14 mm) hole diameter for compatibility with standard hardware.
  • Voltage Rating: Rated for a minimum of 600V, with a maximum voltage capability of 35,000V (35 kV), suited to a wide range of power applications.
  • Temperature Rating: Rated to 194°F for demanding thermal environments.
  • Tin-Plated Finish: Tin - electro plated finish helps resist corrosion and maintain a stable, low-resistance connection over time.
  • Industry Standards: Manufactured to meet UL468A-468B for code conductor applications.

Certifications & Compliance

  • UL Listed
  • CSA Approved
  • Meets UL468A-468B Industry Standards

Technical Specifications

  • Certification - cULus: No
  • Temperature Rating: 194
  • Dimension - Thread Size: 1/2
  • Physical Attribute - Number of Holes: 2
  • Certification - ETL: No
  • Certification - CSA Approved: Yes
  • UL Listed: Yes
  • Dimension - Stud Size inch: 1/2
  • Standards - RoHS Compliance Status: CM
  • Rating - Minimum Voltage: 600
  • Product Type: Electrical Component
  • Dimension - Bolt Size fraction: 1/2
  • Certification - UL Recognized: No
  • Minimum Pack Quantity: 1
  • Department: Electrical
  • Product Group: Wire Connectors

Typical Applications

  • Electrical Panel and Switchgear Terminations
  • Grounding and Bonding Connections
  • Substation and Utility Power Connections
  • Industrial Motor Control and Equipment Wiring
  • Commercial and Industrial Electrical Installations
  • Renovation and New Construction Projects

Why Burndy?

Burndy's HYLUG™ line of copper compression lugs is engineered with skived long-barrel construction, an inspection window, and a tin-plated finish for dependable, corrosion-resistant terminations. Backed by UL Listing, CSA approval, and compliance with UL468A-468B industry standards, this copper connector delivers the code-compliant reliability professional electricians and contractors depend on for demanding power connections.

Manufacturer Resources

Spec Sheet

Product Specs

Physical Attribute - Tongue Angle:
Straight
Dimension - B Length fraction:
1-1/2 in
Certification - cULus:
No
Temperature Rating:
194
Dimension - Thread Size:
1/2
Feature - Barrel Type:
Long
Voltage - Maximum:
35000
Connector Type:
Terminal
Feature - Barrel Style:
Skived
Dimension - Hole Size inch:
0.56 in
Rating - KVA:
35 kV
Dimension - Hole Size mm:
14 mm
Physical Attribute - Number of Holes:
2
Dimension - Z inch:
0.64 in
Certification - ETL:
No
Standards - Industry Standards Met:
UL468A-468B
Trade Name:
HYLUG™
Conductor - Material:
Copper
Certification - CSA Approved:
Yes
UL Listed:
Yes
Dimension - Stud Size inch:
1/2
Industry Standard(s):
UL468A-468B
Standards - RoHS Compliance Status:
CM
Plating Type:
Tin - Electro Plated
Conductor - Copper Str Size Range:
3/0 AWG
Dimension - N inch:
0.62 in
Rating - Minimum Voltage:
600
Product Type:
Lug
Sub Brand:
HYLUG
Dimension - Bolt Size fraction:
1/2
Certification - UL Recognized:
No
Dimension - D inch:
3.01 in
Minimum Pack Quantity:
1
Department:
Electrical
Product Group:
Wire Connectors & Terminals
Connection Type:
Compression
Configuration:
2-Hole
Product Finish:
Tin-Plated
Voltage Rating:
600V
Listing:
UL Listed
Standards:
UL468A-468B
Product Material:
Copper
Product Subgroup:
Lugs & Terminals
Application:
For Code Conductor

Burndy YAZ27-2N – Frequently Asked Questions

1) Will this Burndy lug bolt to a 1/2 inch stud on my switchgear pad?
Yes. The HYLUG 2-hole lug is sized for 1/2 inch stud and bolt hardware, with a 0.56 in (14 mm) hole diameter and 1/2 inch thread size. Hole spacing on the pad has to match the lug's two-hole pattern as well, so check center-to-center against your bus before drilling anything.
2) Is this lug UL Listed and CSA approved for an inspected commercial install?
UL Listed and CSA approved, and built to UL468A-468B for code conductor terminations. Note it is UL Listed rather than UL Recognized or cULus marked, which is what most AHJs want to see on a power termination.
3) Can I use this tin-plated copper lug on aluminum conductor?
No. It is a copper-bodied lug specified for copper code conductor only. For aluminum or dual-rated conductor you need an AL9CU rated compression lug instead. The tin plating here is for corrosion resistance on the copper-to-copper joint, not for aluminum compatibility.
4) Why choose a 2-hole lug over a single-hole lug for a motor or switchgear termination?
Two bolts stop the lug rotating under vibration or fault current, which is why the two-hole straight tongue pattern is the common spec for motor control, switchgear and bus connections. A single-hole lug can spin off-axis and loosen. The tradeoff is pad space: you need a landing pad with two 1/2 inch holes at matching spacing.
5) What voltage can a Burndy HYLUG compression lug be used on?
Rated 600V minimum and up to 35 kV maximum, so the same lug covers ordinary 480V panel and motor work as well as medium voltage terminations in substation and utility gear.
6) What does the skived long barrel and inspection window actually do for me on the job?
The long barrel takes more crimps for a higher pull-out strength connection, and the inspection window lets you see the conductor bottomed out in the barrel before you crimp, so you are not guessing whether the strands went all the way in. Skiving thins the barrel wall so the crimp forms properly on copper conductor. Barrel length is 1-1/2 in, with an overall length dimension of 3.01 in.
7) Do I need a crimp tool for these Burndy HYLUG terminals, or can they be bolted on?
These are compression terminals, not mechanical set-screw lugs. The barrel has to be crimped onto the conductor with the correct die for the wire size, then the two-hole tongue bolts to the pad with 1/2 inch hardware. Bolts, washers and dies are not part of the lug itself.
8) Will this lug hold up in a hot electrical room or outdoor enclosure?
It carries a 194 degree F temperature rating, and the tin electro plated finish resists corrosion to keep the joint resistance stable over time. That covers typical switchgear, substation and industrial enclosure conditions.
9) Can I order a single Burndy YAZ lug or do I have to buy a box?
Minimum pack quantity is 1, so single pieces are orderable for a one-off termination or a service truck spare rather than only in cartons.
