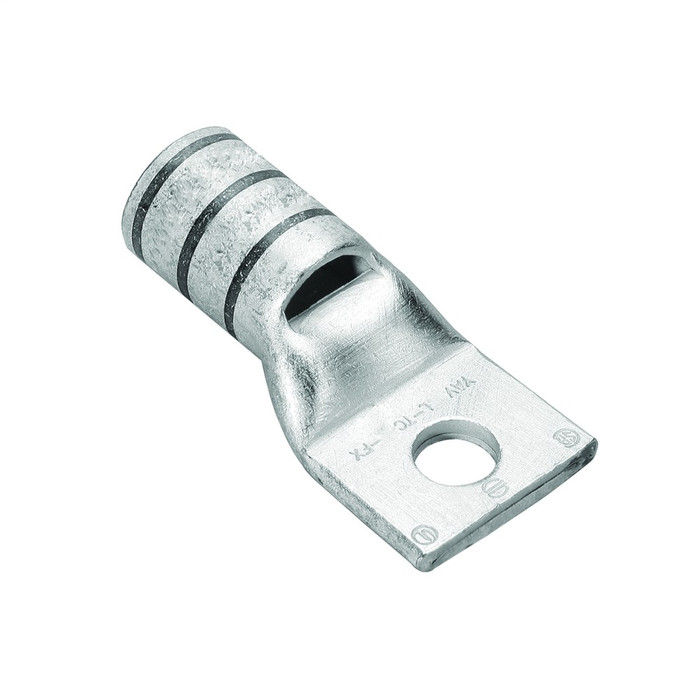

Burndy YAV27LTC12FX Compression Terminal Lug, 3/0 AWG Copper, 1-Hole, 1/2" Stud

Burndy YAV27LTC12FX Compression Terminal Lug, 3/0 AWG Copper, 1-Hole, 1/2" Stud

(No reviews yet) Write a Review

Model: YAV27LTC12FX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy YAV27LTC12FX Compression Terminal Lug, 3/0 AWG Copper, 1-Hole, 1/2" Stud

The Burndy YAV27LTC12FX is a one-hole compression terminal lug for 3/0 AWG copper conductors, including 3/0 Flex G,H,I,K,M and DLO cable. It features a copper standard barrel, 1/2" stud, and tin-plated finish, and is UL/CSA listed for 90°C operation up to 35kV with an inspection window and internal chamfer for verified terminations.

Key Features

  • Conductor Compatibility: Sized for 3/0 AWG copper, including 3/0 Flex G,H,I,K,M and DLO cable types.
  • Durable Construction: Copper barrel with tin-plated finish resists corrosion and maintains low contact resistance.
  • Compression Termination: Standard barrel with inspection window and internal chamfer for secure, verified crimps.
  • 1-Hole, 1/2" Stud: One mounting hole sized for a 1/2" stud for simple bolt-on connections.
  • Voltage Rating: UL/CSA rated for use up to 35kV at a 90°C operating temperature.
  • Die Index 14: Orange color coding identifies the 14 die index for proper compression tooling.
  • Application: Designed for flexible conductor terminations in power and control circuits.

Certifications & Compliance

  • UL Listed
  • CSA Approved
  • UL/CSA Rated to 35kV
  • RoHS Compliant

Technical Specifications

  • Mounting Holes: 1
  • Product Material: Copper
  • Termination Method: Compression
  • Insulated: Yes
  • Die Index: 14
  • Dimension - Stud Size inch: 1/2
  • Conductor - Copper Str Navy Size: 150 (61) Navy
  • Conductor - Copper DLO Size: 3/0 (450/#24) DLO
  • Dimension - Z inch: 0.55 in
  • Sub Brand: HYLUG
  • Plating Type: Tin
  • Dimension - L Length Overall mm: 66 mm
  • Dimension - Outside Diameter inch: 0.70 in
  • Dimension - B Length inch: 1.00 in
  • Dimension - Pad Width inch: 1.03 in
  • Dimension - Hole Size inch: 0.53 in
  • Product Details: Standard Barrel, Tin Plated
  • UL Listed: Yes
  • Conductor - CopperWeld Str Size: 3/0 E AWG;3/0 EK AWG;3/0 F AWG;3/0 G AWG;3/0 J AWG;3/0 V AWG
  • Application: For Flex Conductors
  • UPC: 781810022528
  • Rating - KVA: 35 kV
  • Dimension - Strip Length inch: 1 in
  • Product Type: Terminal
  • Rating - Minimum Voltage: 600
  • Standards - RoHS Compliance Status: CM
  • Certification - CSA Approved: Yes

Typical Applications

  • Flexible Cable and DLO Cable Terminations
  • Industrial Power Distribution Wiring
  • Motor and Equipment Lead Connections
  • Panelboard and Switchgear Terminations
  • Medium-Voltage Terminations up to 35kV

Why Burndy?

Burndy compression lugs feature copper barrels and tin-plated finishes for dependable, low-resistance, UL/CSA-listed connections. The color-coded, die-indexed design helps installers select the correct compression tooling for consistent, code-compliant terminations up to 35kV.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Mounting Holes:
1
Plating:
Tin Plated
Termination Method:
Compression
Insulated:
Yes
Die Index:
14
Certification - ETL:
No
Dimension - Stud Size inch:
1/2
Conductor - Copper Str Navy Size:
150 (61) Navy
Conductor - Copper DLO Size:
3/0 (450/#24) DLO
Dimension - Z inch:
0.55 in
Sub Brand:
HYLUG
Conductor - Copper Str Size:
3/0 AWG
Plating Type:
Tin
Dimension - Hole Size mm:
13 mm
Conductor - Copper Flex G Size:
3/0 AWG
UPC 12 Digit:
7818100225288
Conductor - Copper Flex M Size:
3/0 AWG
Certification - UL Recognized:
No
Conductor - Copper Flex I Size:
3/0 AWG
Dimension - L Length Overall mm:
66 mm
Dimension - Outside Diameter inch:
0.70 in
Dimension - B Length inch:
1.00 in
Dimension - Pad Width inch:
1.03 in
Dimension - Hole Size inch:
0.53 in
Dimension - Bolt Hole Size inch:
0.52 in
Dimension - Bolt Size fraction:
1/2
Product Details:
Standard Barrel, Tin Plated
UL Listed:
Yes
Plated:
Y
Application:
For Flex Conductors
UPC:
781810022528
Rating - KVA:
35 kV
Connector Type:
STANDARD BARREL
Dimension - Strip Length inch:
1 in
Color Code:
Orange
Voltage - Maximum:
35000
Minimum Pack Quantity:
1
Conductor - Copper Flex H Size:
3/0 AWG
Product Type:
Terminal
Trade Name:
HYLUG™
Rating - Minimum Voltage:
600
Physical Attribute - Number of Holes:
1
Standards - RoHS Compliance Status:
CM
Feature - Barrel Type:
Standard
Certification - CSA Approved:
Yes
Conductor - Copper Flex K Size:
3/0 AWG
Certification - cULus:
No
Product Material:
Copper
Product Size:
1/2"
