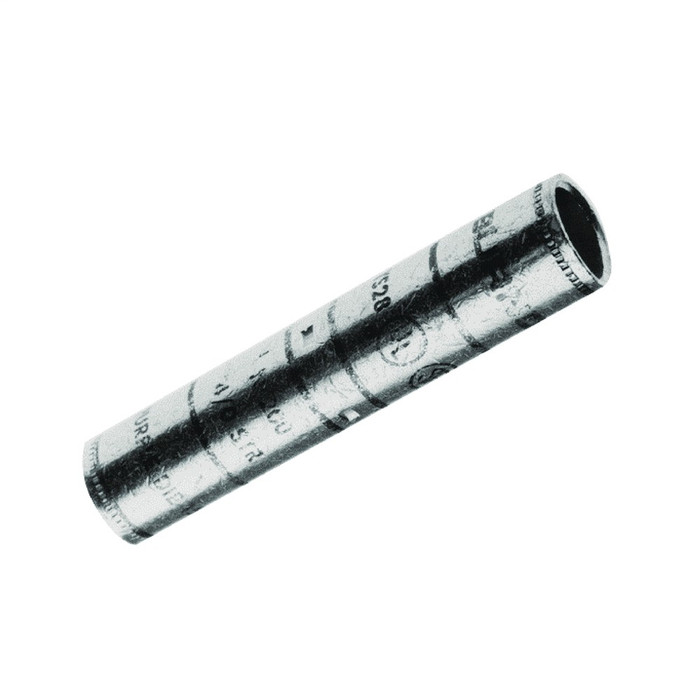

Burndy YS27 Long Barrel Copper Compression Splice, 3/0 AWG

Burndy YS27 Long Barrel Copper Compression Splice, 3/0 AWG

(No reviews yet) Write a Review

Model: YS27

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy YS27 Long Barrel Copper Compression Splice, 3/0 AWG

The Burndy YS27 is a long barrel copper compression splice designed for 3/0 AWG conductors, featuring an internal chamfer for smooth wire entry and a tin-plated finish for corrosion resistance. Part of Burndy's Hylink series, this splice is rated up to 35kV at 90°C and is UL/CSA listed for heavy-duty applications at higher voltages. The ORANGE color code and 14 die index simplify tool selection and installation on the job site.

Key Features

  • Trade Size: Sized for 3/0 AWG copper conductors.
  • Durable Construction: Copper body with a tin-plated (electro-plated) finish for enhanced corrosion resistance.
  • Long Barrel Design: Internal chamfer allows for smooth, snag-free conductor insertion.
  • Compression Termination: Uses a 14 die index with ORANGE color coding for quick, accurate die matching during crimping.
  • High Voltage Rating: Rated up to 35kV with a minimum voltage rating of 600V and a 90°C temperature rating.
  • Hylink™ Series: Engineered for heavy-duty applications used at higher voltages up to 35 kV.
  • Strip Length: Designed for a 1-1/2 in. conductor strip length.

Certifications & Compliance

  • UL Listed
  • CSA Approved
  • Compliant with UL468A-468B Industry Standards

Technical Specifications

  • Product Material: Copper
  • Termination Method: Compression
  • Series: Hylink
  • UPC: 781810507704
  • Dimension - L Length Overall mm: 84 mm
  • Product Details: YS, Long Barrel
  • Standards - RoHS Compliance Status: CM
  • Plated: Y
  • Rating - Minimum Voltage: 600
  • Rating - KVA: 35 kV
  • UL Listed: Yes
  • Dimension - Strip Length inch: 1-1/2
  • Feature - Barrel Style: Chamfered
  • Dimension - Length Overall inch: 3.30 in
  • Dimension - B Length inch: 1.45 in
  • Minimum Pack Quantity: 1
  • Trade Name: HYLINK™
  • Industry Standard(s): UL468A-468B
  • Plating Type: Tin - Electro Plated
  • Application: For Heavy Duty Applications And Used At Higher Voltages Up To 35 KV
  • Voltage - Maximum: 35000
  • Certification - CSA Approved: Yes
  • Conductor - Copper Str Navy Size: 150 (61) Navy
  • Sub Brand: HYLINK
  • Product Type: Splice

Typical Applications

  • Heavy-Duty Industrial Electrical Installations
  • Higher Voltage Power Distribution Up To 35kV
  • Copper Conductor Splicing and Cable Joints
  • Commercial and Utility Power Connections
  • Conduit and Raceway Cable Systems

Why Burndy?

Burndy's Hylink series compression splices combine copper construction with a tin-plated finish for reliable, corrosion-resistant connections. Backed by UL and CSA listings and compliance with UL468A-468B standards, the YS27 delivers code-compliant performance for demanding, higher-voltage electrical work.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Wire Size:
3/0 AWG
Plating:
Tin Plated
Termination Method:
Compression
Series:
Hylink
UPC:
781810507704
Dimension - L Length Overall mm:
84 mm
Product Details:
YS, Long Barrel
Standards - RoHS Compliance Status:
CM
Connector Type:
LONG BARREL
Plated:
Y
Rating - Minimum Voltage:
600
Rating - KVA:
35 kV
UL Listed:
Yes
Dimension - Strip Length inch:
1-1/2
Feature - Barrel Style:
Chamfered
UPC 12 Digit:
7818105077044
Dimension - Length Overall inch:
3.30 in
Certification - UL Recognized:
No
Certification - ETL:
No
Dimension - B Length inch:
1.45 in
Minimum Pack Quantity:
1
Certification - cULus:
No
Trade Name:
HYLINK™
Feature - Barrel Type:
Long
Industry Standard(s):
UL468A-468B
Conductor - Copper Str Size:
3/0 AWG
Standards - Industry Standards Met:
UL468A-468B
Plating Type:
Tin - Electro Plated
Voltage - Maximum:
35000
Certification - CSA Approved:
Yes
Color Code:
Orange
Conductor - Copper Str Navy Size:
150 (61) Navy
Sub Brand:
HYLINK
Product Type:
Splice
Product Material:
Copper
