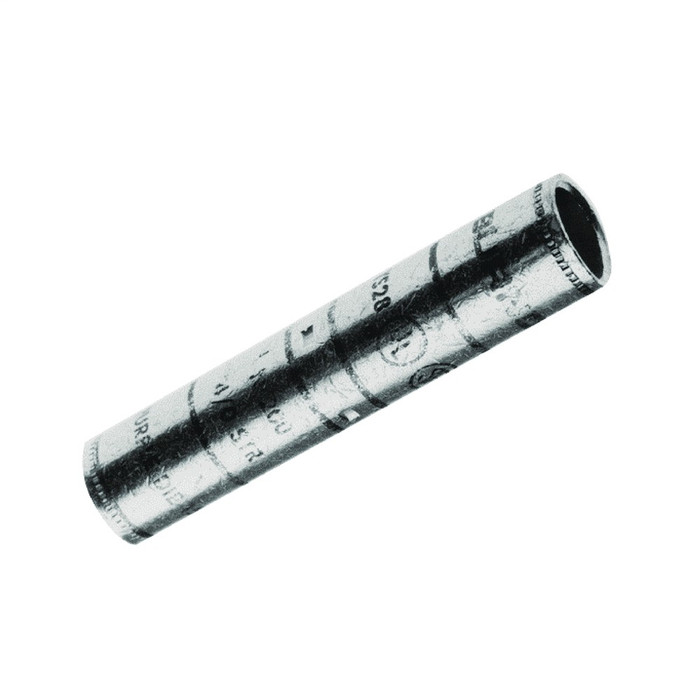

Burndy YS44 HYLINK Copper Compression Splice, Long Barrel, 1000 kcmil

Burndy YS44 HYLINK Copper Compression Splice, Long Barrel, 1000 kcmil

(No reviews yet) Write a Review

Model: YS44

In Stock (leaves warehouse same day if ordered before 3pm ET)

$41.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Burndy YS44 HYLINK Copper Compression Splice, Long Barrel, 1000 kcmil

The Burndy YS44 HYLINK Copper Compression Splice is a long barrel connector for splicing 1000 kcmil copper conductors in heavy-duty electrical work. Its internal chamfer barrel design eases cable entry, and the tin-plated copper body is rated up to 35kV and 90°C for higher-voltage utility and industrial installations. It is UL and CSA listed, color coded WHITE, and marked with a 27 Die Index for accurate compression tool matching.

Key Features

  • Conductor Size: Designed for splicing 1000 kcmil copper conductors.
  • Durable Construction: Copper splice body with a Tin - Electro Plated finish for enhanced corrosion resistance and conductivity.
  • Compression Termination: Compression connection with a long barrel, internal chamfer design for easier conductor insertion.
  • Voltage Rating: Rated up to 35kV, with a 600 minimum voltage rating for heavy-duty applications.
  • Temperature Rating: Rated for continuous operation at 90°C.
  • Finish: Tin - Electro Plated for reliable long-term conductivity.
  • Color Code & Die Index: WHITE color code with 27 Die Index for correct compression tool die selection.

Certifications & Compliance

  • UL Listed
  • CSA Approved
  • Meets UL468A-468B Industry Standards
  • RoHS Compliance Status: CM

Technical Specifications

  • Product Material: Copper
  • Termination Method: Compression
  • Plating Type: Tin - Electro Plated
  • Dimension - B Length inch: 2.94 in
  • Product Details: YS, Long Barrel
  • Dimension - L Length Overall mm: 166 mm
  • Rating - Minimum Voltage: 600
  • UPC: 781810527603
  • Dimension - Length Overall inch: 6.55 in
  • Minimum Pack Quantity: 1
  • Sub Brand: HYLINK
  • Voltage - Maximum: 35000
  • Standards - Industry Standards Met: UL468A-468B
  • Application: For Heavy Duty Applications And Used At Higher Voltages Up To 35 KV
  • Industry Standard(s): UL468A-468B
  • Feature - Barrel Style: Chamfered
  • Trade Name: HYLINK™
  • Certification - CSA Approved: Yes
  • UL Listed: Yes
  • Rating - KVA: 35 kV
  • Dimension - Strip Length inch: 3
  • Standards - RoHS Compliance Status: CM

Typical Applications

  • Heavy-Duty Industrial and Utility Electrical Connections
  • Underground and Overhead Copper Conductor Splicing
  • Medium-Voltage Distribution Systems Up To 35kV
  • Commercial and Industrial Power Infrastructure
  • Large Conductor Cable Splicing Requiring UL/CSA Compliance

Why Burndy?

The Burndy YS44 HYLINK compression splice reflects a focus on dependable, code-compliant connectors for demanding electrical work. Its tin-plated copper barrel, internal chamfer design, and UL/CSA listing to UL468A-468B standards deliver the conductivity and mechanical integrity professionals need for higher-voltage 1000 kcmil copper splicing.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BURNDY-20260915
Wire Size:
1000 KCMIL
Plating:
Tin Plated
Termination Method:
Compression
Plating Type:
Tin - Electro Plated
Dimension - B Length inch:
2.94 in
Certification - ETL:
No
Connector Type:
LONG BARREL
Product Details:
YS, Long Barrel
Dimension - L Length Overall mm:
166 mm
Rating - Minimum Voltage:
600
UPC:
781810527603
Dimension - Length Overall inch:
6.55 in
Conductor - Copper Str Size:
1000 kcmil
Certification - cULus:
No
Minimum Pack Quantity:
1
Color Code:
White
Certification - UL Recognized:
No
Sub Brand:
HYLINK
Voltage - Maximum:
35000
Standards - Industry Standards Met:
UL468A-468B
Industry Standard(s):
UL468A-468B
Feature - Barrel Style:
Chamfered
Feature - Barrel Type:
Long
Trade Name:
HYLINK™
Certification - CSA Approved:
Yes
UL Listed:
Yes
Rating - KVA:
35 kV
Dimension - Strip Length inch:
3
Standards - RoHS Compliance Status:
CM
UPC 12 Digit:
7818105276033
Plated:
Y
Product Type:
Compression Splice
Product Material:
Copper
Department:
Electrical
Product Group:
Wire Connectors & Terminals
Product Subgroup:
Splice Kits
Application:
For Heavy Duty Applications And Used At Higher Voltages Up To 35 KV

Burndy YS44 – Frequently Asked Questions

1) What conductor size does the Burndy YS44 splice take?
The YS44 HYLINK splice is sized for 1000 kcmil stranded copper conductor, one cable into each end. It is a copper body connector, so it is for copper only, not aluminum.
2) How much insulation do I strip back for a Burndy YS44 compression splice?
Strip 3 inches of insulation from each conductor end. The barrel is 6.55 inches overall, so each cable seats roughly half its length into the splice, and the chamfered barrel mouth helps the strands start in without birdcaging.
3) Which compression die do I use on the Burndy YS44?
The YS44 is color coded WHITE and marked with the 27 die index, so set your compression tool with the matching 27 index die. Match the die to the marking on the barrel rather than to the cable size.
4) Can I use the Burndy YS44 splice on a 15kV or 35kV medium voltage feeder?
Yes. The YS44 HYLINK splice is rated to 35kV maximum with a 600 volt minimum rating, and it is rated for 90 degrees C continuous, which covers medium voltage distribution work up to 35kV as well as ordinary 600V power feeders.
5) How long is the Burndy YS44 splice, and will it fit inside my splice box or duct?
Overall length is 6.55 inches (166 mm), with a 2.94 inch B dimension. Allow for that full barrel length plus taped or shrink insulation when you are checking clearance inside a handhole, pull box, or duct.
6) Is the YS44 a long barrel splice, and why would I pick that over a short barrel?
It is the long barrel version, which gives more contact area and more crimps per side than a short barrel of the same size. On 1000 kcmil feeders carrying heavy current, or in utility and underground work where the joint sees mechanical pull, the long barrel is the one specified. Short barrel versions exist mainly where space in the enclosure is tight.
7) Will the tin plating on the YS44 hold up in a wet underground vault?
The body is copper with an electro tin plating, which is what gives it corrosion resistance in damp vaults, manholes, and direct-buried splice locations. Tin plating also means it will not gall against tinned cable strands. It is still a copper-to-copper connector, so do not use it to join aluminum conductor.
8) Does the Burndy YS44 come in a bag or can I order a single piece?
Minimum pack quantity is 1, so you can buy a single splice for a one-off repair rather than a full carton.
9) Is the YS44 RoHS compliant for a spec submittal?
Burndy lists the YS44 with a RoHS compliance status of CM. For a submittal package, pair that with the UL Listing and the UL468A-468B conformance, which are the two items usually called out on a connector spec.
