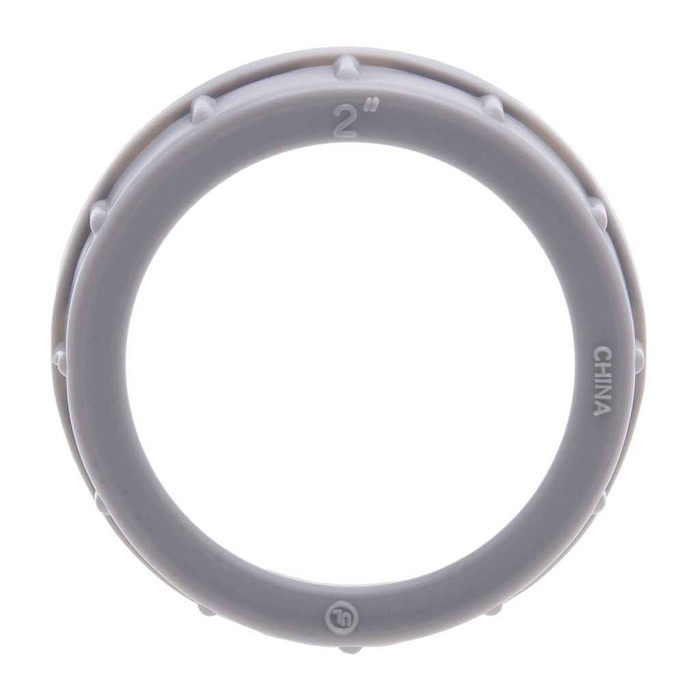

Bushings 1 In Insulated (50)
Features
- Easily screws on to threaded conduits.
- Provide smoothly rounded surfaces at the end of raceways.
- Prevent wires from being damaged as they pass through the end of the conduit.
- Plastic for rigid conduit
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- United States
- Division:
- Electrical H1
- Language Code:
- EN
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Electrical Fittings
- Product Height:
- 2 in
- Product Length:
- 10 in
- Product Weight:
- 0.75 lbs
- Product Width:
- 8 in
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Bushings
- Product Type:
- Insulated Bushings
- Type2:
- Insulated Bushings
- Product Details:
- Insulated Bushings
- Product Material:
- Plastic
Metallics IPB100 – Frequently Asked Questions
1) Will the Metallics IPB100 insulated bushing thread onto 1 inch rigid conduit?
Yes. The IPB100 is a 1 inch insulated bushing that screws directly onto threaded conduit ends, and it's made for rigid conduit. It threads on by hand and gives you a smooth rounded throat at the end of the raceway so conductors aren't cut on the pipe thread as they're pulled.
2) Do Metallics IPB100 insulated bushings meet Buy American requirements for a government job?
Yes on both counts: the IPB100 is flagged Buy American compliant and ARRA compliant, with United States country of origin. That covers the usual documentation a federal, state, or school district procurement office asks for on electrical fittings.
3) Are these Metallics bushings metal or plastic?
Plastic. The IPB100 is a molded insulating bushing rather than a metallic one, so it is purely for protecting conductors at the conduit end and is not a grounding or bonding component. If the job calls for a metallic grounding bushing with a lay-in lug, that's a different fitting.
4) Why use an insulated bushing on the end of conduit instead of leaving the pipe bare?
A bare threaded conduit end leaves sharp thread edges right where conductors turn into a box, gutter, or enclosure. Screwing a bushing like the IPB100 on gives a smoothly rounded surface at the end of the raceway so insulation isn't nicked during the pull or by vibration afterward. On 1 inch rigid that's the standard way to protect the wire where no other termination fitting is doing it.
5) What does a 50 count jar of Metallics IPB100 bushings weigh for shipping?
The packaged weight is 0.75 lbs, with the jar measuring 10 x 8 x 2 inches. Light enough to throw on a van shelf or add to a parts order without affecting freight.
