Bussmann 160NHM1B-690 NH1 Fuse-Link, 160A, 690V AC, aM Class, Dual Indicator

Bussmann 160NHM1B-690 NH1 Fuse-Link, 160A, 690V AC, aM Class, Dual Indicator

(No reviews yet) Write a Review

Model: 160NHM1B-690

In Stock (leaves warehouse same day if ordered before 3pm ET)

$422.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

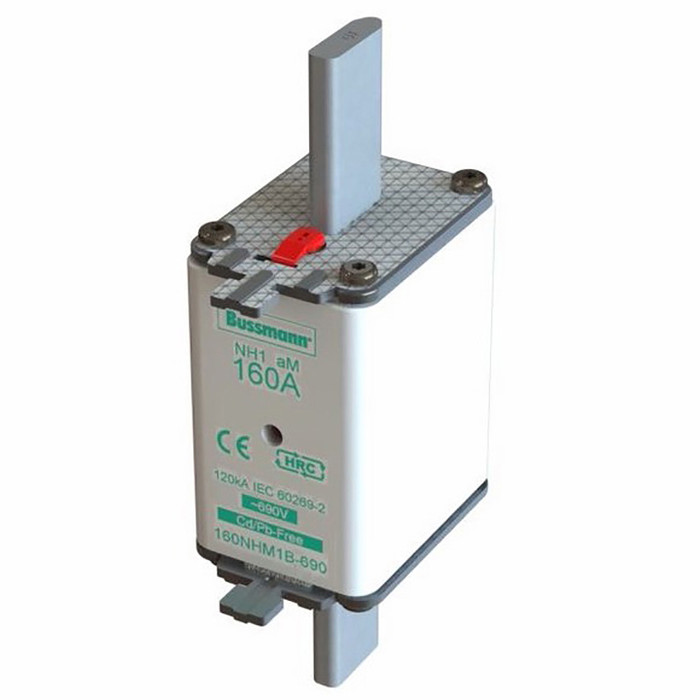

Bussmann 160NHM1B-690 NH1 Fuse-Link, 160A, 690V AC, aM Class, Dual Indicator

The Bussmann 160NHM1B-690 is a low-voltage NH1 fuse-link engineered for industrial power distribution and switchgear protection, rated 160 A at AC 690 V. Built to IEC 60269 and classified aM for motor and switchgear circuit protection, this fuse-link delivers a 120 kA breaking capacity for demanding industrial applications. A dual/combination fuse status indicator and live gripping lugs make installation, inspection, and fuse-status verification fast and reliable in commercial and industrial electrical systems.

Key Features

  • Current Rating: 160 A rated for reliable overcurrent protection in industrial low-voltage circuits.
  • Voltage Rating: AC 690 V rating suits demanding industrial power distribution applications.
  • NH1 Construction: NH1 body style with square fuse shape for standard NH-type fuse holders.
  • Class aM Utilization: Classified aM (switchgear protection) per IEC 60269 for motor and switchgear circuit protection.
  • Breaking Capacity: 120 kA (120 kAIC) rated switching capacity for high fault-current environments.
  • Dual Fuse Indicator: Combination fuse status indicator provides quick visual confirmation of fuse condition.
  • Live Gripping Lugs: Live gripping lugs ensure secure, low-resistance contact in the fuse holder.
  • Frequency Rating: Rated 45 Hz to 62 Hz for standard AC power systems.

Certifications & Compliance

  • IEC 60269 Compliant
  • RoHS Compliant

Technical Specifications

  • Application: industrial
  • Breaking Capacity: 120 kA
  • Certifications: IEC 60269
  • Class: Class aM
  • Compliances: RoHS Compliant
  • Construction: NH1
  • Frequency Rating Max: 62 Hz
  • Frequency Rating Min: 45 Hz
  • Fuse Indicator: Combination fuse status indicator
  • Fuse Shape: Square body
  • Insulated Metal Gripping Lugs (Imgl): No
  • Interrupt Rating: 120 kAIC
  • Packaging Type: Standard
  • Product Height: 63 mm
  • Product Length Depth: 135 mm
  • Product Weight: 407.3333333 g
  • Product Width: 40 mm
  • Rated Switching Capacity: 120 kA
  • Utilization Category: aM (switchgear protection)
  • Voltage Type: AC
  • Item Quantity: 3

Typical Applications

  • Industrial Low-Voltage Power Distribution
  • Motor and Switchgear Circuit Protection (Class aM)
  • Commercial and Industrial Electrical Panels
  • NH1 Fuse Holder Systems
  • High Fault-Current Industrial Installations

Why Bussmann?

Bussmann fuse-links are engineered to IEC 60269 standards, delivering the dependable overcurrent protection industrial electricians rely on for switchgear and motor circuits. With a 120 kA breaking capacity, RoHS-compliant construction, and a dual fuse status indicator for quick condition checks, the 160NHM1B-690 supports safe, code-compliant performance in demanding low-voltage industrial systems.

Manufacturer Resources

Product Specs

Amperage Rating:
160 A
Application:
industrial
Breaking Capacity:
120 kA
Certifications:
IEC 60269
Class:
Class aM
Compliances:
RoHS Compliant
Construction:
NH1
Frequency Rating Max:
62 Hz
Frequency Rating Min:
45 Hz
Fuse Indicator:
Combination fuse status indicator
Fuse Shape:
Square body
Insulated Metal Gripping Lugs Imgl:
No
Interrupt Rating:
120 kAIC
Packaging Type:
Standard
Product Height:
63 mm
Product Length Depth:
135 mm
Product Weight:
407.3333333 g
Product Width:
40 mm
Rated Switching Capacity:
120 kA
Utilization Category:
aM (switchgear protection)
Voltage Rating:
690 V
Voltage Type:
AC
Product Group:
Fuses
Department:
Electrical
Product Subgroup:
Other Fuses
Product Type:
fuse
Product Details:
fuse
Item Quantity:
3
