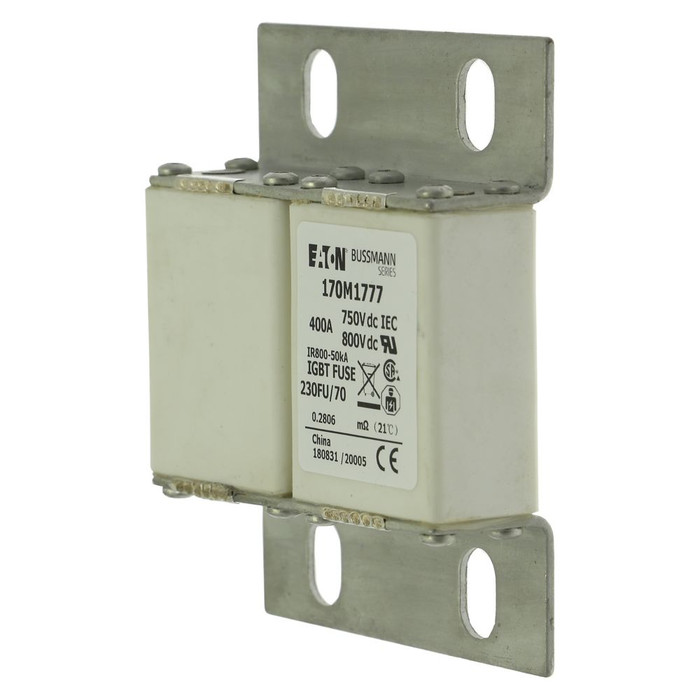

Bussmann 170M1777 High-Speed Fuse-Link, 400A, 690V AC, Class aR, Size 230

The Bussmann 170M1777 is a high-speed fuse-link engineered for demanding IGBT circuits and semiconductor protection applications. Rated 400A at AC 690V, this size 230 fuse-link measures 24 x 78 x 98 mm and carries a Class aR utilization rating for accompanied semiconductor protection. Backed by a 200 kAIC interrupt rating and dual IEC and UL recognition, it delivers the fast clearing speed solid-state power circuits require.

Key Features

  • Current Rating: 400A at AC 690V for reliable overcurrent protection in power electronic circuits.
  • High-Speed Class aR: Utilization category aR (accompanied semiconductor protection) provides fast-acting clearing to safeguard sensitive semiconductor devices.
  • Compact Dimensions: Size 230 body measuring 24 x 78 x 98 mm for standard fuse-holder compatibility.
  • Interrupt Rating: 200 kAIC breaking capacity for high fault-current environments.
  • Voltage Rating: 750V AC/DC per manufacturer voltage rating specification.
  • Fuse Shape: Square body with offset bolted tags for secure, low-resistance terminal connections.
  • Application-Specific Design: Purpose-built for IGBT circuits and semiconductor protection in industrial power conversion equipment.
  • No Indicator: Supplied without a blown-fuse indicator per manufacturer specification.

Certifications & Compliance

  • IEC 60269-4 Certified
  • CE Compliant
  • UL Recognized

Technical Specifications

  • Application: IGBT circuits, semiconductor protection.
  • Certifications: IEC 60269-4.
  • Class: Class aR.
  • Compliances: CE.
  • Fuse Indicator: None.
  • Fuse Shape: Square body, offset bolted tags.
  • Insulated Metal Gripping Lugs (IMGL): No.
  • Interrupt Rating: 200 kAIC.
  • Packaging Type: Standard.
  • Product Height: 52 mm.
  • Product Length/Depth: 265 mm.
  • Product Weight: 294 g.
  • Product Width: 104 mm.
  • Utilization Category: aR (accompanied semiconductor protection).
  • Voltage Rating: 750 V.
  • Voltage Type: AC/DC.

Typical Applications

  • IGBT Circuit Protection
  • Semiconductor Device Protection
  • High-Speed Fusing for Power Electronics
  • Industrial Power Conversion Equipment

Why Bussmann?

The Bussmann 170M1777 combines Class aR high-speed performance with a 200 kAIC interrupt rating, IEC 60269-4 certification, and CE compliance for dependable semiconductor circuit protection. Bussmann's engineering delivers the fast-clearing, code-compliant fuse performance that IGBT and power electronic systems depend on for safe, reliable operation.

Manufacturer Resources

Product Specs

Amperage Rating:
400 A
Application:
IGBT circuits, semiconductor protection
Certifications:
IEC 60269-4
Class:
Class aR
Compliances:
CE
Fuse Shape:
Square body, offset bolted tags
Insulated Metal Gripping Lugs Imgl:
No
Interrupt Rating:
200 kAIC
Packaging Type:
Standard
Product Height:
52 mm
Product Length Depth:
265 mm
Product Weight:
294 g
Product Width:
104 mm
Utilization Category:
aR (accompanied semiconductor protection)
Voltage Rating:
750 V
Voltage Type:
AC/DC
Product Group:
Fuses
Department:
Electrical
Product Subgroup:
Other Fuses
Product Type:
Fuse
Product Details:
Fuse

Bussmann 170M1777 – Frequently Asked Questions

1) Will a Bussmann 170M1777 high-speed fuse protect IGBTs, or do I need a standard industrial fuse?
The 170M1777 is built for exactly that job. It carries utilization category aR, accompanied semiconductor protection, which means it clears fast enough to protect solid-state devices like IGBTs and diode/thyristor stacks in power conversion gear. A standard gG or Class J industrial fuse clears too slowly to save a semiconductor junction. One thing to understand about aR: it is a partial-range device, so it handles short-circuit currents but is not intended to be the sole protection against low-level overloads. Pair it with the drive's own overload protection.
2) What are the current and voltage ratings on the Bussmann 170M1777?
It's a 400 A fuse-link with a 750 V rating, usable on AC or DC circuits. That covers the common 690 V AC drive and converter bus voltages. Breaking capacity is 200 kAIC, so it can sit on a stiff supply with high available fault current without needing an upstream limiter.
3) How does the 170M1777 fuse mount - is it a clip-in cartridge or bolted?
Bolted. The 170M1777 has a square body with offset bolted tags, so it lands on a busbar or fuse base with hardware rather than dropping into spring clips. Budget for the correct bolts and washers and torque the terminals properly; a loose tag on a 400 A fuse runs hot. It is not supplied with insulated metal gripping lugs.
4) What size body is the 170M square-body fuse in the 400A 690V rating?
The 170M1777 is a size 230 square-body fuse-link. Square-body fuses are ordered by body size because the mounting centres and tag geometry follow it, so a size 230 base or busbar layout is what this one drops onto. If your existing base was drilled for a different body size, the tags will not line up.
5) Does the Bussmann 170M1777 have a blown-fuse indicator or microswitch?
No indicator. The 170M1777 ships without a blown-fuse indicator, so there's no striker pin or visual flag to trip a microswitch. If your panel relies on fuse-blown monitoring for an alarm or drive shutdown, you'll need a version with an indicator or a separate voltage-sensing method across the fuse.
6) Is the Bussmann 170M1777 approved for use in equipment shipped to Europe?
It is certified to IEC 60269-4, the standard covering fuse-links for semiconductor protection, and it is CE compliant. It also carries UL Recognition, which matters if the same panel build has to satisfy a North American listing agency.
7) How much does the Bussmann 170M1777 fuse-link weigh?
294 g. Light enough to hand-mount, but on a vertical busbar assembly the tags carry the whole load, so support the cable or bar rather than letting it hang off the fuse.
