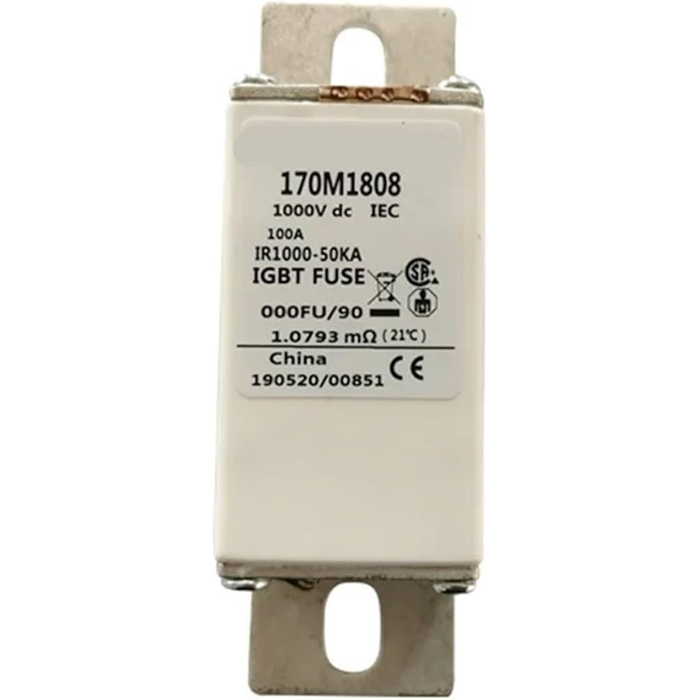

Bussmann 170M1808 Eaton High Speed Square Body Fuse, Size 000, 100A 1000V aR

Bussmann 170M1808 Eaton High Speed Square Body Fuse, Size 000, 100A 1000V aR

(No reviews yet) Write a Review

Model: 170M1808

In Stock (leaves warehouse same day if ordered before 3pm ET)

$349.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann 170M1808 Eaton High Speed Square Body Fuse, Size 000, 100A 1000V aR

The Bussmann 170M1808 is an Eaton Bussmann series high speed square body fuse built for demanding semiconductor protection duty. Rated 100A at AC 1000V in size 000, this aR class fuse measures 24 x 36 x 115 mm and is designed to IEC standards for use in IGBT inverter circuits with DC link voltages up to 1000 Vdc. Its square body with offset bolted tags delivers dependable high speed clearing for sensitive power electronics.

Key Features

  • Size 000: Compact 24 x 36 x 115 mm square body dimensions for standard size 000 semiconductor fuse mounting.
  • Amperage Rating: 100A rating for reliable overcurrent protection in high-demand circuits.
  • Voltage Rating: AC 1000V rating suited to IGBT inverter circuits with DC link voltages up to 1000 Vdc.
  • Utilization Category: Class aR (accompanied semiconductor protection) for high speed clearing alongside upstream devices.
  • Fuse Shape: Square body with offset bolted tags for secure, code-compliant connections.
  • Application: Engineered for IGBT circuits and semiconductor protection in power electronic assemblies.
  • Watt Losses: 32 W watt loss rating for predictable thermal performance in enclosure design.

Certifications & Compliance

  • UL Recognized
  • RoHS Compliant

Technical Specifications

  • Application: IGBT circuits, semiconductor protection
  • Certifications: UL Recognized
  • Class: Class aR
  • Compliances: RoHS Compliant
  • Fuse Indicator: None
  • Fuse Shape: Square body, offset bolted tags
  • Fuse Size: 0
  • Insulated Metal Gripping Lugs (Imgl): No
  • Packaging Type: Standard
  • Product Height: 24 mm
  • Product Weight: 185.6 g
  • Product Width: 36 mm
  • Used With: IGBT inverter circuits with DC link voltages up to 1000 Vdc
  • Utilization Category: aR (accompanied semiconductor protection)
  • Voltage Type: AC/DC
  • Watt Losses: 32 W

Typical Applications

  • IGBT Inverter Circuit Protection
  • Semiconductor Device Protection
  • Industrial Power Electronics and Drive Systems
  • DC Link Protection up to 1000 Vdc
  • High Speed IEC aR Class Fuse Applications

Why Bussmann?

Bussmann by Eaton engineers semiconductor fuses like the 170M1808 for dependable high speed clearing where sensitive IGBT and power electronic circuits demand it most. Backed by UL Recognition and RoHS compliant construction, this size 000 square body fuse delivers the consistent aR class performance professionals rely on for code-compliant, reliable power electronics protection.

Manufacturer Resources

Product Specs

Amperage Rating:
100 A
Application:
IGBT circuits, semiconductor protection
Certifications:
UL Recognized
Class:
Class aR
Compliances:
RoHS Compliant
Fuse Shape:
Square body, offset bolted tags
Fuse Size:
0
Insulated Metal Gripping Lugs Imgl:
No
Packaging Type:
Standard
Product Height:
24 mm
Product Length Depth:
115 mm
Product Weight:
185.6 g
Product Width:
36 mm
Utilization Category:
aR (accompanied semiconductor protection)
Voltage Rating:
1000 V
Voltage Type:
AC/DC
Watt Losses:
32 W
Product Group:
Fuses
Department:
Electrical
Product Subgroup:
Other Fuses
Product Type:
Fuse
Product Details:
Fuse
