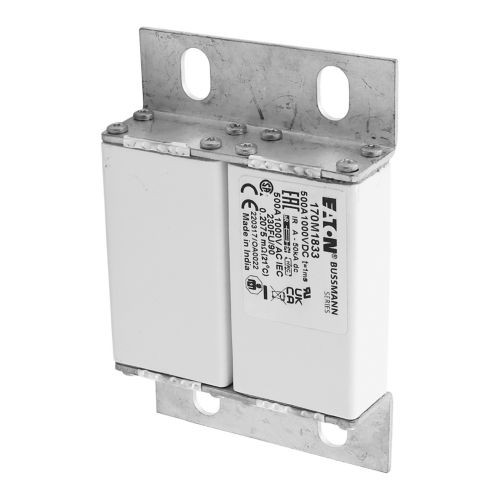

Bussmann 170M1833 Eaton Series High-Speed Square Body Fuse, 690V, 500A, Class aR
The Bussmann 170M1833 is an Eaton Bussmann series high-speed square body fuse engineered for semiconductor protection in demanding power electronics applications. Rated 690V (IEC) with a 500A amperage rating and a Utilization Category of Class aR (accompanied semiconductor protection), this fuse combines a compact square body design with offset bolted tags for secure bus-bar mounting. Built to the exacting standards professionals expect from the Eaton Bussmann series, the 170M1833 delivers the fast-acting, current-limiting performance semiconductor circuits demand, backed by a 1000V voltage rating for added installation flexibility.
Key Features
- Amperage Rating: 500A rated fuse sized for high-current semiconductor protection circuits.
- Voltage Rating: Rated 690V (IEC) with a 1000V voltage rating for demanding power electronics installations.
- Utilization Category: Class aR (accompanied semiconductor protection) for coordinated protection of semiconductor devices.
- Fuse Shape: Square body construction with offset bolted tags for a compact, secure mounting footprint.
- Application: Purpose-built for semiconductor protection in power conversion and drive systems.
- Terminal Design: Bolted tag terminals; not equipped with insulated metal gripping lugs (IMGL).
- Packaging: Available in standard packaging for straightforward stocking and replacement.
Technical Specifications
- Amperage Rating: 500 A
- Application: semiconductor protection
- Compliances: Contact factory
- Fuse Shape: Square body, offset bolted tags
- Insulated Metal Gripping Lugs (IMGL): No
- Packaging Type: Standard
- Product Height: 52 mm
- Product Length/Depth: 265 mm
- Product Weight: 295 g
- Product Width: 104 mm
- Utilization Category: aR (accompanied semiconductor protection)
- Voltage Rating: 1000 V
- Voltage Type: DC
Typical Applications
- Semiconductor Protection Circuits
- Power Electronics and Variable Frequency Drives
- Rectifier and Converter Circuits
- Industrial Power Conversion Equipment
Why Bussmann?
The Bussmann 170M1833 carries the Eaton Bussmann series name behind its Class aR, high-speed square body design, giving electrical professionals a fuse purpose-built for coordinated semiconductor protection. Its 500A, 690V (IEC) rating and offset bolted-tag square body construction make it a dependable choice for power electronics and drive systems where accompanied semiconductor protection is required.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 500 A
- Application:
- semiconductor protection
- Class:
- Class aR
- Compliances:
- Contact factory
- Fuse Shape:
- Square body, offset bolted tags
- Insulated Metal Gripping Lugs Imgl:
- No
- Packaging Type:
- Standard
- Product Height:
- 52 mm
- Product Length Depth:
- 265 mm
- Product Weight:
- 295 g
- Product Width:
- 104 mm
- Utilization Category:
- aR (accompanied semiconductor protection)
- Voltage Rating:
- 1000 V
- Voltage Type:
- DC
- Product Group:
- Fuses
- Department:
- Electrical
- Product Subgroup:
- Other Fuses
- Product Type:
- Fuse
- Product Details:
- Fuse
