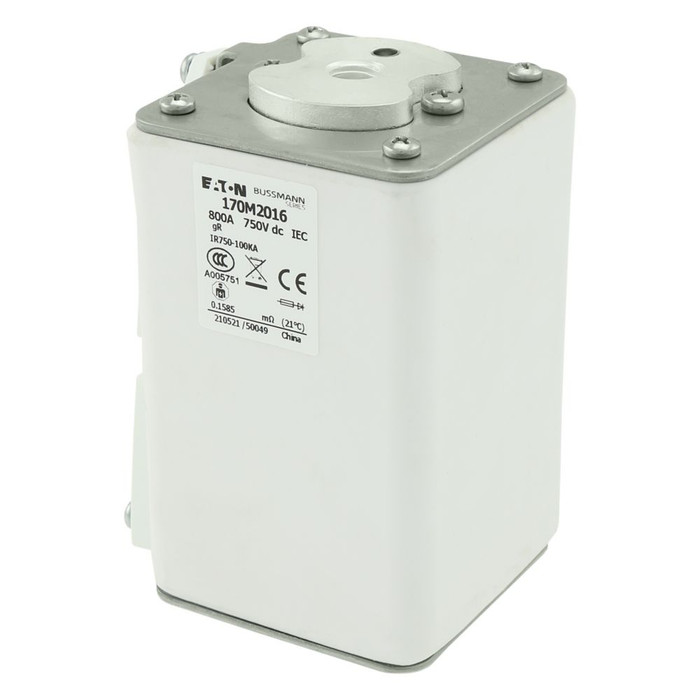

Bussmann 170M2016 High-Speed Traction Fuse, Class gR, 750V, 800A

Bussmann 170M2016 High-Speed Traction Fuse, Class gR, 750V, 800A

(No reviews yet) Write a Review

Model: 170M2016

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,434.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann 170M2016 High-Speed Traction Fuse, Class gR, 750V, 800A

The Bussmann 170M2016 is an Eaton Bussmann series high-speed traction fuse engineered as a Flush End Fuse Link for demanding traction and third-rail power distribution systems. Rated 750V and 800A with a 110 kAIC interrupt rating, this Class gR fuse delivers general purpose semiconductor protection in a rugged square-body, flush-end-contact design. Built for high-current DC traction circuits, it provides fast-acting overcurrent protection where reliable performance is critical.

Key Features

  • Compact, Rugged Footprint: Square-body construction measuring 250 mm (L) x 180 mm (W) x 150 mm (H) and weighing 2294 g, built for demanding traction fuse enclosures.
  • Flush End Fuse Link: Square body with flush end contacts for a secure, low-resistance connection in compatible traction fuse holders.
  • High-Speed Traction Rating: Rated 750V and 800A with a 110 kAIC interrupt rating for fast-acting protection in high-current DC traction circuits.
  • Class gR Utilization Category: Utilization category gR provides general purpose semiconductor protection for power semiconductor devices.
  • Rated Switching Capacity: 110 A rated switching capacity supports controlled circuit interruption during fault conditions.
  • Traction and Third-Rail Application: Purpose-built for traction and third-rail electrical systems requiring robust, reliable fault protection.

Technical Specifications

  • Amperage Rating: 800 A
  • Application: traction | third rail
  • Certifications: Not Applicable
  • Compliances: Contact Manufacturer
  • Fuse Shape: Square body, flush end contacts
  • Packaging Type: Standard
  • Product Height: 150 mm
  • Product Length Depth: 250 mm
  • Product Weight: 2294 g
  • Product Width: 180 mm
  • Rated Switching Capacity: 110 A
  • Utilization Category: gR (general purpose semiconductor protection)
  • Voltage Rating: 750 V
  • Voltage Type: DC

Typical Applications

  • Traction Power Distribution Systems
  • Third-Rail Electrification
  • High-Speed DC Traction Circuits
  • Power Semiconductor Protection
  • Rail and Transit Electrical Infrastructure

Why Bussmann?

Bussmann by Eaton engineers the 170M2016 as part of its high-speed traction fuse series, combining a flush end fuse link design with a 110 kAIC interrupt rating and Class gR utilization for dependable semiconductor protection. This construction helps traction and third-rail systems maintain reliable, code-compliant performance in demanding professional electrical applications.

Manufacturer Resources

Product Specs

Amperage Rating:
800 A
Application:
traction | third rail
Certifications:
Not Applicable
Class:
Class gR
Compliances:
Contact Manufacturer
Fuse Indicator:
Other
Fuse Shape:
Square body, flush end contacts
Interrupt Rating:
110 kAIC
Packaging Type:
Standard
Product Height:
150 mm
Product Length Depth:
250 mm
Product Weight:
2294 g
Product Width:
180 mm
Rated Switching Capacity:
110 A
Special Features:
Flush End Fuse Link
Utilization Category:
gR (general purpose semiconductor protection)
Voltage Rating:
750 V
Voltage Type:
DC
Product Group:
Fuses
Department:
Electrical
Product Subgroup:
Other Fuses
Product Type:
Fuse
Product Details:
Fuse
