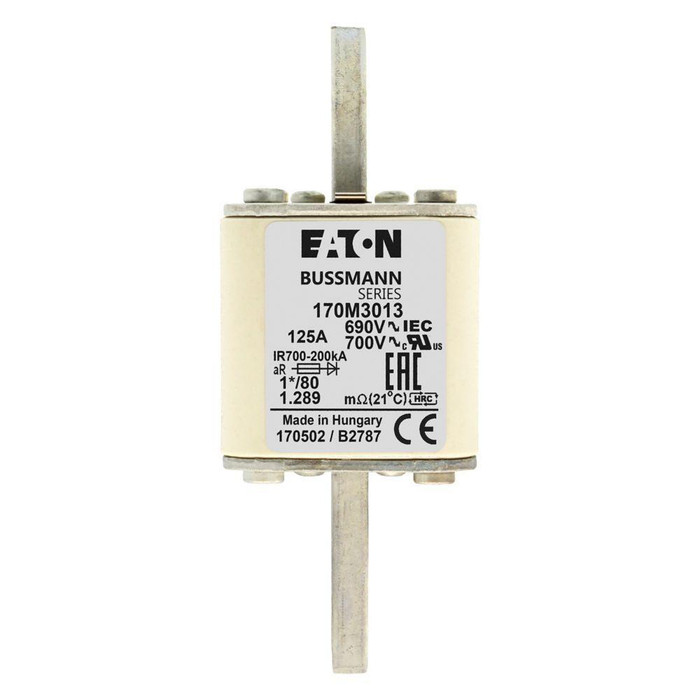

Bussmann 170M3013 Eaton Series High-Speed Square Body Fuse, 125A Class aR

Bussmann 170M3013 Eaton Series High-Speed Square Body Fuse, 125A Class aR

(No reviews yet) Write a Review

Model: 170M3013

In Stock (leaves warehouse same day if ordered before 3pm ET)

$748.55
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann 170M3013 Eaton Series High-Speed Square Body Fuse, 125A Class aR

The Bussmann 170M3013 is an Eaton series high-speed square body fuse engineered for semiconductor protection in demanding industrial power circuits. Rated 700V (UL) / 690V (IEC) with a 125A amperage rating and a 200 kAIC interrupt rating, this Class aR fuse is built to DIN 43 620 dimensions with blade end x blade end connections for reliable mounting in high-speed fuse holders. A top fuse status indicator provides quick visual confirmation of fuse condition, and the fuse is UL Recognized for use in professional electrical and industrial equipment.

Key Features

  • Amperage Rating: 125A for high-speed semiconductor circuit protection.
  • Voltage Rating: 700V (UL) / 690V (IEC) AC for demanding industrial power applications.
  • Interrupt Rating: 200 kAIC delivers high short-circuit current interrupting capacity.
  • Class aR Utilization Category: Accompanied semiconductor protection rating designed to safeguard sensitive power semiconductors.
  • Connection: Blade end x blade end terminals on a square body per DIN 43 620 dimensions for compatibility with standard high-speed fuse mounts.
  • Fuse Shape: Square body with slotted center bolted tags for secure, low-resistance connections.
  • Status Indicator: Top fuse status indicator allows quick visual verification of fuse condition without disconnecting circuits.

Certifications & Compliance

  • UL Recognized
  • CE Marked

Technical Specifications

  • Amperage Rating: 125 A
  • Application: semiconductor protection
  • Certifications: UL Recognized
  • Clearing I2t: 3700 at 660 V
  • Clearing Loss: 26
  • Compliances: CE Marked
  • Fuse Shape: Square body, slotted center bolted tags
  • Insulated Metal Gripping Lugs (IMGL): No
  • Packaging Type: Standard
  • Pre Arc I2t: 550
  • Product Height: 65 mm
  • Product Length Depth: 305 mm
  • Product Weight: 352.3333333 g
  • Product Width: 145 mm
  • Utilization Category: aR (accompanied semiconductor protection)
  • Voltage Rating: 690 V
  • Voltage Type: AC

Typical Applications

  • Semiconductor Protection Circuits
  • High-Speed Industrial Power Distribution
  • Power Converter and Rectifier Protection
  • Motor Drive and Control Panel Applications
  • Industrial Equipment Requiring Class aR Fuse Protection

Why Bussmann?

Bussmann by Eaton is a trusted name in circuit protection, and the 170M3013 reflects that standard with UL Recognized, CE Marked construction built to DIN 43 620 specifications. Its square body design, slotted center bolted tags, and top fuse status indicator make installation and inspection straightforward for electrical professionals. Choose the Bussmann 170M3013 for dependable, code-compliant semiconductor protection in demanding industrial environments.

Manufacturer Resources

Product Specs

Amperage Rating:
125 A
Application:
semiconductor protection
Certifications:
UL Recognized
Class:
Class aR
Clearing I2t:
3700 at 660 V
Clearing Loss:
26
Compliances:
CE Marked
Connection:
Blade end x blade end
Fuse Indicator:
Top fuse status indicator
Fuse Shape:
Square body, slotted center bolted tags
Insulated Metal Gripping Lugs Imgl:
No
Interrupt Rating:
200 kAIC
Mounting Method:
DIN 43 620
Packaging Type:
Standard
Pre Arc I2t:
550
Product Height:
65 mm
Product Length Depth:
305 mm
Product Weight:
352.3333333 g
Product Width:
145 mm
Utilization Category:
aR (accompanied semiconductor protection)
Voltage Rating:
690 V
Voltage Type:
AC
Product Group:
Fuses
Department:
Electrical
Product Subgroup:
Other Fuses
Product Type:
Fuse
Product Details:
Fuse
