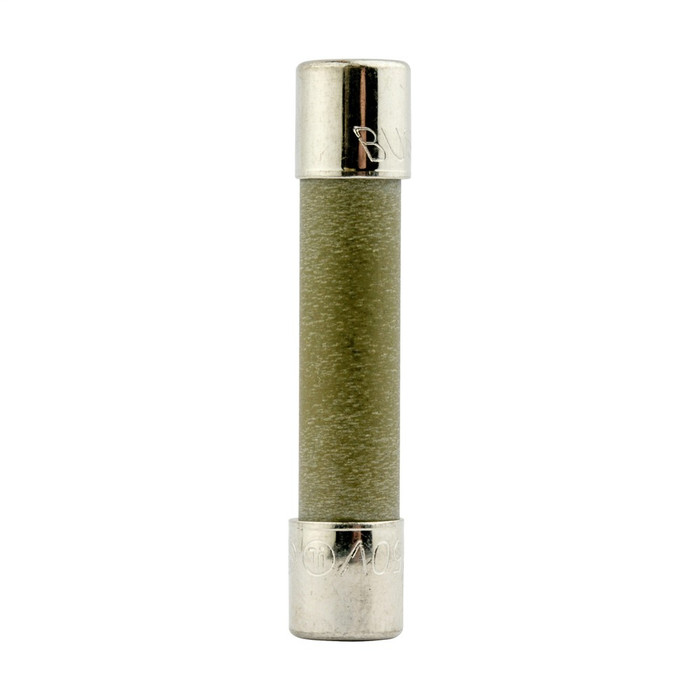

Bussmann ABC-30-R Series Fast-Acting Small-Dimension Fuse, 125V

Bussmann ABC-30-R Series Fast-Acting Small-Dimension Fuse, 125V

(No reviews yet) Write a Review

Model: ABC-30-R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann ABC-30-R Series Fast-Acting Small-Dimension Fuse, 125V

The Bussmann ABC-30-R is a fast-acting, small-dimension fuse manufactured as part of the Eaton Bussmann series, a well-known line of circuit protection products used across residential, commercial, and industrial electrical systems. Rated for 125V circuits, this fast-acting fuse is engineered to respond quickly to overcurrent conditions, helping to safeguard connected wiring, components, and equipment from damage caused by short circuits or current surges. The small-dimension form factor of the ABC-30-R allows it to be used in compact fuse holders, panels, and equipment enclosures where standard-size fuses will not fit. Whether specified for a new installation or used as a direct replacement in an existing 125V circuit, the ABC-30-R offers electricians, panel builders, and maintenance technicians a dependable option from the trusted Eaton Bussmann series.

Key Features

  • Fast-Acting Response: The ABC-30-R is a fast-acting (quick-blow) fuse designed to open the circuit rapidly once current exceeds its rated threshold, helping protect downstream wiring and components from damage during a fault.
  • Small-Dimension Form Factor: This fuse is manufactured in a small-dimension body style, making it well suited for equipment, control panels, and enclosures where physical space is limited.
  • 125V Rating: Rated for 125V circuits, the ABC-30-R is intended for use in low-voltage power and control applications that call for a compact, fast-acting fuse.
  • Eaton Bussmann Series Construction: Manufactured as part of the Eaton Bussmann series, the ABC-30-R reflects the engineering and manufacturing standards associated with the broader Bussmann fuse portfolio.
  • Reliable Overcurrent Protection: As a fuse, the ABC-30-R is designed to be the sacrificial link in a circuit, opening to interrupt current flow and helping protect more costly downstream components and wiring when an overcurrent condition occurs.
  • Compact Fuse Holder Compatibility: The small-dimension body style of the ABC-30-R is sized to install into fuse holders and fuse blocks designed for small-dimension fuses, simplifying installation in tight spaces.
  • Model ABC-30-R Identification: The ABC-30-R designation allows for accurate identification, cross-reference, and replacement when specifying or reordering this fast-acting fuse.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Overcurrent Protection in 125V Circuits
  • Electronic and Electrical Control Equipment
  • Low-Voltage Power Supplies
  • Panel-Mounted and Space-Constrained Fuse Holders
  • Instrumentation and Control Circuits
  • Replacement and Maintenance of Existing Bussmann Fuse Installations

Why Bussmann?

Bussmann is a long-established name in circuit protection, and the ABC-30-R fast-acting fuse carries that reputation forward as part of the Eaton Bussmann series. Its fast-acting design and small-dimension construction make it a reliable, space-efficient choice for 125V overcurrent protection in professional electrical and electronic applications. Specifying the ABC-30-R means choosing a fuse built to the consistent engineering standards of the Bussmann product line, backed by the Eaton Bussmann series name that electricians and technicians recognize.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
BUSS-20260919
Product Type:
Fast-Acting Fuse
Voltage Rating:
125V
Series:
ABC
Department:
Electrical
Product Subgroup:
Fuses
Product Group:
Circuit Protection
Product Material:
Ceramic tube, nickel-plated brass endcaps
Product Length:
0.25 in
Product Height:
1.25 in
Product Width:
0.25 in
Product Diameter:
0.25 in
Amperage Rating:
30A

Bussmann ABC-30-R – Frequently Asked Questions

1) What voltage is the Bussmann ABC-30-R fuse rated for?
The ABC-30-R carries a 125V rating, so it belongs in low-voltage power and control circuits. Do not drop it into a higher-voltage circuit on the assumption that an ABC body style is interchangeable across voltages; the voltage rating is the limit on where a fuse can safely interrupt a fault.
2) Is the ABC-30-R a fast-acting or time-delay fuse?
Fast-acting, sometimes called quick-blow. The ABC-30-R opens rapidly once current passes its rated threshold, which suits instrumentation, control circuits and electronic equipment where downstream components will not survive a prolonged overload. If the load has a heavy inrush at startup, such as a motor or a transformer, a fast-acting fuse will nuisance-trip and a time-delay type is the right choice instead.
3) Will the ABC-30-R fit a standard fuse block, or does it need a special holder?
It is a small-dimension fuse, so it goes into holders and fuse blocks built for small-dimension bodies, not into holders sized for standard-size cartridge fuses. That is what makes it workable in control panels and tight equipment enclosures, but it also means a holder meant for a larger class of fuse will not retain it.
4) Can I use the ABC-30-R as a direct replacement for an existing Bussmann ABC fuse?
Yes, where the fuse coming out is an ABC-30-R. It is part of the Bussmann ABC series and is intended both for new installations and as a direct replacement in an existing 125V circuit. Match the printed designation on the old fuse end cap before ordering, since an ABC-numbered fuse of a different ampere designation is not the same part.
5) What is the manufacturer part number for the Bussmann ABC-30-R?
Order it as ABC-30-R, an Eaton Bussmann part. That designation is what you use for cross-reference and reorder, and the UPC on the carton is 051712542487.
6) Where is the ABC-30-R typically used on the job?
Typical placements are overcurrent protection in 125V circuits, electronic and electrical control equipment, low-voltage power supplies, instrumentation and control circuits, and panel-mounted holders where space is constrained. For MRO stock it is also used to keep existing Bussmann fuse installations running without redesigning the holder.
7) Where do I get the full electrical specs for the Bussmann ABC fuse?
Eaton publishes a spec sheet PDF for the ABC series, and that document carries the detailed electrical data behind the 125V rating. The data held here covers the essentials for ordering: Bussmann ABC series, fast-acting, small-dimension body, 125V.
