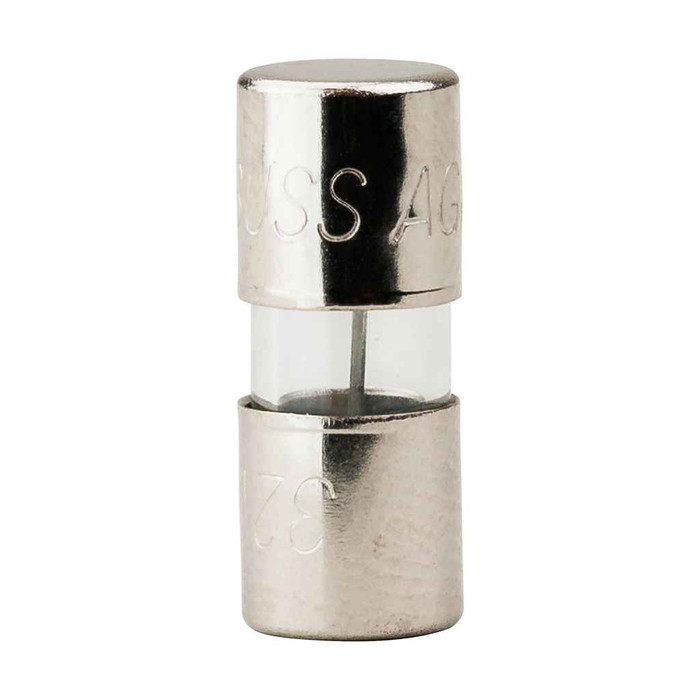

Bussmann AGA Series Fast-Acting Ferrule Fuse, Non-Indicating

Bussmann AGA Series Fast-Acting Ferrule Fuse, Non-Indicating

(No reviews yet) Write a Review

Model: AGA-20

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann AGA Series Fast-Acting Ferrule Fuse, Non-Indicating

The Bussmann AGA Series is an Eaton Bussmann fast-acting fuse built for electronic circuit protection, available across the family in 6A, 7A, 20A, and 25A ratings to match the load. Each fuse in the AGA series is rated 125 Vac, 32 Vdc with a 1 kAIC interrupt rating at 32 Vac, features ferrule end x ferrule end terminations, and uses a compact electronic-small dimension form factor suited to space-constrained assemblies. The non-indicating design provides straightforward fast-acting overcurrent protection for electronic circuits without a blown-fuse indicator.

Key Features

  • Amp Rating Range: Available in 6A, 7A, 20A, and 25A ratings across the AGA series to fit a range of electronic circuit loads.
  • Ferrule End Connection: Ferrule end x ferrule end terminations for direct fit into ferrule-style fuse holders and clips.
  • Voltage Rating: Rated 125 Vac, 32 Vdc for electronic and low-voltage circuit protection applications.
  • Interrupt Rating: 1 kAIC at 32 Vac for dependable interruption performance under fault conditions.
  • Fast-Acting Response: Fast-acting element responds quickly to overcurrent and short-circuit conditions to help protect sensitive electronic components.
  • Non-Indicating Design: Standard non-indicating construction for straightforward circuit protection without a blown-fuse indicator window.
  • Compact Electronic Form: Electronic-small dimension sizing for use in space-constrained electronic assemblies and equipment.
  • Packaging: Standard packaging type for straightforward stocking and handling.

Technical Specifications

  • Connection: Ferrule end X ferrule end
  • Packaging Type: Standard
  • Application: Electronic circuits
  • Product Details: Electronic- small dimension
  • Fuse Indicator: Non Indicating
  • Product Type: Electronic- small dimension
  • Voltage Rating: 125 Vac, 32 Vdc
  • Interrupt Rating: 1 kAIC at 32 Vac

Typical Applications

  • Electronic Circuit Protection
  • Circuit Board Level Fusing
  • Low-Voltage Electronic Equipment
  • Control and Signal Circuit Protection
  • OEM Electronic Assemblies

Why Bussmann?

Bussmann, an Eaton brand, engineers the AGA series for consistent fast-acting response and dependable ferrule end connections across its full range of amp ratings. With a defined 125 Vac, 32 Vdc voltage rating and 1 kAIC interrupt rating in a compact electronic-small dimension package, these fuses give electronic equipment builders a straightforward, non-indicating protection option they can standardize on across circuit designs.

Manufacturer Resources

Product Specs

Connection:
Ferrule end X ferrule end
Packaging Type:
Standard
Application:
Electronic circuits
Department:
Electrical
Product Group:
Fuses
Product Details:
Electronic- small dimension
Fuse Indicator:
Non Indicating
Product Type:
Fuse
Voltage Rating:
125 Vac, 32 Vdc
Product Subgroup:
Other Fuses
Interrupt Rating:
1 kAIC at 32 Vac
Connection Type:
Ferrule End
Amperage Rating:
6A - 25A

Bussmann AGA-20 – Frequently Asked Questions

1) What amp ratings does the Bussmann AGA fuse come in?
The AGA series covers 6A to 25A, and four ratings are offered: AGA-6, AGA-7, AGA-20 and AGA-25. Pick the rating against the circuit load you are protecting, not against the holder size, since all four share the same ferrule end x ferrule end body.
2) Is the AGA a fast-acting or time-delay fuse, and which should I use on an electronic board?
Fast-acting. The AGA element clears quickly on overcurrent and short circuit, which is what you want ahead of semiconductors, control boards and signal circuits that cannot ride out a fault. If your load has a heavy inrush (motors, transformers, capacitive supplies), a fast-acting fuse will nuisance blow and a time-delay type is the better choice.
3) Does the AGA fuse have a blown-fuse indicator?
No, it is a non-indicating fuse. There is no indicator window or pin, so troubleshooting means pulling the fuse and checking continuity. If your maintenance crew needs to spot an open fuse at a glance in a panel, specify an indicating type instead.
4) What is the interrupting rating on the Bussmann AGA fuse?
1 kAIC at 32 Vac. That is a low interrupting rating suited to board-level and low-energy electronic circuits, so it is not the part for branch circuits or anywhere with high available fault current.
5) Which AGA part number do I order for a 20 amp electronic circuit?
AGA-20 is the 20 amp version. The adjacent ratings are AGA-7 and AGA-25, so if 20A is nuisance blowing on a legitimate steady load the next step up in the family is 25A.
6) Are Bussmann AGA fuses sold in bulk packs or individually?
The AGA series ships in standard packaging, which is the usual stocking format for these small electronic fuses. For OEM assembly runs, order by the individual amp rating part number you need.
