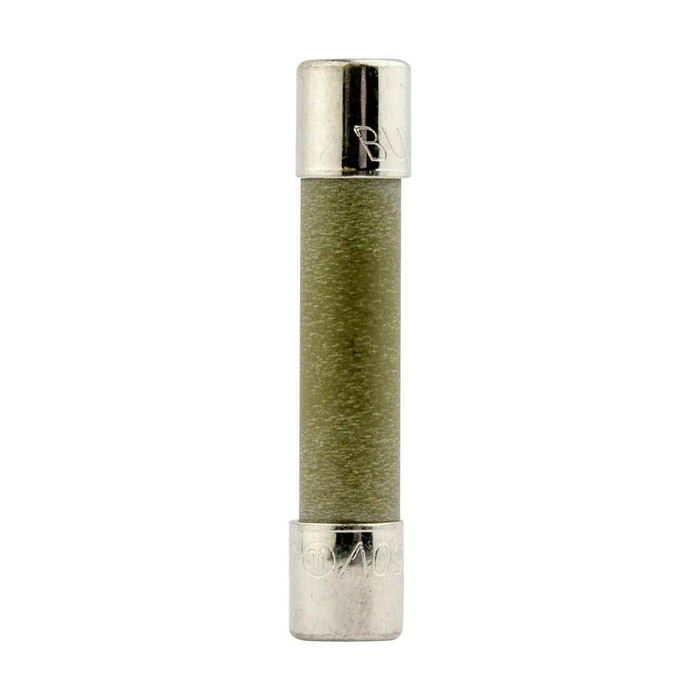

Bussmann BKMDA Series Electronic Time-Delay Ferrule Fuse

Bussmann BKMDA Series Electronic Time-Delay Ferrule Fuse

The Bussmann BKMDA series from Eaton is an electronic time-delay ferrule fuse built with a ceramic tube body and nickel-plated brass endcaps for durable, consistent performance in electronic circuit protection. Measuring .25 IN in diameter and 1.25 IN in length, this ferrule end x ferrule end fuse is designed for electronic circuits and is available in amp ratings from 0.75A to 30A across the BKMDA family. Its time-delay characteristic lets it ride through momentary current surges while still reacting to sustained overcurrent conditions to protect connected equipment.

Key Features

• Compact Dimensions: .25 IN diameter x 1.25 IN length ceramic body sized for standard fuse holders and electronic assemblies.
• Durable Construction: Ceramic tube body with nickel-plated brass endcaps resists heat and supports reliable long-term performance.
• Ferrule End Connection: Ferrule end x ferrule end configuration for secure seating in ferrule-style fuse clips and holders.
• Time-Delay Response: Opens in 60 min. maximum at 135% of rated current and 120 secs. maximum at 200% of rated current, allowing brief inrush without nuisance tripping.
• Amp Rating Range: Available in ratings from 0.75A to 30A to match a wide range of electronic circuit protection needs.
• Non-Indicating Design: Standard non-indicating fuse body for straightforward circuit protection applications.
• Electronic Circuit Application: Engineered specifically for protecting electronic circuits and equipment.

Technical Specifications

• Product Diameter: .25 IN
• Product Width: .25 IN
• Product Length: .25 IN
• Product Height: 1.25 IN
• Material Type: Ceramic tube, nickel-plated brass endcaps
• Connection: Ferrule end X ferrule end
• Product Type: Electronic
• Product Details: Electronic
• Response Time: 60 min. maximum at 135%, 120 secs. maximum at 200%
• Application: Electronic circuits
• Item Quantity: 100
• Product Weight: .4 LB
• Fuse Indicator: Non Indicating
• Packaging Type: Standard

Typical Applications

• Electronic Circuit Protection
• Circuit Boards and Control Modules
• Instrumentation and Test Equipment
• OEM Electronic Assemblies
• Renovation and New Equipment Manufacturing

Why Bussmann?

As part of the Eaton Bussmann series, the BKMDA fuse combines a rugged ceramic tube body with nickel-plated brass endcaps for dependable performance in demanding electronic applications. Bussmann's time-delay engineering helps electronic circuits ride through normal inrush conditions while still reacting to sustained overcurrent, supporting reliable, code-compliant circuit protection for professional and OEM electronic work.
